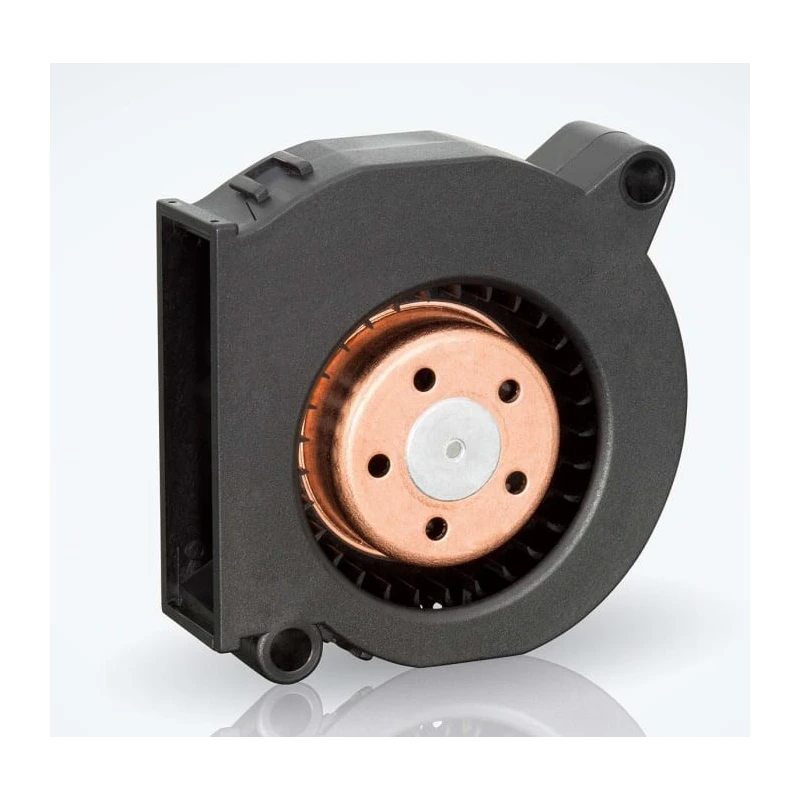

ebm-papst RLF 35 Series Centrifugal Fan 24V DC 9.6 m³/h Airflow 6700 RPM RLF35-8/14N
Specifications
| Country of Origin | India |
|---|---|
| Brand | ebm-papst |
| Blower Type | Centrifugal |
| Height | 51mm |
| Fan Speed | 6700rpm |
| Air Flow | 9.6m³/h |
| Model | RLF35-8/14N |
| Depth | 15mm |
| IP Rating | IP20 |
| Noise Level | 55dB |
| Width | 51mm |
| Static Pressure | 170Pa |
| Series | RLF 35 |
| Terminal type | Wire |
| Supply Voltage | 24V dc |
| Bearing Type | Ball |
| Standards/Approvals | VDE, CSA, EN, RoHS, CE, EAC, CCC, ISO, UL |
| AC or DC Operation | DC |
| Commutation Type | Electronic |
| Mounting Hole Diameter | 4.3 mm |
Key Features
- Operates at a supply voltage of 24V DC for stable performance.
- Delivers an air flow rate of 9.6 cubic meters per hour.
- Fan speed reaches up to 6700 RPM ensuring effective ventilation.
- Constructed with fiberglass-reinforced plastic housing and impeller for durability.
- Features ball bearing construction for long-lasting operation.
- Includes electronic commutation type with integrated motor electronics.
- Provides a static pressure of 170 Pa suitable for moderate pressure build-up needs.
- Designed with an IP20 rating for protection against solids.
Product Description
ebm-papst RLF35-8/14N centrifugal fan is a 24V DC radial blower known for its compact design and high-efficiency air movement. This fan is equipped with an electronically commutated external rotor motor featuring fully integrated commutation electronics that ensure reliable operation and protection against reverse polarity. Its robust construction consists of a fibreglass-reinforced plastic housing and impeller, providing durability and resistance to mechanical stress.
The fan's airflow is axial intake with centrifugal exhaust, leveraging a forward-curved impeller. It achieves an air flow rate of 9.6 m³/h at a speed of 6700 RPM, generating a static pressure of 170 Pa suitable for applications requiring moderate pressure build-up.
Featuring ball bearing construction, the fan offers extended life and enhanced operational stability. The electrical connection utilizes two 22 AWG wires with stripped and tinned ends for straightforward installation. With an IP20 ingress protection rating and a noise level of 55 dB, it is appropriate for use in a variety of environments including industrial ventilation, HVAC systems, electronic cooling, medical equipment, and household appliances.
The compact size (51 mm width, 51 mm height, and 15 mm depth) allows integration into systems with space constraints. The mounting hole diameter measures 4.3 mm, accommodating standard fixtures.
This centrifugal fan complies with major international standards and approvals including VDE, CSA, EN, RoHS, CE, EAC, CCC, ISO, and UL, affirming its quality and safety benchmarks.
Applications of the ebm-papst RLF35 series centrifugal fan span central air conditioning units, building ventilation, automotive cooling, railway systems, electronic products, medical treatment, refrigeration systems, household ventilation, and air conditioning.
Operates at 24V DC supply voltage for stable and efficient performance. Compact dimensions accommodate tight spaces in industrial and commercial systems. Fiberglass-reinforced plastic housing and impeller for durability and resistance.
Ball bearing design enhances operational lifespan and reduces maintenance. Backward curved centrifugal fan design suitable for moderate pressure requirements. Electronic commutation ensures efficient motor control and protection.
Complies with global safety and environmental standards. Quiet operation with a noise level of 55 dB. Easy electrical connection with tinned wire leads. Explore more industrial cooling and ventilation products in the Centrifugal Fan category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an airflow rate of 9.6 cubic meters per hour.
It operates at a fan speed of 6700 RPM.
The fan generates a static pressure of 170 Pa, suitable for moderate pressure build-up needs.
This unit operates at a supply voltage of 24V DC.
The fan has a width and height of 51 mm and a depth of 15 mm.
It features a ball bearing construction for enhanced operational lifespan.
The noise level is rated at 55 dB during operation.
It has an IP20 rating, providing protection against solid objects.
This model utilizes electronic commutation with integrated motor electronics.
The mounting hole diameter is 4.3 mm, accommodating standard fixtures.
It complies with several international standards including VDE, CSA, EN, RoHS, CE, EAC, CCC, ISO, and UL.
This centrifugal fan is suitable for applications such as HVAC systems, electronic cooling, and building ventilation.
