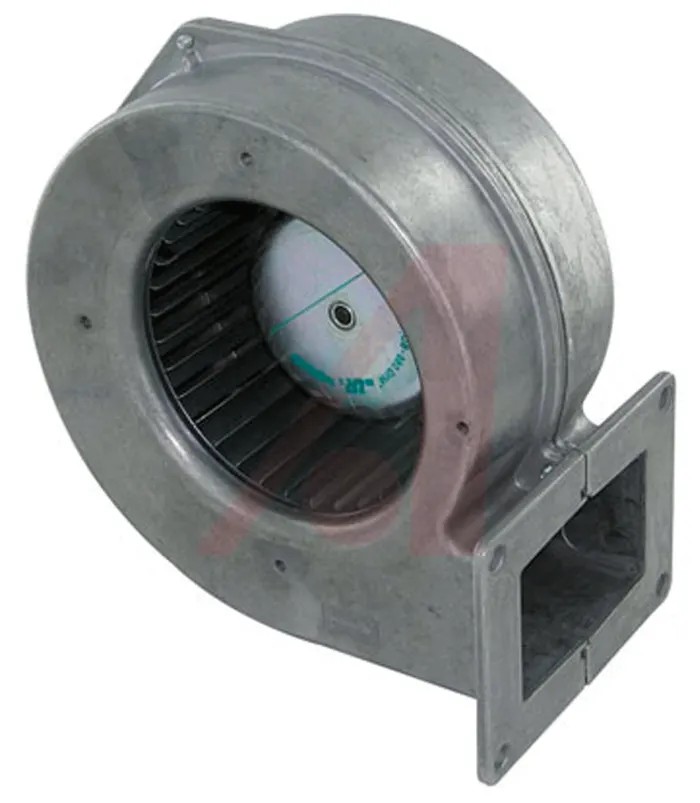

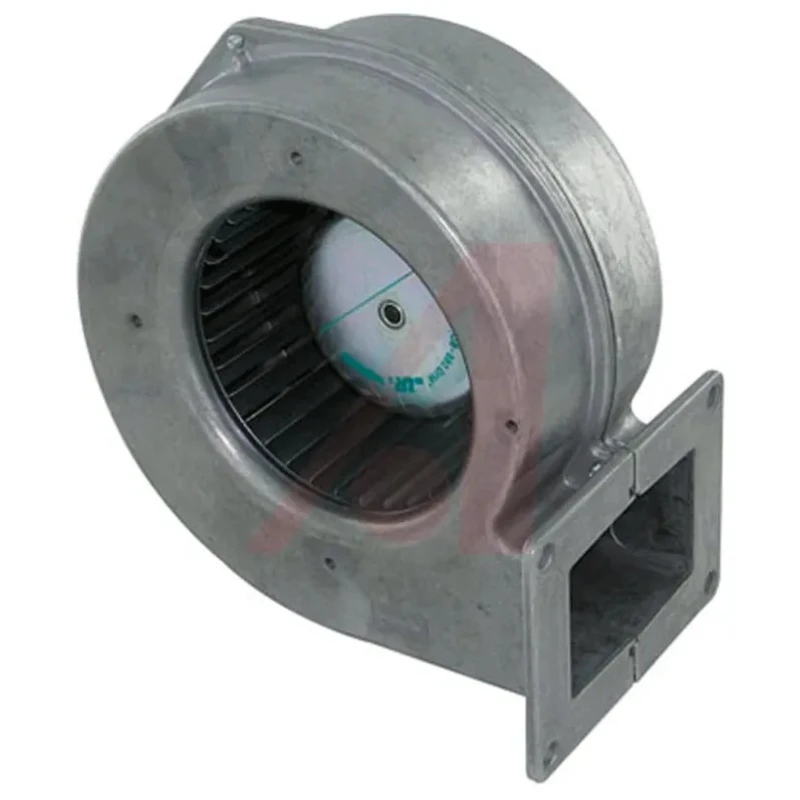

ebm-papst 24V DC Centrifugal Fan, 270 m³/h Air Flow, 2200 rpm, Ball Bearing, PWM Sensor Output, 184 mm Height G1G120-AB67-02
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ebm-papst |
| Blower Type | Centrifugal |
| Height | 184mm |
| Fan Speed | 2200rpm |
| Air Flow | 270m³/h |
| Model | G1G120-AB67-02 |
| IP Rating | IP22 |
| Noise Level | 62dBA |
| Static Pressure | 0Pa |
| Series | G1G 120 |
| Inlet Diameter | 120mm |
| Supply Voltage | 24V dc |
| Bearing Type | Ball |
| Standards/Approvals | CSA, ISO, EN, EAC, UL, RoHS |
| AC or DC Operation | DC |
| Commutation Type | Electronic |
| Sensor Output Type | PWM |
Key Features
- The fan features a high-pressure, backwards-curved long blade for efficient air movement.
- It operates at a low noise level of 62 dBA suitable for industrial and automotive use.
- Ball bearing type ensures long service life and reliable performance.
- Includes a PWM sensor output for precise speed control.
- Constructed with fiberglass-reinforced impeller resistant to dust and dirt.
- Equipped with an energy-efficient electronic commutation motor.
- Designed for DC operation with an inlet diameter of 120 mm and a height of 184 mm.
- Complies with international standards including CSA, ISO, EN, EAC, UL, and RoHS.
Product Description
ebm-papst G1G120-AB67-02 Centrifugal Fan is a 24V DC-powered, single-inlet blower designed for industrial, automotive, central air conditioning, and building ventilation applications. Its robust design employs a backwards-curved long blade impeller that delivers an airflow of 270 m³/h at a fan speed of 2200 rpm with high hydraulic efficiency and resistance to dust and dirt.
The fan runs on an energy-efficient, electronically commutated motor equipped with a ball bearing system to guarantee long service life and quiet operation at 62 dBA noise level. The PWM sensor output ensures precise speed control for optimized system performance.
Featuring a fiberglass-reinforced impeller, the fan is suitable to operate in environments where durability and maintenance resistance are critical factors. Its design includes a 120 mm inlet diameter and an overall height of 184 mm, making it adaptable to various HVAC and ventilation system designs.
Compliance with stringent international standards such as CSA, ISO, EN, EAC, UL, and RoHS ensures reliability and quality. The IP22 rating protects the fan against solid objects larger than 12.5 mm and dripping water, fitting it for use in controlled industrial environments.
The fan is ideal for industrial machinery cooling, HVAC systems, automotive ventilation, and other applications requiring efficient, long-life centrifugal air movement. Its safer DC voltage operation provides enhanced safety in sensitive electrical installations.
Applications include central air conditioning units, building ventilation systems, automotive cooling, and industrial exhaust systems. Explore more products in the Industrial Coolers Blowers & Fans category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an airflow capacity of 270 m³/h.
It operates on a supply voltage of 24V DC.
The fan speed is rated at 2200 rpm.
The fan has a height of 184 mm and an inlet diameter of 120 mm.
It features a ball bearing system, which ensures reliable performance and long service life.
The noise level is measured at 62 dBA, making it suitable for industrial and automotive use.
The fan has an IP22 rating, which protects it against solid objects larger than 12.5 mm and dripping water.
It is equipped with an energy-efficient electronically commutated motor.
It is designed for industrial machinery cooling, HVAC systems, automotive ventilation, and building ventilation applications.
Yes, it includes a PWM sensor output for precise speed control.
It complies with several international standards including CSA, ISO, EN, EAC, UL, and RoHS.
The fan is manufactured in Germany.
