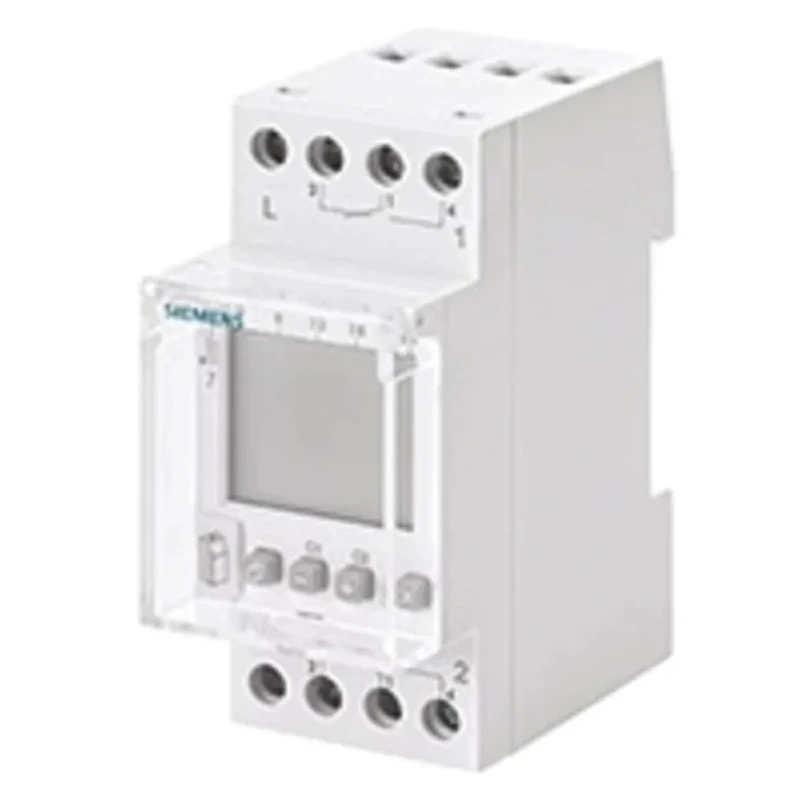

Siemens Digital SENTRON DIN Rail Time Switch 2-Channel 230V AC 7LF4522-0

Siemens 7LF4522-0 Digital SENTRON DIN Rail Time Switch is a robust 2-channel digital timer switch designed for integration into industrial automation systems and process control applications. Operating at 230V AC, this device enables precise and versatile timing control essential for synchronized equipment operation.

The time switch supports a variety of time measurements including hours, seconds, and minutes, with a 24-hour segment length and 28 memory spaces to store complex weekly programs. Each channel can accommodate up to 56 programmable options, allowing for vacation modes, random activation, and detailed cycle functions, making it highly adaptable to diverse operational schedules.

Designed for DIN rail mounting, the compact unit measures 83mm in height and 70mm in depth, suitable for space-efficient industrial enclosures. The contact configuration is a single pole double throw (SPDT), providing reliable switching capabilities within automated setups.

The switch includes advanced features such as an operating hours counter with a range of up to 65535 hours, synchronization at both 50 Hz and 60 Hz frequencies, automatic daylight-saving time adjustments, and an expert mode to support sophisticated programming. A channel changeover function further enhances flexibility for dual-channel control.

Certified to meet EAC, RoHS, VDE, and CE standards, the Siemens SENTRON digital time switch ensures compliance with industry safety and environmental requirements. Additional programmability can be accessed via PC using proprietary software and an optional USB adapter, facilitating easy customization of timing parameters.

This device is ideal for use in industrial automation, process control systems, HVAC management, water treatment facilities, and other commercial applications requiring reliable and programmable timing control.

Enhance your automation setup with Siemens reliability and precision offered through the 7LF4522-0 Time Switch. For more products in the Siemens SENTRON series and related automation solutions, explore the EnvMart catalog to find compatible and complementary automation equipment.

The device supports digital operation with 28 memory spaces for program storage. Measures time units in hours, seconds, and minutes, facilitating versatile scheduling. Includes 24-hour segment length with SPDT contact configuration ensuring reliable switching.

Offers a weekly program with 56 programmable options per channel including vacation and random programs. Equipped with an operating hours counter with counting range up to 65535 hours for maintenance tracking. Supports synchronization at 50/60 Hz and automatic daylight-saving adjustment for accuracy.

Constructed for installation on DIN rails with compact dimensions of 83mm height and 70mm depth. Compliant with EAC, RoHS, VDE, and CE standards, ensuring safety and reliability. Includes a channel changeover function and expert mode for advanced programming needs.

Programming can be enhanced via PC with optional USB adapter and software, improving usability.
