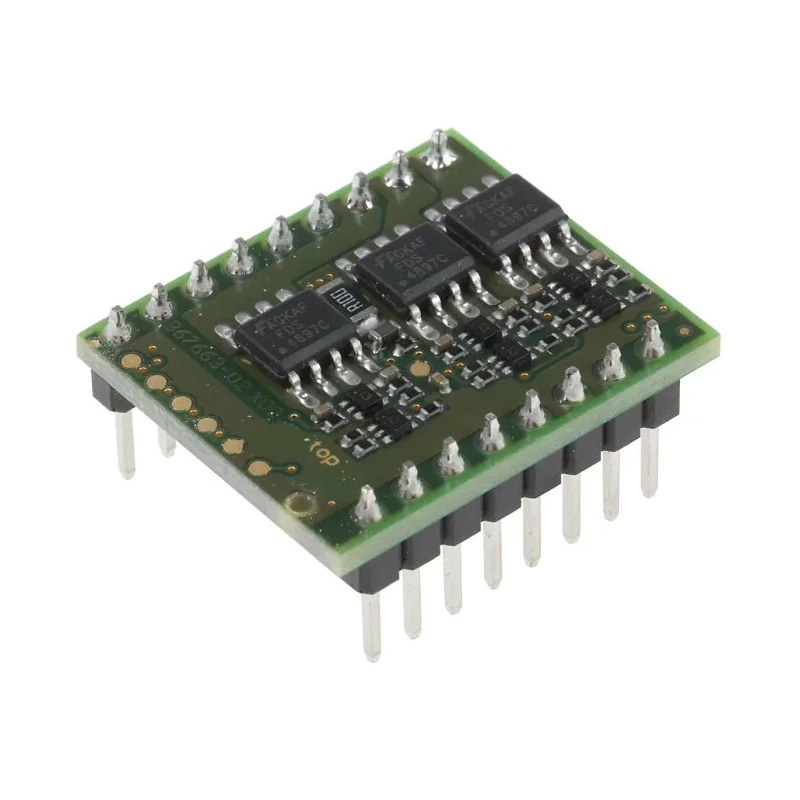

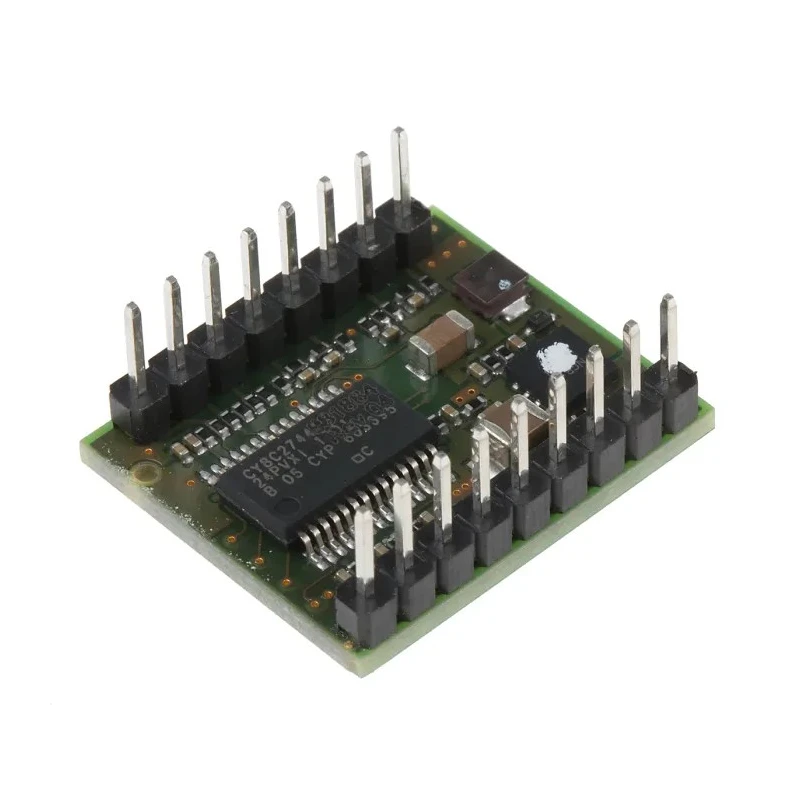

Maxon DC Motor Controller with Amplifier Function 24V DC Output, 3A Current Rating 367661
Specifications
| Country of Origin | China |
|---|---|
| Brand | Maxon |
| Model | 367661 |
| Overall Length | 24.2mm |
| Current Rating | 3A |
| Overall Width | 20.38mm |
| Maximum Operating Temperature | 45°C |
| Minimum Operating Temperature | -10°C |
| Output Voltage | 24V dc |
| Supply Voltage | 24, 8V dc |
| Overall Depth | 12.7mm |
| Control Function | Amplifier |
Key Features
- Designed for brushless EC motors up to 48W with digital hall sensors.
- Offers digital speed control functionality.
- Supports open loop control preset by digital signal.
- Adjustable maximum current limitation for motor protection.
- Operates reliably between -10°C to 45°C operating temperatures.
- Manufactured in China with no specific approvals or certifications.
- Functions as a 1-quadrant digital brushless motor amplifier controller.
Product Description
Maxon 367661 DC Motor Controller is a compact digital amplifier designed for controlling brushless EC motors up to 48W power rating. It features an amplifier function with 24V DC output voltage and supports current up to 3A, enabling precise motor control in industrial automation applications.
This controller requires the EC motor to be equipped with digital hall-effect sensors to achieve digital speed control and accurate operation. Open loop control can be preset via a digital signal, providing flexible speed regulation for a variety of motor systems.
The device incorporates adjustable maximum current limitation to safeguard motors and controllers from overload conditions. With physical dimensions of 24.2mm length, 20.38mm width, and 12.7mm depth, it fits compactly into demanding control panels or embedded systems.
Designed to operate within a temperature range from -10°C to 45°C, this motor controller is suitable for diverse electrical and automation environments. It is manufactured in China and adheres to no special external certifications or standards.
Designed for brushless EC motors up to 48W with digital hall sensors. Digital speed control with open loop preset via digital signal. Adjustable maximum current limitation for overload protection. Compact size supporting versatile installation options.
Operating temperature range from -10°C to 45°C. Robust design fit for electrical automation and motor control applications. Manufactured to quality standards in China without additional approvals.
This Maxon motor controller is ideal for industrial drives, laboratory automation, manufacturing controls, and various automation tasks requiring precise brushless motor management.
Discover the comprehensive selection of Motor Controllers and related accessories at EnvMart for reliable and efficient automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this motor controller is 3A.
It provides a 24V DC output voltage.
The operating temperature range is from -10°C to 45°C.
It is designed for brushless EC motors equipped with digital hall-effect sensors.
It supports digital speed control with open loop control preset via a digital signal.
The dimensions are 24.2mm in length, 20.38mm in width, and 12.7mm in depth.
Yes, it incorporates adjustable maximum current limitation for overload protection.
It is suitable for industrial drives, laboratory automation, manufacturing controls, and various automation tasks requiring precise motor management.
This controller can handle motors with a power rating of up to 48W.
Its compact size allows for versatile installation options in control panels or embedded systems.
It is manufactured in China.
It requires a supply voltage of 24V or 8V DC.
