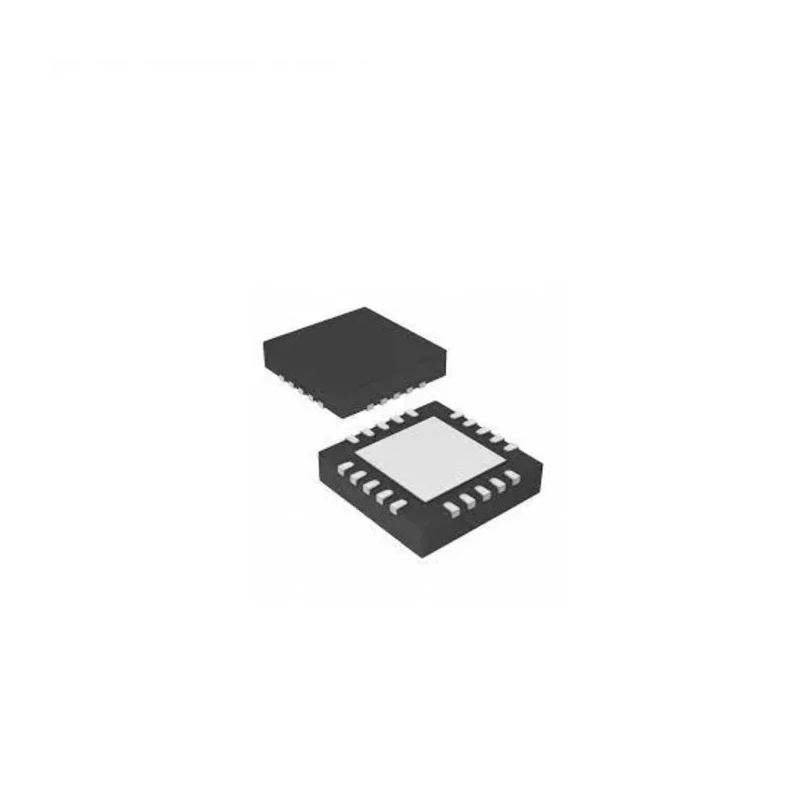

Microchip 8 bit PIC Microcontroller 3.5kB FLASH 20 MHz 20-Pin QFN PIC16F785-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC16F785-I/ML |
| Width | 7.62mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | PWM, I2C, SPI, EUSART |
| Standards/Approvals | RoHS Compliant |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 20 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller features 20 programmable I/Os suitable for various interfacing needs.
- It operates on a wide voltage range from 2.5V to 5.5V.
- Equipped with 128bit RAM and 10-bit ADCs for enhanced data processing.
- Incorporates PWM, I2C, SPI, and EUSART interfaces for flexible communication protocols.
- Built-in protection includes programmable code protection and brown-out reset options.
- Supports power-saving sleep mode and factory calibration with ±1% accuracy.
- Rated for industrial operating temperatures from -40°C to 85°C ensuring reliable performance.
- Compatible with surface mount QFN package, dimension width 7.62mm, and has 3 timers.
Product Description
Microchip PIC16F785-I/ML is a high-performance 8 bit PIC microcontroller featuring 3.5kB of FLASH memory and a maximum clock frequency of 20 MHz. It is housed in a compact 20-pin QFN surface mount package, measuring 7.62mm in width. Designed with a PIC core and RISC instruction set architecture, it supports efficient single-cycle instructions except branches.
This device operates over a wide supply voltage range from 2.5V to 5.5V and is factory calibrated to ±1% for precise timing. It includes 128bit of RAM and 10-bit ADCs enabling effective analog signal processing. The microcontroller offers interfaces including PWM, I2C, SPI, and EUSART, providing compatibility with a variety of communication protocols in embedded systems.
Its robust features include power-saving sleep mode, crystal fail detect, multiplexed master clear with pull-up/input pin, brown out reset with software control, and programmable code protection enhancing device security. With an operating temperature range from -40°C to 85°C, it is suitable for industrial and extended temperature applications.
Ideal for embedded control, industrial automation, and consumer electronics applications, this Microchip PIC microcontroller balances compact size with advanced functionalities. It supports software selectable frequency ranges and multiple timers (3), enabling complex scheduling and timing operations in embedded designs.
This microcontroller has a 20 MHz oscillator/clock input with a 200 ns instruction cycle. Software tunable two-speed start-up mode and clock mode switching contribute to efficient power management. It includes power on reset (POR), power up timer (PWRT), and oscillator start-up timer (OST) for reliable operation initiation.
RoHS compliant to meet environmental standards. Explore the Microchip Microcontroller category for additional embedded solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It operates within a temperature range from -40°C to 85°C, making it suitable for industrial applications.
This microcontroller features 3.5kB of FLASH memory for program storage.
It supports PWM, I2C, SPI, and EUSART interfaces for flexible communication.
The microcontroller operates over a supply voltage range from 2.5V to 5.5V.
This model has 20 programmable I/Os suitable for various interfacing needs.
It is housed in a 20-pin QFN surface mount package, with a width of 7.62mm.
This microcontroller includes 128 bits of RAM for data processing.
It features 3 timers, which can be used for scheduling and timing operations.
The PIC16F785-I/ML is equipped with 10-bit ADCs for effective analog signal processing.
Yes, it is RoHS compliant, meeting environmental standards for hazardous substances.
This microcontroller utilizes a RISC instruction set architecture for efficient processing.
