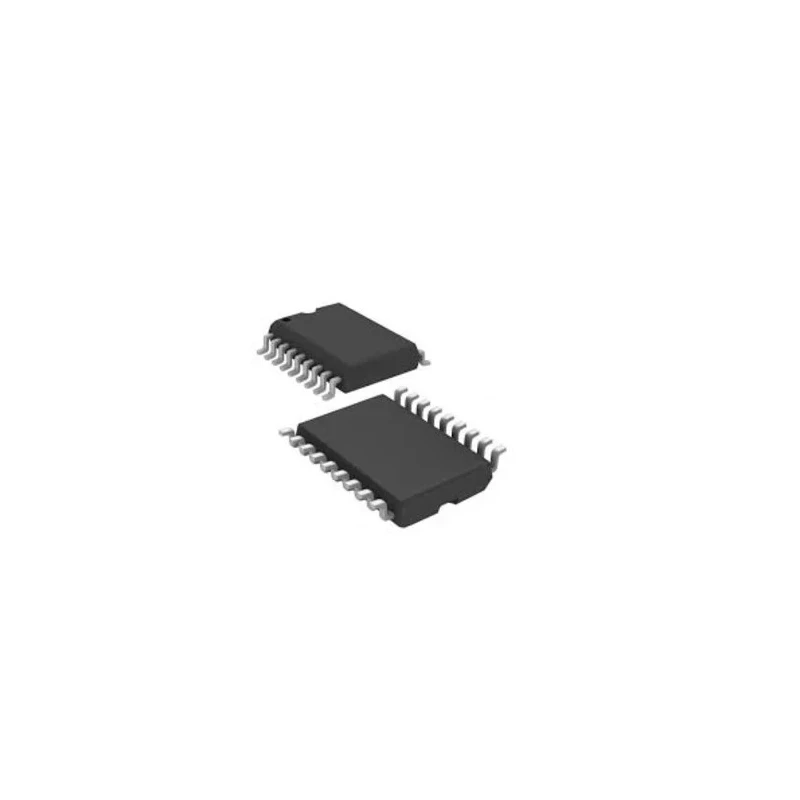

Microchip 8 bit PIC Microcontroller, 3.5kB FLASH, 32 MHz, 18-Pin SOIC PIC16F1826-E/SO

Microchip PIC16F1826-E/SO is an advanced 8 bit PIC microcontroller featuring a 3.5kB FLASH program memory and maximum clock frequency of 32 MHz. It is housed in an 18-Pin SOIC surface mount package which enables compact and reliable integration on circuit boards.

Designed with nanoWatt XLP technology, this microcontroller delivers ultra-low power consumption, making it suitable for battery-operated devices and energy-efficient industrial electronics. Operating voltage ranges from 1.8 V to 5.5 V, allowing flexibility across various power supply environments. The device includes 12 channels of 10-bit ADC and a 5-bit DAC, providing versatile analog interfacing capabilities.

Its internal 32 MHz oscillator is factory calibrated to ±1% accuracy and supports selectable frequency ranges from 31 kHz up to 32 MHz. Additional oscillator modes include four crystal modes and three external clock modes to accommodate diverse timing requirements. The architecture employs a 16-level deep hardware stack and RISC instruction set for efficient processing and control.

With 16 programmable input/output pins and two timers, it offers a versatile platform for embedded system developers. The microcontroller operates reliably across a wide temperature range from -40°C to 85°C, ensuring robust performance in harsh environments. It meets the latest industry regulations with RoHS3 and REACH compliance.

Applications include automotive electronics, industrial automation, home appliances, consumer electronics, and other embedded system uses requiring precise control with low power consumption. The device's small 7.5mm width is advantageous for compact PCB designs.

Key features include low power nanoWatt technology, multiple analog channels, flexible clocking modes, and a compact footprint. This microcontroller provides an ideal balance of performance and efficiency for a broad range of electronic applications.

Features 18-Pin SOIC surface mount package design for efficient PCB integration. Operates with supply voltages ranging from 1.8 V to 5.5 V for flexible power options. Contains 12 x 10-bit ADC channels and 1 x 5-bit DAC for analog interfacing.

Includes two timers, 16 programmable I/Os, and RISC instruction set architecture for optimal performance. Operates reliably within -40°C to 85°C temperature range, compliant with RoHS3 and REACH standards. Equipped with factory-calibrated 32 MHz internal oscillator with ±1% typical accuracy and multiple crystal/clock modes.

Utilizes nanoWatt XLP technology for ultra-low power consumption suitable for battery-powered applications. Program memory built with FLASH type and includes 256 bytes data EEPROM and 16-level deep hardware stack. Ideal for industrial, automotive, consumer electronics, and embedded system applications requiring efficient 8-bit control.

Compact width of 7.5 mm ensures space-saving in PCB layout designs while maintaining robust functionality. Explore more Microchip Microcontrollers and other semiconductor components in EnvMart's extensive electronics catalog for industrial and commercial use.
