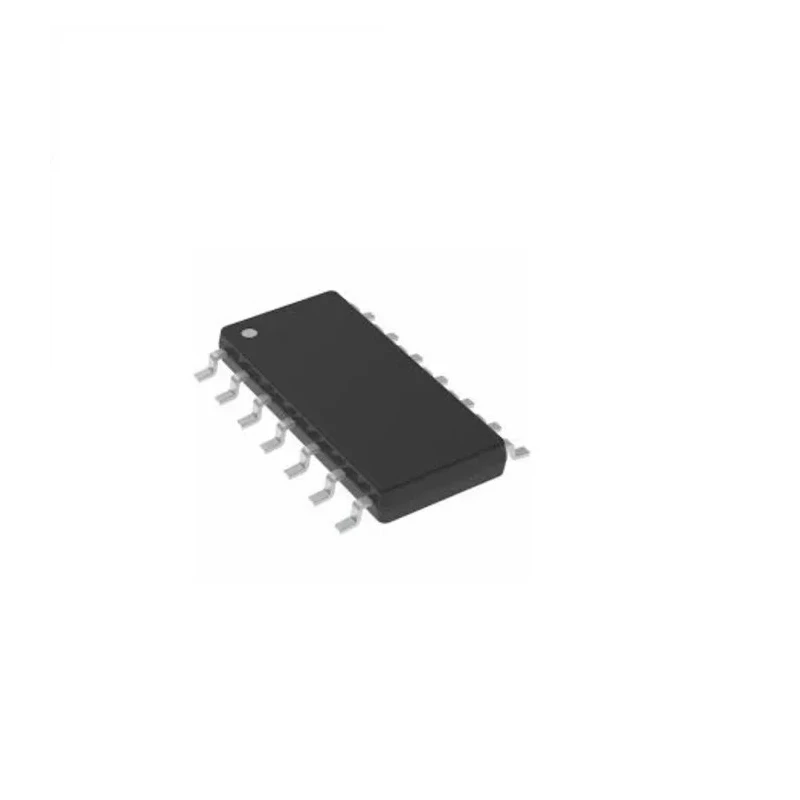

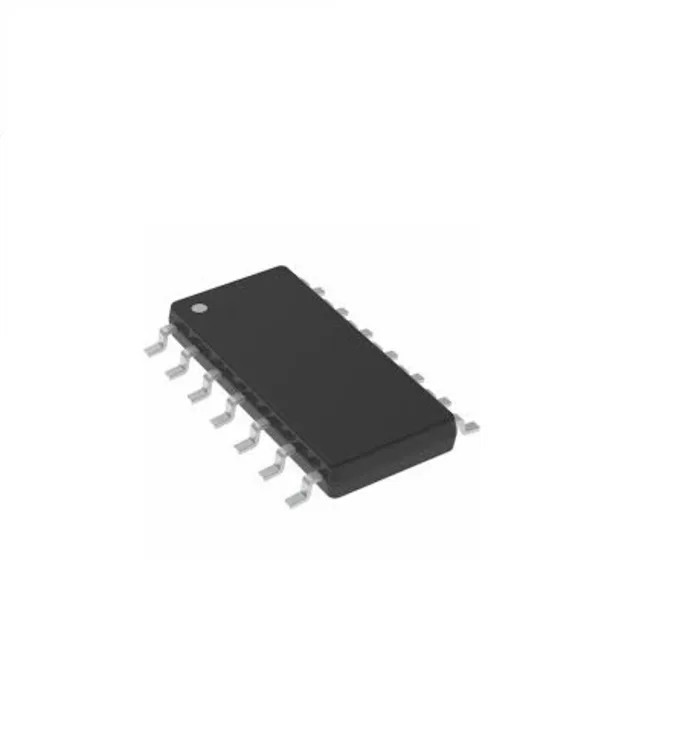

Microchip AVR Microcontroller 20 MHz 16kB Flash 2kB SRAM 14-Pin SOIC ATTINY1614-SSF

Microchip ATTINY1614-SSF is an advanced AVR microcontroller featuring a 20 MHz maximum clock frequency and 16kB flash memory in a compact 14-pin SOIC package. It integrates 2kB SRAM and 256 bytes of EEPROM, making it ideal for complex embedded and industrial applications requiring efficient processing and data retention.

The microcontroller employs Harvard architecture along with a two-cycle hardware multiplier and a two-level interrupt controller to enhance operational speed and responsiveness. It supports flexible low power modes and a wide operating temperature range from -40°C to 125°C, suitable for harsh environments.

Onboard peripherals include a 10-bit ADC, 3 analog comparators, and 4 timers, alongside 22 programmable I/O pins that facilitate extensive interfacing capabilities. The integrated Peripheral Touch Controller enables capacitive touch sensing with Driven Shield and Boost Mode technology for advanced user-interface designs.

The chip supports in-system self-programmable flash memory with endurance of 10,000 write/erase cycles and data retention of 40 years at 55°C. Surface mount SOIC packaging ensures efficient PCB layout in compact industrial assemblies.

Operates at a maximum clock frequency of 20 MHz for fast processing. Includes 16 kilobytes of in-system self-programmable flash memory. Equipped with 2 kilobytes of SRAM and 256 bytes of EEPROM for versatile data handling.

Features 22 programmable input/output pins for flexible interfacing options. Supports capacitive touch interfaces with integrated Peripheral Touch Controller. Operates within a voltage range up to 2.7 volts for energy-efficient designs.

Built with a Harvard architecture and includes hardware multiplier for efficient computation. Contains multiple analog components including 10-bit ADCs and 3 analog comparators. Designed for operation within temperature range from minus 40 degrees Celsius up to 125 degrees Celsius.

Supports up to four timers and features core independent peripherals.

This microcontroller is suited for various industrial, consumer electronics, and commercial embedded systems requiring compact, reliable, and high-speed processing. Its support for advanced touch sensing and low power operation makes it ideal for modern user interfaces and IoT devices.
