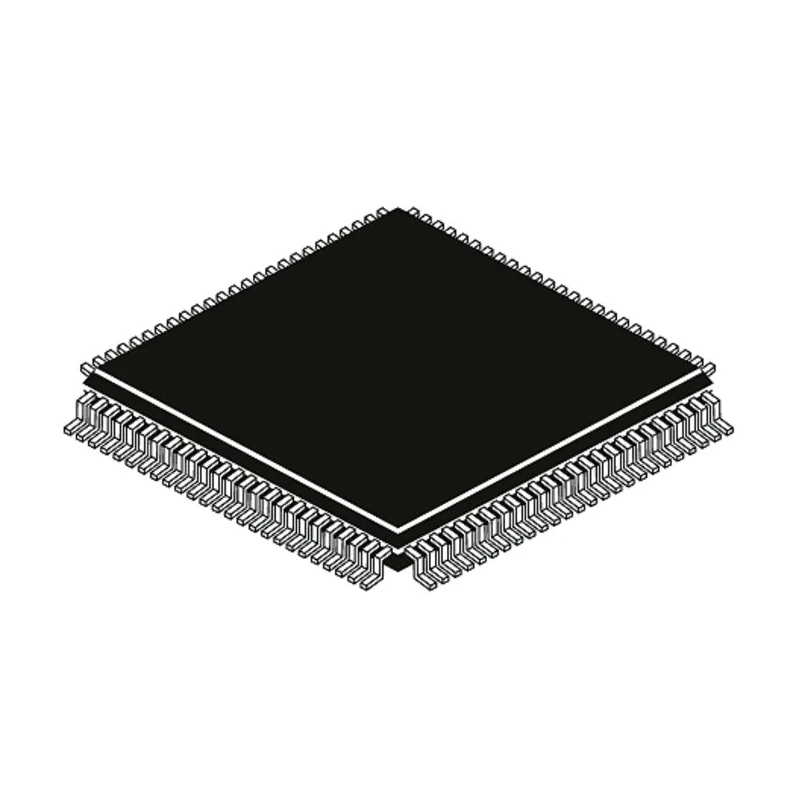

Microchip 32 bit PIC PIC32MX Microcontroller 100 MHz, 512kB Flash, 128kB RAM, 100-Pin TQFP PIC32MX470F512L-I/PF

Microchip PIC32MX470F512L-I/PF is a high-performance 32-bit PIC microcontroller designed for demanding embedded applications requiring up to 100 MHz processing speed. It integrates 512kB of FLASH memory and 128kB of RAM to accommodate complex code and data handling needs in a compact 100-Pin TQFP surface mount package measuring 14 x 14 x 1.05 mm.

This microcontroller features a robust 32-bit PIC device core compliant with the MIPS32 instruction set architecture, delivering efficient multitasking and processing capabilities for applications such as high-impact graphics, user interfaces, Ethernet/USB/CAN connectivity, and high-performance audio systems.

Operating within a supply voltage range of 2.3V to 3.6V, it supports industrial and automotive environments with operating temperatures from -40°C to 85°C and meets the automotive standard AEC-Q100. The device includes 81 programmable input/output pins, 28 10-bit ADC channels, 2 analogue comparators, and a single timer, making it suitable for versatile digital and analog control tasks.

The FLASH memory type ensures high-speed program execution, and the device core architecture facilitates integration in complex embedded and multitasking systems. Its surface mount design and compact dimensions enable efficient PCB layout for high-density assemblies.

Features a 32-bit PIC device core designed for embedded control applications. Operates with a maximum supply voltage of 3.6V and minimum of 2.3V. Includes 81 programmable I/O pins for flexible interfacing. Equipped with 28 10-bit ADC channels and 2 analogue comparators for precise signal processing.

Designed to operate within a temperature range of -40°C to 85°C for robust industrial use. Utilizes MIPS32 instruction set architecture for efficient multitasking and performance. Measuring 14mm x 14mm with a height of 1.05mm, suitable for surface mount technology.

Automotive standard AEC-Q100 compliant for automotive applications. Program memory type is high-speed FLASH, supporting up to 1 timer.

This microcontroller is ideal for industrial, automotive, consumer electronics, telecommunications, and instrumentation applications requiring reliable, high-speed processing with extensive input/output capabilities. It supports Ethernet, USB, and CAN protocols, making it suitable for advanced embedded networking and control.
