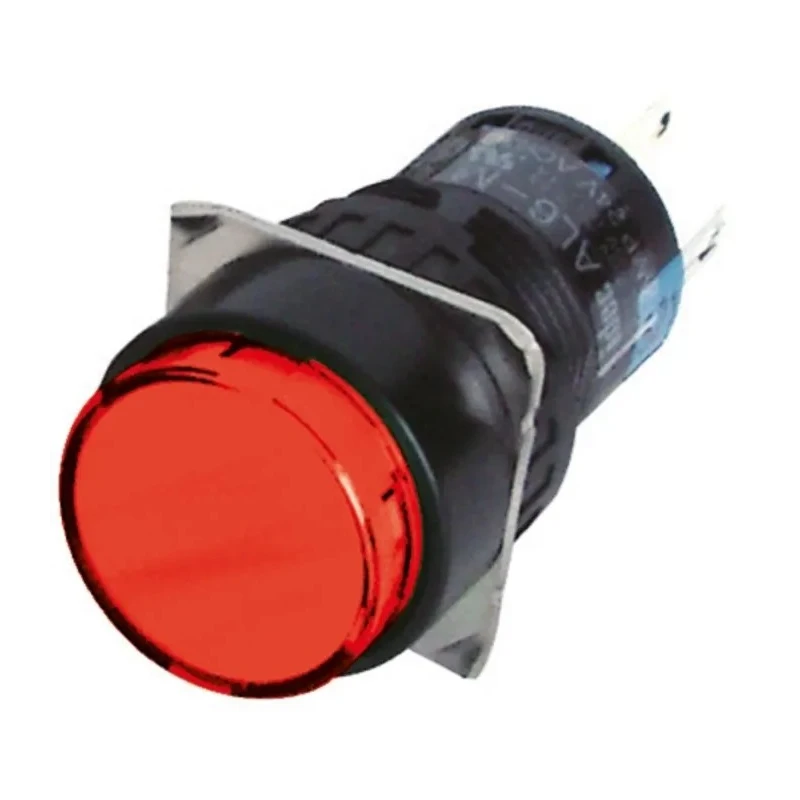

Idec AL Series Illuminated Push Button Switch, Latching, Panel Mount, Amber Actuator, 16.2 mm Cutout, DPDT, Red AL6M-A23P-R

Name: Idec AL Series Illuminated Push Button Switch, Latching, Panel Mount, Amber Actuator, 16.2 mm Cutout, DPDT, Red AL6M-A23P-R
Brand: Idec
SKU: 252568
Price: 2795.6 INR
Availability: InStock



Category Push Button Switches & Components Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Length	22mm
Model	AL6M-A23P-R
IP Rating	IP65
Mount Type	Panel
Series	AL
Maximum Operating Temperature	120°C
Contact Configuration	DPDT
Switch Configuration	On-Off
Minimum Operating Temperature	-25°C
Panel Cutout Size	16.2 mm
Terminal type	Quick Connect, Solder Tag
Standards/Approvals	UL, CSA
LED Colour	Red
Switch Operation	Latching
Actuator Colour	Amber
Actuator Style	Button
Switch Contact Current	1A
Contact AC Voltage	250V ac

Key Features

Designed for panel mounting with a 16.2 mm cutout size.
Features an amber actuator color and button style for easy operation.
IP65 rated for dust-tight and water-resistant protection.
Operates at 250 V AC with a contact current rating of 1A.
Suitable for industrial environments with a temperature range from -25°C to 120°C.
Equipped with quick connect and solder tag terminals for versatile wiring options.
Compact length of 22 mm allowing space-saving installation.
Certified to UL and CSA standards for safety and reliability.

Product Description

Idec AL6M-A23P-R illuminated push button switch is a high-quality industrial control component featuring a latching switch operation with double-pole double-throw (DPDT) contacts for robust control applications.

This panel-mounted switch has a 16.2 mm cutout size and an amber-colored button actuator with a red LED indicator, providing clear visual status in control panels.

Its IP65 rating ensures it is dust-tight and protected against water jets, which makes it suitable for harsh industrial environments including manufacturing, automation systems, and electrical equipment panels.

The switch supports an AC voltage rating of 250 V and contact current up to 1 ampere, making it ideal for PLC inputs, logic level switching, and other control logic applications requiring reliable snap-action contacts.

The product is designed to operate efficiently within a temperature range of -25°C to 120°C, sustaining performance under varying industrial conditions. Quick connect and solder tag terminals allow for flexible wiring methods during installation and maintenance.

Designed for panel mounting with a 16.2 mm cutout for secure fitting. Amber actuator with red LED illumination enhances operator feedback. Robust IP65 sealing for protection against dust and water ingress. Double-pole double-throw (DPDT) contact arrangement for versatile switching.

Compliance with UL and CSA certifications assures quality and safety standards. Compact length of 22 mm facilitates installation in space-constrained panels. Suitable for use in industrial automation, electrical control systems, and manufacturing processes requiring reliable push button control devices.

Originating from Japan, this Idec AL Series switch combines proven design and reliability for demanding industrial electrical installations. Explore a wide range of push button switches and electrical components at EnvMart for your control panel needs.

Explore more products in our Push Button Switches & Components category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating temperature for this model is 120°C.

This switch requires a panel cutout size of 16.2 mm for installation.

It is equipped with quick connect and solder tag terminals, allowing for flexible wiring options.

This model features a double-pole double-throw (DPDT) contact configuration.

The switch has an IP65 rating, making it dust-tight and water-resistant.

It operates at an AC voltage of 250V.

The actuator color of this switch is amber, with a red LED indicator for visual status.

The contact current rating for this switch is 1 ampere.

The minimum operating temperature for this model is -25°C.

This model is certified to UL and CSA standards for safety and reliability.

The length of this switch is 22 mm, allowing for space-saving installation.

It is suitable for use in industrial automation, electrical control systems, and manufacturing processes requiring reliable push button control devices.
