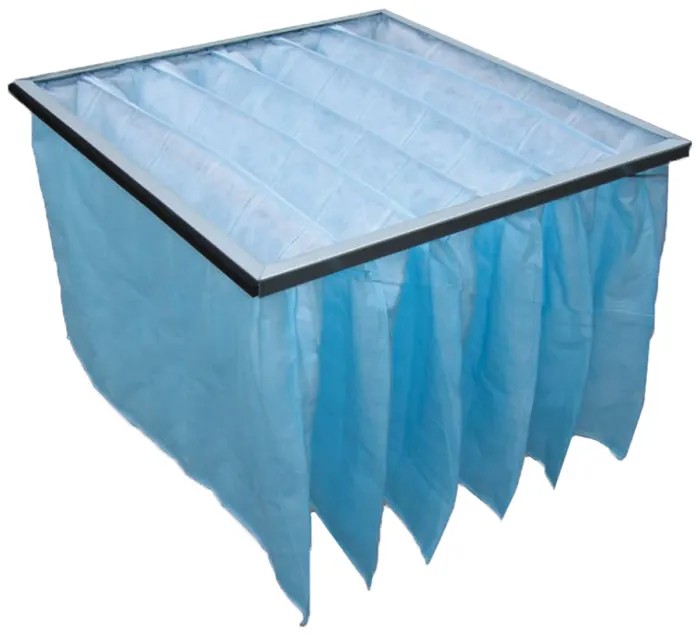

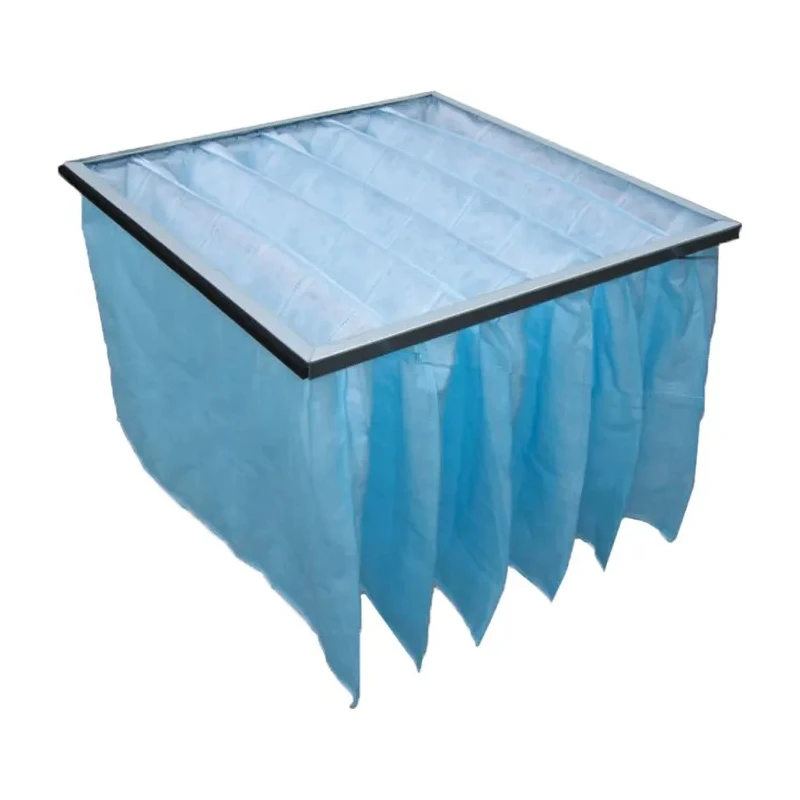

RS PRO Ultraseal Series Polypropylene Bag Filter G4 Grade 8 MERV Rating 287x592x500 mm 827-9658

RS PRO 827-9658 Ultraseal Series Polypropylene Bag Filter is a high-quality G4 Grade HVAC air filter with an 8 MERV rating, measuring 287 mm width, 592 mm height, and 500 mm depth. Designed for efficient air filtration, it is ideal for industrial, commercial, and institutional applications including government buildings, hospitals, theatres, computer rooms, and spray booths.

The filter is composed of 100% polypropylene synthetic media that is hydrophobic, making it suitable for damp environments. It is mounted within a galvanised steel header frame ensuring durability and structural integrity. The three pockets are ultrasonically welded to guarantee leak-free seams, and a rolled safety edge protects the filter media from damage during installation.

The filtration system features a maximum air flow capacity of 71.51 cubic meters per hour, with low initial and final pressure drops of 40 Pa and 50 Pa respectively, contributing to energy efficiency and system longevity. The blue-coloured filter includes an extra pre-filter layer that extends its effective operating life, reducing maintenance frequency and costs.

Manufactured under stringent standards including ISO, RoHS, and BS EN, this bag filter ensures compliance with quality and environmental norms. With nominal dimensions of 304.8 mm width, 609.6 mm height, and 508 mm depth, plus a header size of 20 mm, it fits standard HVAC filter housings.

100% polypropylene synthetic media for effective filtration and durability. Hydrophobic properties suitable for operating in damp conditions. Galvanised steel header frame providing robust construction. Ultrasonically welded pockets ensure leak-free seams.

Extra built-in pre-filter layer extends filter life. Maximum air flow capacity of 71.51 m³/h for efficient ventilation. Conforms to ISO, RoHS, and BS EN standards for quality assurance. Ideal for use in HVAC systems of institutional, commercial, and industrial facilities.

This RS PRO HVAC Air Filter is a dependable choice for maintaining air quality by preventing dust and debris from entering ventilation, cooling, or heating systems. Regular replacement ensures system efficiency, safety, and longevity in diverse industrial and commercial environments.
