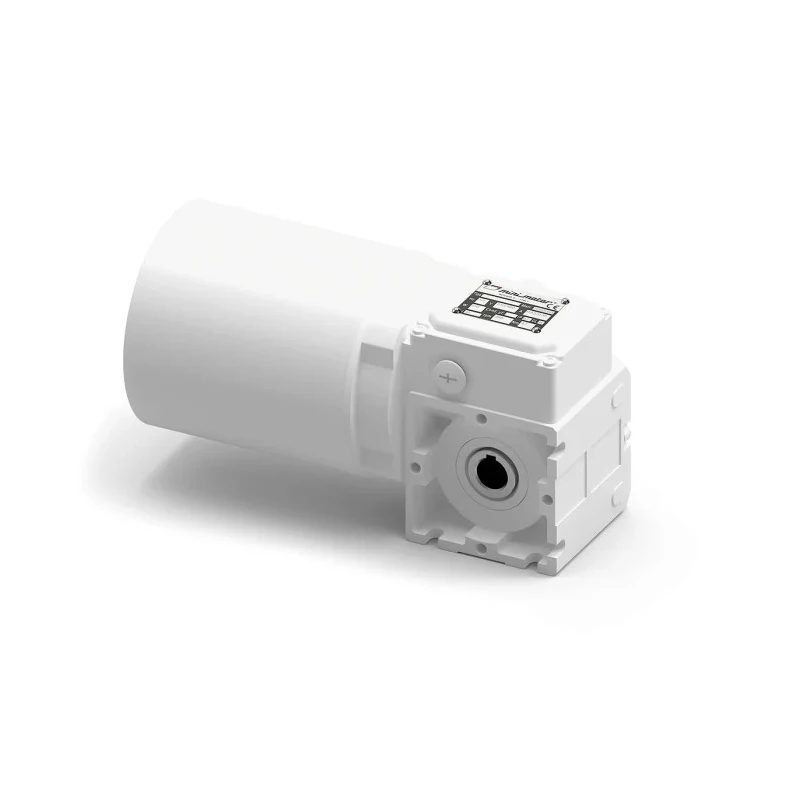

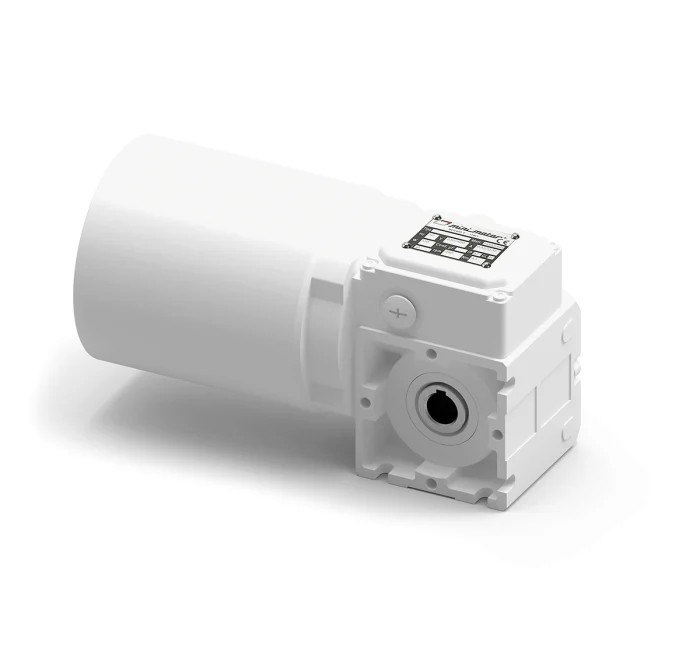

Mini Motor XCF Worm AC Geared Motor 2-Pole 400V 290W Aluminium Steel Casing XCF5T2-20-B3
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Mini Motor |
| Material | Aluminium, Steel |
| Length | 291mm |
| Model | XCF5T2-20-B3 |
| Depth | 151mm |
| Width | 96mm |
| Current Rating | 1.56A |
| Series | XCF |
| Power Rating | 290W |
| Sub Type | Geared |
| Output Speed | 140rpm |
| Supply Voltage | 400V |
| Bearing Type | Roller, Ball |
| Number of Poles | 2 |
| Gear ratio | 20:1 |
| Standards/Approvals | IEC/EN 60529, RoHS |
| Maximum Output Torque | 15.3Nm |
| Gearhead Type | Worm |
| 20 | 1 |
| Gear Ratio20 | 1 |
Key Features
- Asynchronous three-phase motor with 2 poles for consistent performance.
- Constructed with aluminium and steel for robust protection.
- IEC/EN 60529 IP67 rated for excellent dust and water resistance.
- Roller and ball bearings ensure smooth and reliable operation.
- Maximum output torque of 15.3 Nm suitable for demanding tasks.
- Output speed of 140 rpm for controlled mechanical motion.
- White epoxy coating protects against harsh environmental conditions.
Product Description
The Mini Motor XCF5T2-20-B3 is a high-quality AC geared motor delivering 290W of power at 400V with 2 poles, engineered for industrial and automation applications requiring precision and durability.
This asynchronous three-phase motor features a worm gearhead with a 20:1 gear ratio, enclosed in a die-cast aluminium casing that offers strength and reduced weight. The gear system, utilizing a bronze wheel rim with 120/160 HB hardness and stainless steel output shaft, is lubricated with long-lasting oil to ensure longevity and reduce maintenance needs.
The motor’s white epoxy protective coating and IP67 rating per IEC/EN 60529 standards make it ideal for harsh environments, protecting against dust and water ingress. The integration of roller and ball bearings provides smooth operation and extended service life, supporting continuous industrial use.
With an output speed of 140 rpm and maximum torque of 15.3 Nm, this motor is capable of powering a variety of machinery in manufacturing, automation, HVAC, water treatment, and agricultural sectors.
Its compact dimensions (291 mm length, 151 mm depth, 96 mm width) allow for versatile mounting and installation. Originating from Italy, it adheres to international quality standards and RoHS compliance.
Asynchronous three-phase 2-pole motor design. Worm gearhead with 20:1 ratio for increased torque output. Durable aluminium and steel construction with epoxy coating. IP67 rated for protection in demanding environments. Roller and ball bearings for reliable operation.
Low maintenance lubrication system. Output speed of 140 rpm and torque up to 15.3 Nm. Compact size facilitates integration in tight spaces. This Mini Motor AC geared motor series is widely used across industrial automation, manufacturing lines, and equipment requiring precise speed and torque control.
Explore further industrial motor options and Mini Motor products at EnvMart for optimized machine performance.
Explore more products in our Geared Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 290W.
It has an output speed of 140 rpm.
The maximum output torque is 15.3 Nm.
This motor features a worm gearhead with a 20:1 gear ratio.
The dimensions are 291 mm in length, 151 mm in depth, and 96 mm in width.
The supply voltage required is 400V.
It is constructed from aluminium and steel.
This unit uses roller and ball bearings for operation.
It complies with IEC/EN 60529 standards and is RoHS certified.
This motor originates from Italy.
It is suitable for industrial automation, manufacturing, HVAC, water treatment, and agricultural sectors.
The current rating is 1.56A.
