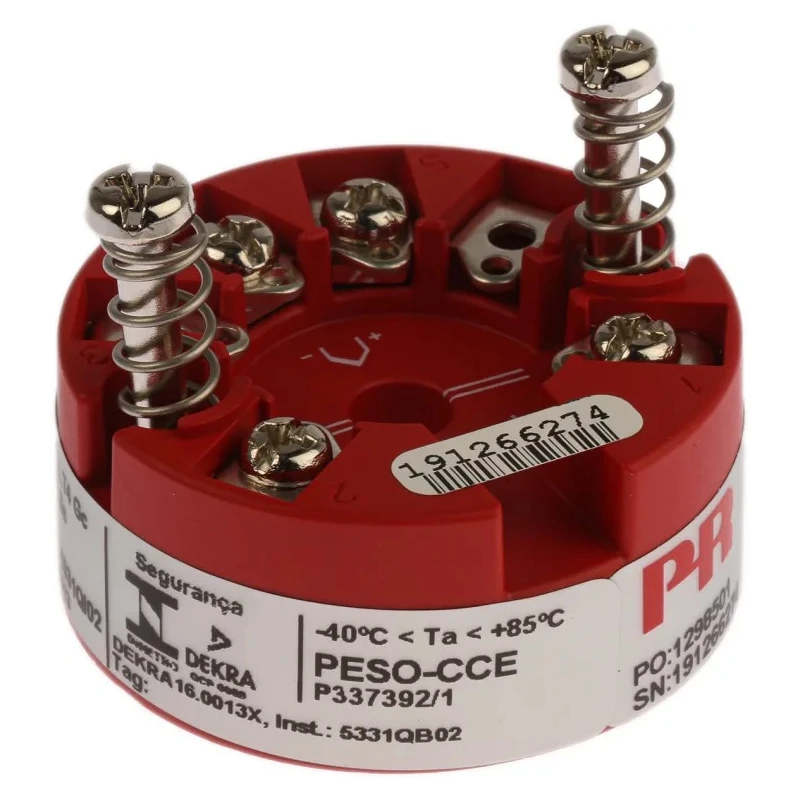

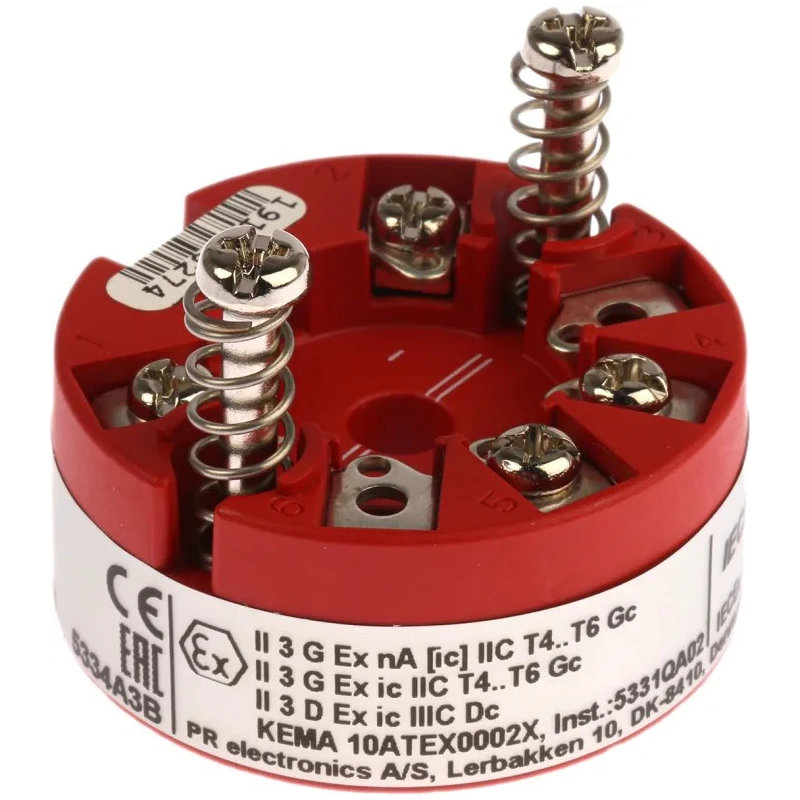

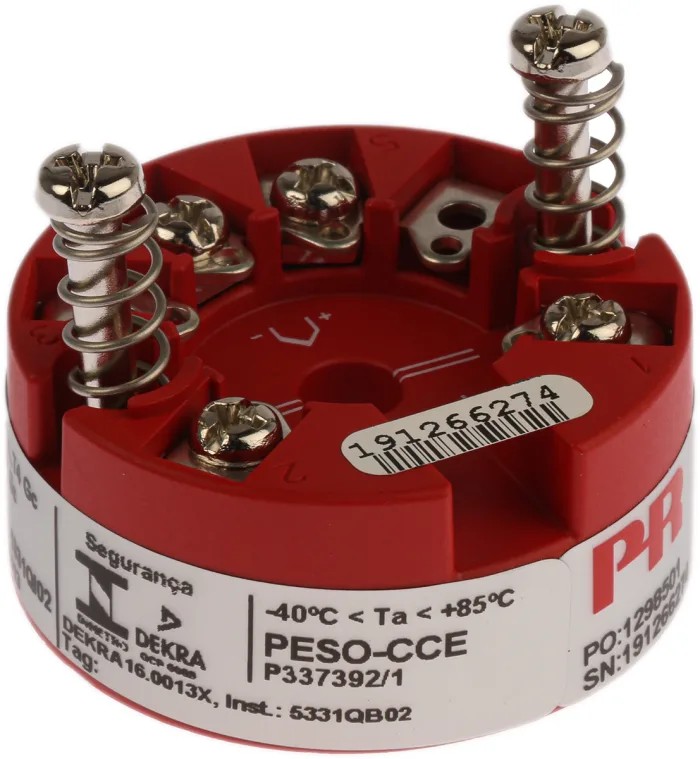

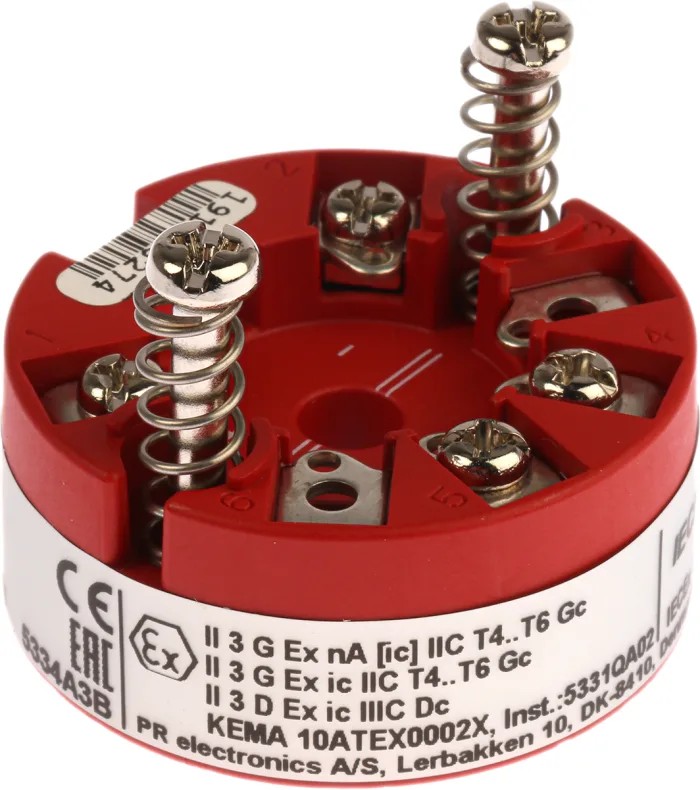

PR Electronics 5300 Temperature Transmitter Thermocouple, Voltage Input 35V dc, Operating Temperature -40°C to 85°C 5334A3B

PR Electronics 5334A3B Temperature Transmitter is a high-performance process control device designed for industrial and automation applications. It accepts thermocouple and voltage inputs, converting these sensor signals into a reliable 4 - 20 mA current output for measurement and control systems.

The transmitter features an input sensor redundancy function that maintains system safety and availability even if the primary sensor fails. It is built to withstand harsh industrial environments with a wide operating temperature range from -40°C to 85°C and high immunity to electrical noise, tested rigorously across a broad frequency spectrum.

Its compact size, mounting to a DIN form B sensor head with a diameter of 44mm and depth of 20.2mm, saves valuable space. The 5300 series transmitter benefits from superior accuracy and sensor drift detection for dependable measurement integrity.

Configuration is user-friendly via PR Electronics' PReset software, enabling tailored setup for input type, output modes, sensor error detection, and process-specific calibration. Industrial users benefit from features such as runtime meters to monitor temperature history and ambient conditions around the transmitter.

Certifications including IECEx, ATEX, EAC, IEC, CE, and RoHS highlight compliance with international standards. Originating from Denmark, this new condition transmitter supports safety and cost-efficiency in diverse sectors including industrial automation, HVAC, manufacturing, and laboratory process control.

Supports thermocouple and bipolar mV sensor inputs for extensive application flexibility. Input sensor redundancy enhances process availability under fault conditions. High immunity to electrical noise ensures stable operation in industrial environments.

Fast response and superior accuracy optimize safety-critical measurements. Compact DIN form B mounting allows easy integration into sensor heads. Programmable parameters via free PReset software enable customized operation.

Complies with IECEx, ATEX, CE, RoHS, and other global approvals for hazardous areas. Designed and manufactured in Denmark, ensuring quality and reliability. Explore a wide range of Temperature Transmitters and precision industrial control products on EnvMart for reliable automation solutions.
