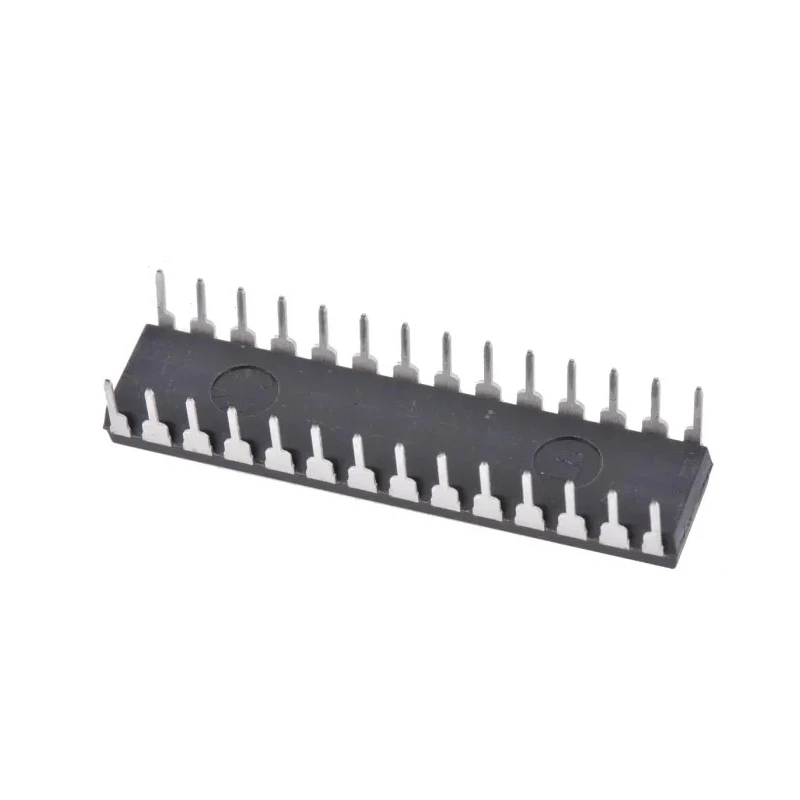

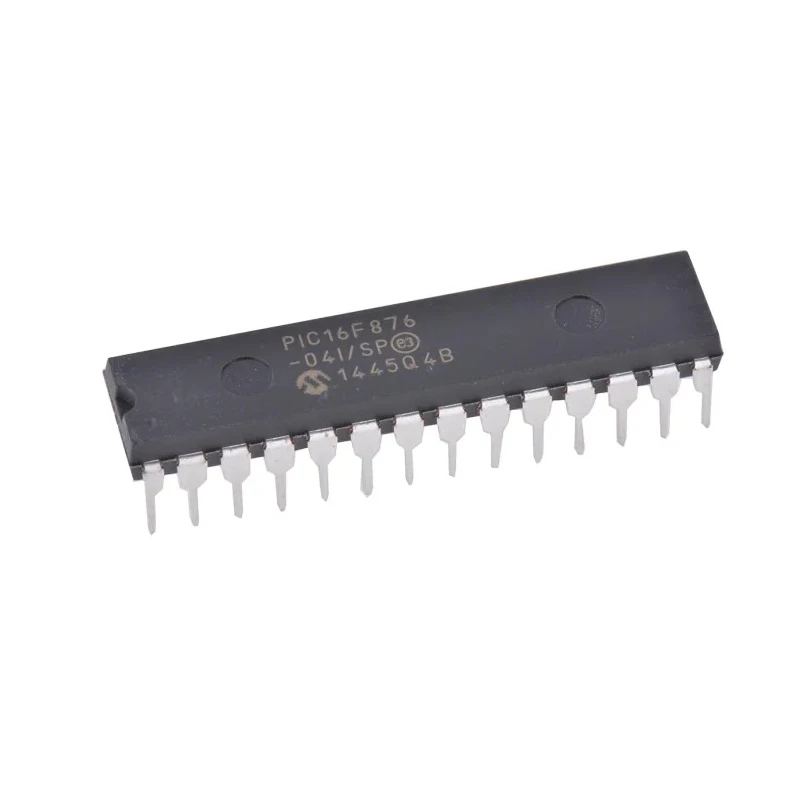

Microchip 8 bit PIC16F Microcontroller, 20 MHz CPU Speed, 14kB FLASH Memory, 28-Pin PDIP Package PIC16F876-04I/SP

Microchip PIC16F876-04I/SP is an advanced 8-bit PIC microcontroller featuring a robust PIC architecture, designed for diverse embedded applications. It delivers a maximum CPU speed of 20 MHz and houses 14kB of FLASH program memory, enabling effective code storage and fast execution.

This microcontroller comes in a 28-pin PDIP package, mounted through-hole for easy PCB integration. It operates on a supply voltage ranging from 1.8V to 5.5V, allowing flexible power design options. The device includes 33 programmable I/O pins for versatile interfacing and a RAM size of 368 bits for data handling.

Additional peripherals include two 8-bit DACs, two analogue comparators, and five channels of 10-bit ADC, supporting precise analog and digital signal processing tasks. The SPI interface facilitates synchronous serial communication capabilities. The microcontroller also features three timers, a watchdog timer with multiple reset and oscillator start-up options, and supports in-circuit programming and debugging for development efficiency.

Designed with reliability in mind, it supports an operating temperature range from -40°C to 85°C and has a maximum power dissipation of 800mW, making it suitable for industrial, automotive, and consumer electronics. Its compact physical dimensions (35.18mm length, 7.49mm width, 3.43mm height) ensure compatibility with space-constrained designs.

The product is RoHS compliant, emphasizing its adherence to environmental and safety regulations. The PIC16F876-04I/SP is ideal for control systems, instrumentation, robotics, and other embedded system designs requiring efficient processing within a compact footprint.

Features a 28-pin PDIP package with through-hole mount type. Operates with a maximum supply voltage of 5.5V and minimum of 1.8V. Includes 33 programmable I/Os and 368-bit RAM size. Provides two 8-bit DACs, two analogue comparators, and five 10-bit ADC channels.

Supports SPI interface with multiple timers and a RISC instruction set architecture. Power dissipation capped at 800mW ensuring efficient energy use. Operating temperature range from -40°C to 85°C suitable for various environments.

Dimensions: length 35.18mm, width 7.49mm, height 3.43mm. Complies with RoHS standards for environmental safety. Explore more Microcontrollers and electronic components in the Electronics & Electricals category at EnvMart.
