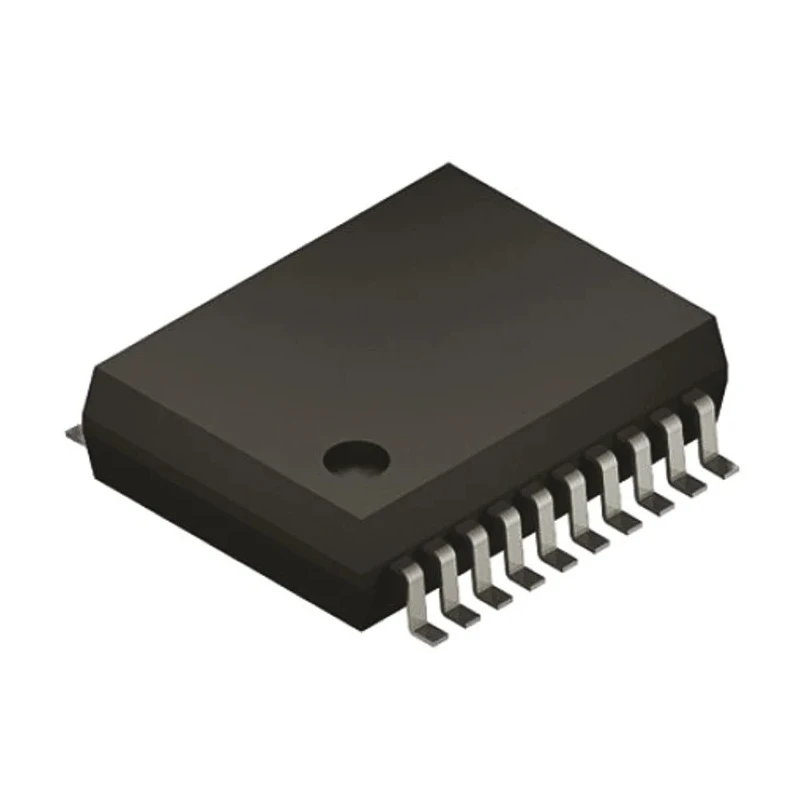

Microchip 8 bit PIC Microcontroller PIC16F1827-E/SS, 32 MHz Clock, 7 KB Flash Memory, 20-Pin SSOP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | PIC16F1827-E/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 384bit |
| Interface Type | SPI, I2C, EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 26 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Implements Microchip's enhanced mid-range PIC architecture for flexible applications.
- Operates with 1.8 V to 5.5 V supply voltage range for diverse environments.
- Features 26 programmable I/O pins supporting SPI, I2C, and EUSART communication interfaces.
- Contains 12 channel 10-bit ADC and integrated mTouch capacitive sensor module.
- Includes advanced timers, PWM modules, and DAC for embedded control tasks.
- Operating temperature from -40°C up to 125°C suitable for industrial use.
- Package Type is 20-Pin SSOP with surface mount technology for compact PCB designs.
- Maximum power dissipation of 800 mW ensures energy-efficient operation.
Product Description
Microchip PIC16F1827-E/SS is an 8 bit PIC microcontroller designed with the enhanced mid-range architecture to provide up to 8 MIPS processing speed at a maximum clock frequency of 32 MHz. It integrates a 7 KB Flash program memory and 384-bit RAM, suitable for various embedded control applications across industrial, automotive, and consumer electronics systems.
This microcontroller operates efficiently within 1.8 V to 5.5 V power supply range, accommodating broad voltage requirements. Its 20-pin SSOP surface mount package supports compact and space-efficient PCB designs.
It features 26 programmable input/output pins leveraging SPI, I2C, and enhanced universal synchronous/asynchronous receiver transmitter (EUSART) interfaces, facilitating flexible communication protocols. The embedded peripherals include a 12-channel 10-bit analogue to digital converter (ADC), one 5-bit DAC, 12-channel mTouch capacitive sensor module, and multiple timers to support precise timing and signal control.
Additional reliability features such as power-on reset, brown-out reset, extended watchdog timer, and low-voltage programming enhance its robustness for commercial and industrial environments. The device supports in-circuit serial programming (ICSP) and debugging (ICD), streamlining development cycles.
Implements enhanced mid-range PIC architecture with 49 instructions and 16-level hardware stack. Supports multiple timers including four 8-bit timers and one 16-bit timer for versatile control. Includes analogue comparators and fixed voltage reference for precise signal handling.
Compliant with RoHS standards ensuring environmental safety.
This microcontroller is well-suited for industrial automation, consumer electronics, automotive systems, and embedded control applications requiring low power consumption and advanced peripheral integration.
Discover more Microchip Microcontrollers and embedded solutions in the Electronics & Electricals category at EnvMart for comprehensive product sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates within a supply voltage range of 1.8 V to 5.5 V.
This model features 7 kB of Flash program memory.
It supports SPI, I2C, and EUSART communication interfaces.
The operating temperature range is from -40°C to 125°C.
This microcontroller has 26 programmable I/O pins.
It comes in a 20-Pin SSOP package type.
The RAM size is 384 bits.
It includes a 12-channel 10-bit ADC.
The maximum power dissipation is 800 mW.
It includes five timers, which consist of four 8-bit timers and one 16-bit timer.
Yes, it is compliant with RoHS standards.
