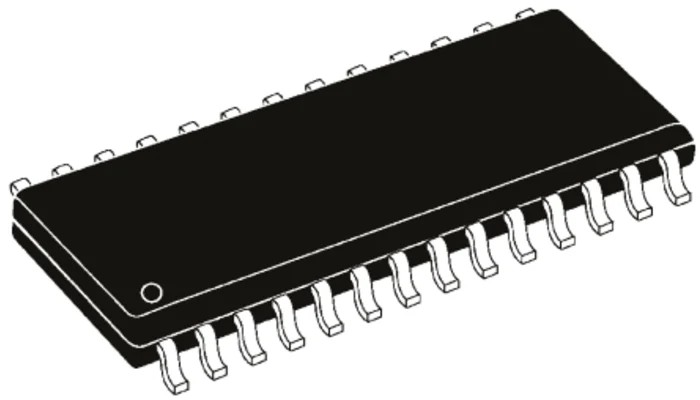

Microchip 16 Bit dsPIC33EP Microcontroller 140 MHz 256kB FLASH 28-Pin SOIC DSPIC33EP256GP502-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 17.9mm |
| Model | DSPIC33EP256GP502-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | DsPIC33EP |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 32kB |
| Interface Type | QEI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | dsPIC |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 140MHz |
| Analogue Comparators | 4 |
| Number of Timers | 12 |
| Instruction Set Architecture | DSP |
| ADCs | 6 x 10/12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 4 Bit |
Key Features
- High-performance 16-bit digital signal controller architecture.
- 256kB FLASH program memory for extensive code storage.
- Maximum clock frequency of 140 MHz for efficient processing.
- Surface mount 28-pin SOIC package suitable for compact PCB designs.
- Integrated peripherals including ADCs, DAC, comparators, and timers.
- Operating temperature range from -40°C to 85°C for robust applications.
- Low voltage operation between 3 V minimum and 3.6 V maximum supply.
- Automotive standard AEC-Q100 compliant for high reliability.
Product Description
Microchip DSPIC33EP256GP502-I/SO is a highly capable 16-bit dsPIC33EP microcontroller designed for demanding embedded systems requiring sophisticated signal processing performance. Operating at a maximum clock frequency of 140 MHz, this controller features 256kB of FLASH program memory and 32kB of RAM, facilitating complex application development.
Housed in a compact 28-pin SOIC surface mount package measuring 17.9mm in length, 7.5mm in width, and 2.35mm in height, this device supports low-voltage operation from 3 V to 3.6 V and operates reliably in environments ranging from -40°C to 85°C, making it suitable for industrial, automotive, and commercial applications compliant with AEC-Q100 automotive standards.
The dsPIC33EP256GP502-I/SO integrates a variety of peripherals, including six 10/12-bit ADC channels, a 4-bit DAC, multiple analogue comparators, and twelve timers, enabling precise control and measurement capabilities. It also includes communication modules such as two UARTs, two SPI modules, ECAN™ module, and two I2C™ interfaces, enhancing connectivity in embedded systems.
Developed for digital signal control applications, this microcontroller supports several safety and reliability features like power-on reset, brown-out reset, watchdog timer, and high/low-voltage detection modules. Its comprehensive peripheral set and architecture allow it to perform well in DSP, automotive, industrial automation, and consumer electronics roles.
The product complies with RoHS standards for environmental responsibility and is ideal for use in advanced embedded processing projects requiring both digital signal processing and microcontroller functionality.
High-performance 16-bit DSP core with integrated peripherals. Wide operating temperature range for diverse applications. Rich analog and digital peripherals for enhanced functionality. Automotive standard compliant for high reliability and quality assurance.
Compact SOIC package enabling space-efficient PCB layouts. Multiple communication interfaces for flexible connectivity. Robust power management and safety features for system stability. RoHS compliant to meet environmental safety requirements.
Suitable for industrial, automotive, and consumer electronics design. Supports advanced signal processing with 70 MIPS CPU performance. Explore the selection of Microchip Microcontrollers including the DSPIC33EP series at EnvMart to find components tailored to your specific embedded system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the dsPIC33EP256GP502-I/SO microcontroller is 140 MHz, allowing for efficient processing in demanding applications.
This model features 256kB of FLASH program memory, providing ample space for extensive code storage in embedded applications.
The operating temperature range for this microcontroller is from -40°C to 85°C, making it suitable for robust applications in various environments.
This microcontroller includes six 10/12-bit ADC channels, enabling precise analog signal measurement and control.
The dimensions of this microcontroller are 17.9mm in length, 7.5mm in width, and 2.35mm in height, making it compact for PCB designs.
It is housed in a 28-pin SOIC (Small Outline Integrated Circuit) package, suitable for surface mounting on PCBs.
The minimum supply voltage is 3 V and the maximum supply voltage is 3.6 V, allowing for low-voltage operation.
This model includes two UARTs, two SPI modules, an ECAN™ module, and two I2C™ interfaces, enhancing connectivity options for embedded systems.
Yes, it is compliant with the AEC-Q100 automotive standard, ensuring high reliability for automotive applications.
It features integrated peripherals including six ADCs, one 4-bit DAC, four analog comparators, and twelve timers, enabling versatile control and measurement capabilities.
It includes safety features such as power-on reset, brown-out reset, a watchdog timer, and high/low-voltage detection modules for system stability.
The dsPIC33EP256GP502-I/SO has a RAM size of 32kB, supporting complex application development.
