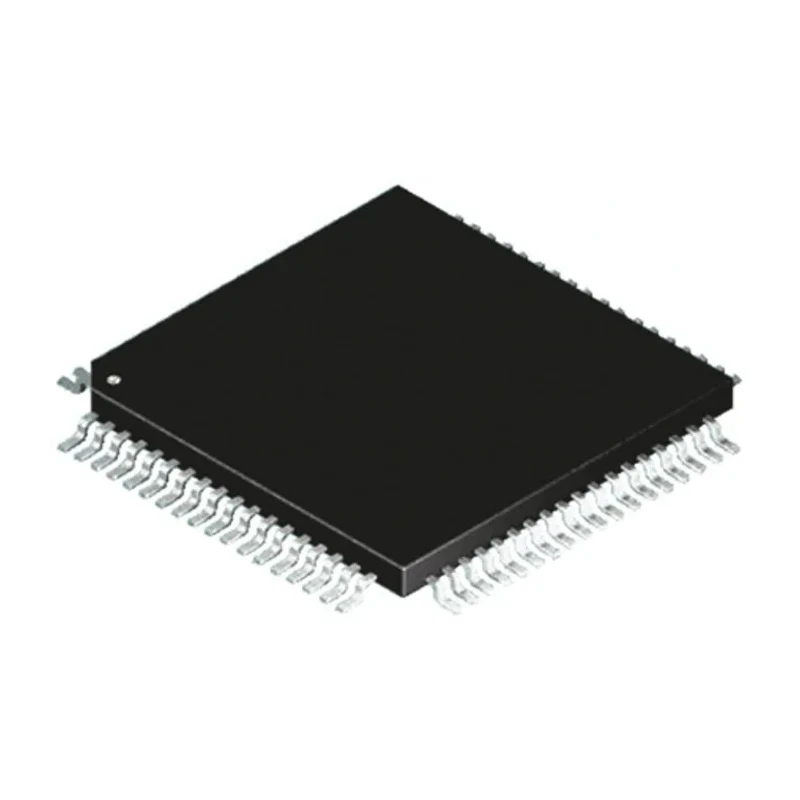

Microchip PIC18F8722-E/PT 8-Bit PIC Microcontroller 40 MHz 128kB FLASH 80-Pin TQFP

Microchip PIC18F8722-E/PT is a high-performance 8-bit microcontroller belonging to the PIC18F family, featuring the PIC18 architecture. It operates at a maximum frequency of up to 40 MHz and provides substantial program memory of 128kB FLASH along with 3.94kB RAM, facilitating complex embedded applications.

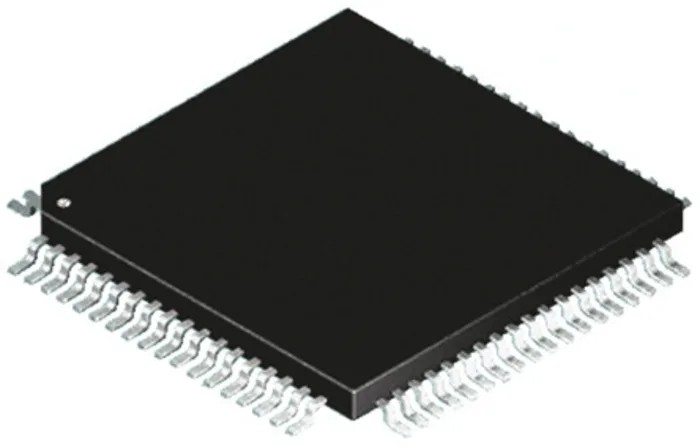

Encapsulated in an 80-pin TQFP package, it is suitable for surface mount technology, ensuring compact and efficient PCB layouts. The device supports a wide voltage range from 2.0 V to 5.5 V, making it adaptable for various power supply scenarios.

This microcontroller includes 16 channels of 10-bit ADCs and two analog comparators, enhancing the ability to interface with analog signals. It features five timers, three enhanced and two standard capture/compare/PWM modules, and supports advanced communication protocols including SPI and I2C via the MSSP module. Additionally, it incorporates enhanced addressable USART for serial communication.

Power management features support multiple modes such as Run, Idle, and Sleep to efficiently reduce power consumption. The device also provides a programmable brown-out reset, extended watchdog timer, and two-speed oscillator startup for robustness.

These microcontrollers are designed to meet embedded system demands ranging from automotive to industrial applications with their robust electrical characteristics and compliance to RoHS standards. Operating temperature range spans from -40°C to 125°C ensuring reliability even in harsh environments.

Operates at maximum 40 MHz clock frequency. Includes 128kB FLASH program memory and 3.94kB RAM. Equipped with 16 x 10-bit ADC channels and two analog comparators. Features multiple timers and communication interfaces (SPI, I2C, USART).

Power management with Run, Idle, and Sleep modes. Wide operating voltage range from 2.0 V to 5.5 V. 80-pin TQFP surface mount package. Operating temperature from -40°C to 125°C. Supports In-Circuit Serial Programming and Debugging.

Ideal for embedded control, industrial automation, and various electronic applications, the PIC18F8722-E/PT combines performance, flexibility, and energy efficiency. Explore more Microcontroller options in the Electronics & Electricals category on EnvMart.
