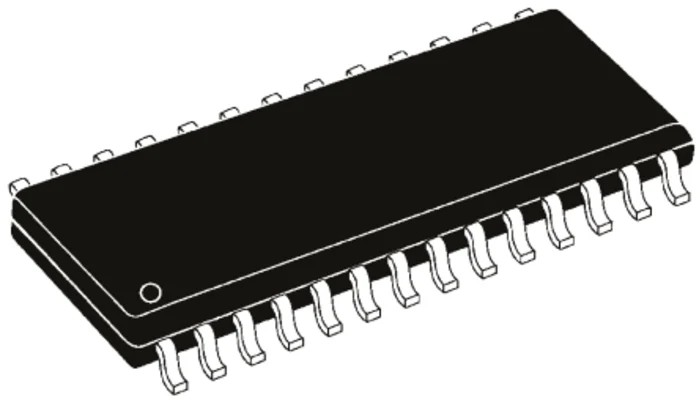

Microchip 8 bit PIC Microcontroller, PIC16F Series, 20 MHz Clock, 8.192kB Flash Memory, 28-Pin SOIC Package PIC16F886-E/SO

Microchip PIC16F886-E/SO is an 8 bit PIC microcontroller belonging to Microchip's PIC16F series, designed for industrial and embedded electronic applications requiring precise 8-bit control. It operates at a maximum clock frequency of 20 MHz and possesses 8.192 kB of flash program memory in a compact 28-pin SOIC surface mount package.

This microcontroller uses Microchip's Mid-Range PIC core architecture with a 35 instruction set and an 8-level deep hardware stack for efficient code execution. It provides 24 programmable input/output pins and various on-chip peripherals, including two 10-bit Analogue-to-Digital Converters (ADCs) with 11 channels, two analogue comparators, and advanced capture/compare/PWM modules for flexible control capabilities.

It supports a supply voltage range of 2 V to 5.5 V with a maximum power dissipation of 800 mW. The device features an 8 MHz internal oscillator that can be selectively adjusted within a frequency range from 31 kHz to 8 MHz, factory-calibrated to ±1% accuracy, enabling precise timing in embedded control systems.

Designed to withstand harsh environments, the PIC16F886-E/SO operates reliably over a wide temperature range from -40°C to 125°C and meets the automotive industry AEC-Q101 standard. Additional embedded features include Power-On Reset, Brown-Out Reset, Power-Up Timer, Oscillator Start-Up Timer, Watchdog Timer, and support for In-Circuit Serial Programming (ICSP) and debugging.

28-pin SOIC surface mount package optimized for compact design applications. 8 bit Mid-Range PIC core with a 35-instruction set and 8-level hardware stack. 20 MHz maximum operating clock frequency with 8.192 kB FLASH program memory.

24 programmable I/O pins with multiple peripherals including ADC, timers, and communication ports. Wide operating voltage range of 2 V to 5.5 V with max 800 mW power dissipation. Industrial temperature range (-40°C to 125°C) with AEC-Q101 automotive standard compliance.

Integrated oscillator factory-calibrated for ±1% accuracy. Developed for embedded, automotive, industrial control, and consumer electronics.

This microcontroller is suitable for efficient digital control, sensing, and communication tasks in industrial and automotive sectors, offering both robustness and flexibility for diverse embedded system designs. It enables developers to implement reliable firmware with comprehensive peripheral integration.
