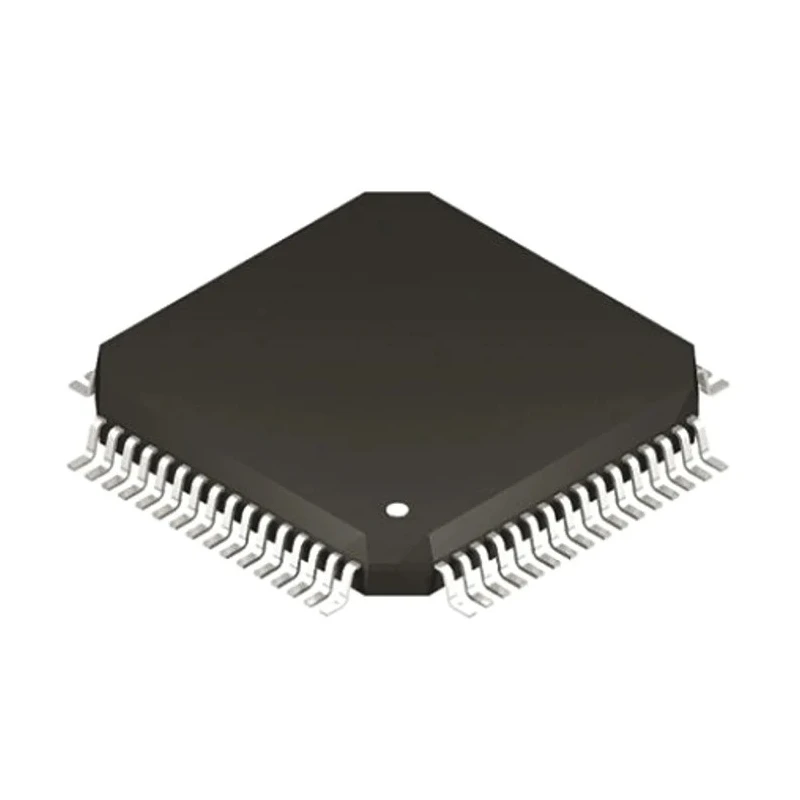

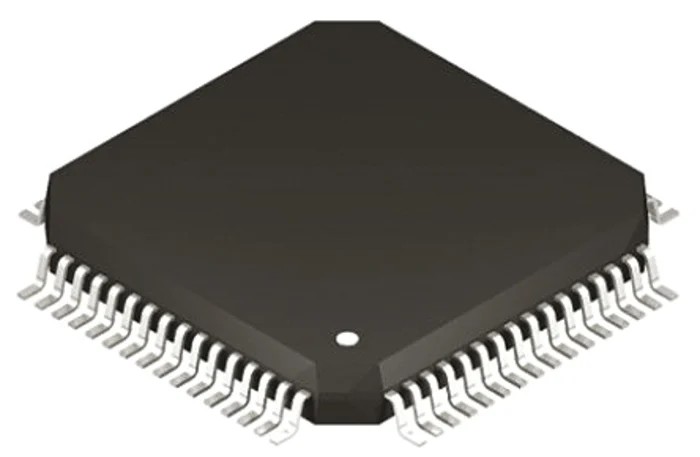

Microchip 8-bit PIC18F Microcontroller 64 MHz 128kB FLASH 64-Pin TQFP PIC18F67J94-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F67J94-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 128kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- The microcontroller operates at a maximum supply voltage of 5.5V and a minimum of 2V.
- It features a RISC instruction set architecture and 4kB RAM size.
- Equipped with 22 programmable I/Os and 16 channels of 12-bit ADCs for analog input processing.
- The microcontroller has a maximum power dissipation of 1W and operates within temperature range of -40°C to 85°C.
- Surface mount device with a compact 10mm x 10mm x 1.05mm TQFP package.
- Includes 3 analog comparators and 4 timers for timing and control tasks.
- Designed following RoHS compliance standards ensuring environmental safety.
Product Description
Microchip PIC18F67J94-I/PT is a high-performance 8-bit PIC microcontroller designed for diverse applications requiring efficient processing and reliable operation. It runs at a maximum clock frequency of 64 MHz, making it suitable for complex embedded systems that demand quick computation.
This microcontroller provides 128kB of FLASH program memory and 4kB of RAM, supporting extensive instruction and data storage for sophisticated software routines. It employs a RISC architecture for streamlined and efficient instruction execution.
The device features a 64-pin TQFP surface mount package with dimensions of 10mm by 10mm and height of 1.05mm, allowing compact PCB layouts and easy integration into modern electronics manufacturing processes.
Operating voltage ranges from a minimum of 2V to a maximum of 5.5V, supporting a variety of power supply configurations. It also dissipates up to 1 watt of power, balancing performance and heat management effectively.
Equipped with 22 programmable input/output pins, 16 channels of 12-bit analog-to-digital converters (ADCs), 3 analog comparators, and 4 timers, the microcontroller supports versatile interfacing, precision measurement, and timing control for industrial, automotive, consumer electronics, and embedded control applications.
The device operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for harsh environments and extended industrial use. Conforming to RoHS environmental standards, it ensures reduced chemical hazards and compliance with global regulations.
The microcontroller operates at a maximum supply voltage of 5.5V and a minimum of 2V. It features a RISC instruction set architecture and 4kB RAM size. Equipped with 22 programmable I/Os and 16 channels of 12-bit ADCs for analog input processing.
The microcontroller has a maximum power dissipation of 1W and operates within temperature range of -40°C to 85°C. Surface mount device with a compact 10mm x 10mm x 1.05mm TQFP package. Includes 3 analog comparators and 4 timers for timing and control tasks.
Designed following RoHS compliance standards ensuring environmental safety.
This microcontroller is ideal for applications in embedded system design, industrial automation, automotive electronics, consumer devices, and other complex microprocessor-based projects. It supports efficient development with Microchip’s ecosystem including design tools, documentation, and support resources.
Explore related Microcontrollers and components on EnvMart for your electronics and semiconductor sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC18F67J94-I/PT operates at a maximum clock frequency of 64 MHz.
It features a program memory size of 128kB FLASH.
This model is equipped with 22 programmable input/output pins.
The operating temperature range is from -40°C to 85°C.
It has a maximum power dissipation of 1W.
It supports 16 channels of 12-bit analog-to-digital converters (ADCs).
The TQFP package dimensions are 10mm x 10mm with a height of 1.05mm.
It employs a RISC instruction set architecture for efficient processing.
The minimum supply voltage is 2V and the maximum supply voltage is 5.5V.
This microcontroller includes 4 timers for timing and control tasks.
Yes, it is designed following RoHS compliance standards, ensuring environmental safety.
The RAM size is 4kB.
