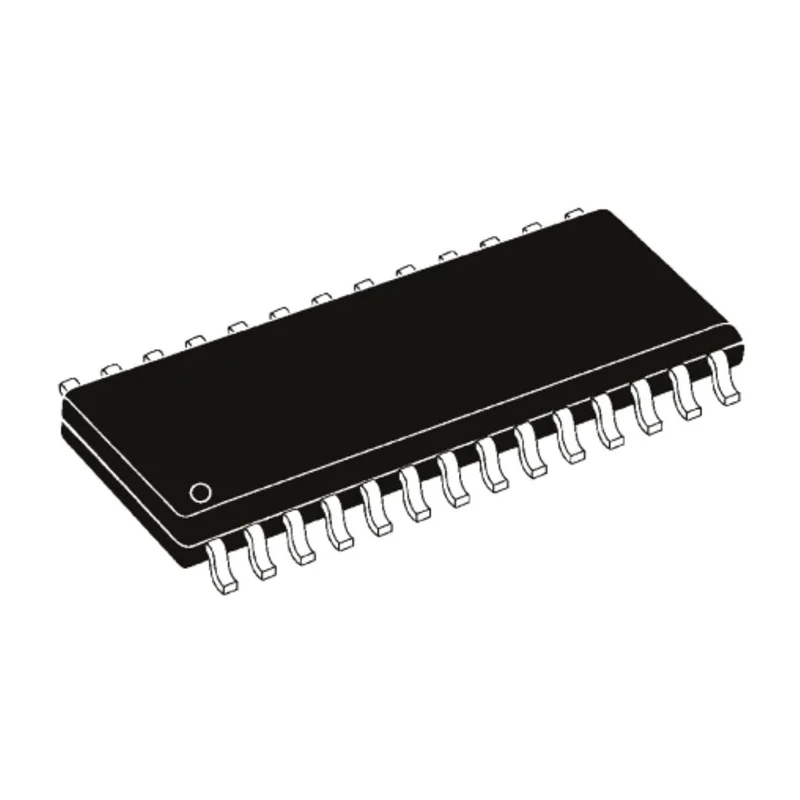

Microchip 8 bit PIC PIC18F Microcontroller 40 MHz 16kB FLASH 28-Pin SOIC PIC18F2420-E/SO

Microchip PIC18F2420-E/SO is an advanced 8-bit PIC microcontroller optimized for embedded control applications. Featuring a maximum clock frequency of 40 MHz and 16kB FLASH program memory, it offers robust processing performance within a compact 28-pin SOIC surface mount package. The device operates between 4.2V and 5.5V supply voltages with a maximum power dissipation of 1W, making it suitable for low-power and energy-sensitive applications.

Based on Microchip's PIC18 architecture, this microcontroller features a 31-level hardware stack and executes 75 instructions, extendable up to 83 with the Enhanced Instruction Set. It includes 768-bit RAM, 25 programmable input/output pins, and integrated peripherals catering to various industrial and commercial embedded uses.

The device's analogue features include 10 channels of 10-bit ADC and two analogue comparators enabling precise sensor interfacing and control. Multiple timer modules and enhanced capture, compare, PWM modules provide flexible timing and waveform output functionality. Additional features include Power-On Reset, Brown-Out Reset, Watchdog Timer, and oscillator start-up timers to enhance system reliability.

Its extended operating temperature range (-40°C to 125°C) supports deployment within industrial and automotive-grade environments. The microcontroller includes nanoWatt technology, which minimizes power consumption for battery-operated and portable systems. The package dimensions are 17.9mm length, 7.5mm width, and 2.35mm height.

This model complies with RoHS directives ensuring reduced hazardous substance usage, aligning with global environmental standards. Operates at 40 MHz clock frequency and 16kB FLASH program memory. Includes 768-bit RAM and 25 programmable I/O pins.

Supports multiple timers and PWM for complex timing operations. Features extended temperature range and nanoWatt low power consumption technology. Integrated 10-bit ADC channels and analogue comparators. RoHS compliant and compact SOIC surface mount package.

This microcontroller is ideal for embedded electronics, industrial automation, consumer devices, and automotive applications requiring reliable performance in harsh conditions. Explore the Microcontroller category on EnvMart to find this and other Microchip products.
