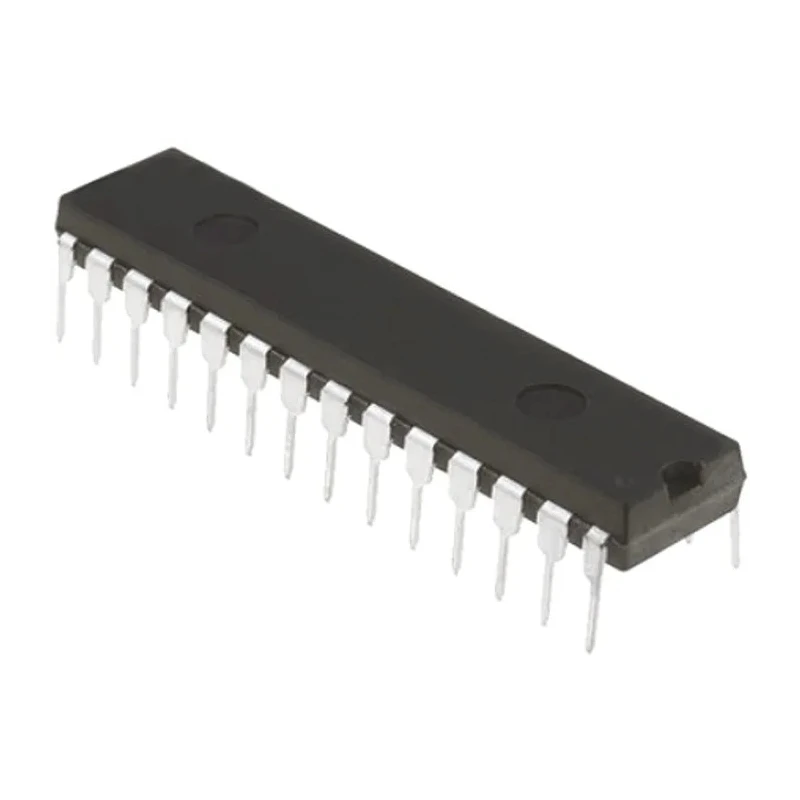

Microchip 8-bit PIC18F Microcontroller 64 MHz 8.192kB FLASH 28-Pin PDIP PIC18F23K22-I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC18F23K22-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | SPI |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 8.192kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 1, 3 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- This microcontroller features a PIC core with RISC architecture for efficient processing.
- It operates with a voltage range of 1.8V to 5.5V, suitable for various embedded applications.
- Equipped with 512 bits of RAM and 8.192kB of flash program memory for flexible coding.
- Includes multiple peripherals such as SPI interface, ADCs, DAC, timers, and analogue comparators.
- Designed for through-hole mounting with a 28-pin PDIP form factor for easy prototyping.
- Operates reliably within a temperature range of -40°C to 85°C.
- Maximum power dissipation of 1 Watt ensures low energy consumption.
- Ideal for industrial, automotive, consumer electronics, and embedded system applications.
Product Description
The Microchip PIC18F23K22-I/SP is an advanced 8-bit microcontroller designed with a PIC core and employing RISC architecture, delivering a maximum clock speed of 64 MHz. It comes with 8.192kB of flash program memory and 512 bits of RAM, enabling efficient code storage and execution for complex embedded system tasks.
Encased in a 28-pin PDIP through-hole package, this microcontroller supports SPI interface, multiple ADC channels (17 x 10 bit), and includes a 1 x 5 bit DAC along with two analogue comparators that enhance its signal processing capabilities. Its operating voltage ranges from 1.8V to 5.5V, ensuring compatibility with various power supplies.
The device supports a broad temperature range from -40°C to 85°C and offers a maximum power dissipation of 1W, which underscores its suitability for industrial and automotive embedded applications requiring reliable performance in harsh environments.
The chip features a total of 25 programmable I/O pins and multiple timers (1 and 3), which accommodate diverse timing and control requirements in embedded designs. Its program memory type is flash, allowing for easy code updates and flexibility during development.
Common applications for this product include industrial control systems, automotive electronics, consumer devices, and educational projects. The through-hole PDIP package facilitates easy prototyping and integration into printed circuit boards, especially in developmental environments where ease of replacement and handling is critical.
This microcontroller is part of the Microchip PIC18F series, known for robust performance, ease of programming, and extensive support for peripherals. It is an excellent choice for embedded systems engineers and developers aiming to implement reliable control and interfacing solutions.
This microcontroller features a PIC core with RISC architecture for efficient processing. It operates with a voltage range of 1.8V to 5.5V, suitable for various embedded applications. Equipped with 512 bits of RAM and 8.192kB of flash program memory for flexible coding.
Includes multiple peripherals such as SPI interface, ADCs, DAC, timers, and analogue comparators. Designed for through-hole mounting with a 28-pin PDIP form factor for easy prototyping. Operates reliably within a temperature range of -40°C to 85°C.
Maximum power dissipation of 1 Watt ensures low energy consumption. Ideal for industrial, automotive, consumer electronics, and embedded system applications. Complies with standard mounting and packaging conventions facilitating integration into custom PCBs.
Explore more Microcontroller options and related semiconductor components on EnvMart for advanced embedded system design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC18F23K22-I/SP microcontroller is 64 MHz.
It operates with a voltage range of 1.8V to 5.5V, making it suitable for various embedded applications.
This model is equipped with 8.192kB of flash program memory, allowing for flexible coding.
It includes multiple peripherals such as an SPI interface, 17 ADC channels, a 5-bit DAC, timers, and two analogue comparators.
The PIC18F23K22-I/SP operates reliably within a temperature range of -40°C to 85°C.
This microcontroller is designed in a 28-pin PDIP package type for through-hole mounting, facilitating easy prototyping.
The PIC18F23K22-I/SP features a total of 25 programmable I/O pins.
The maximum power dissipation is 1 Watt, ensuring low energy consumption.
This model is equipped with 512 bits of RAM.
The PIC18F23K22-I/SP supports a total of four timers: one 16-bit timer and three 8-bit timers.
It employs a RISC architecture for efficient processing.
It is ideal for applications in industrial control systems, automotive electronics, consumer devices, and educational projects.
