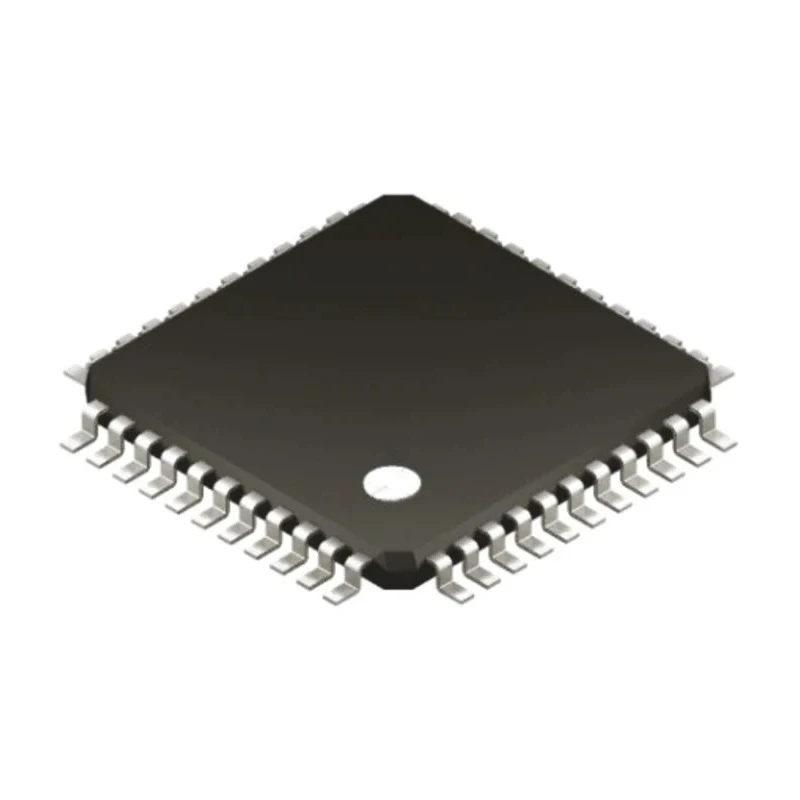

Microchip 8 bit PIC Microcontroller 64 MHz 64kB FLASH 44-Pin TQFP PIC18F46K80-E/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F46K80-E/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 125°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.65kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 15 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 64kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes RISC architecture for efficient processing.
- Operates within a voltage range of 1.8V to 5.5V.
- Incorporates 3.65kB RAM and 15 programmable I/O pins.
- Features 11 x 12-bit ADC channels and 2 analogue comparators.
- Designed for operation from -40°C up to 125°C.
- Supports five timers for versatile timing applications.
- Ensures power dissipation rating of up to 800mW.
- Surface mount package type TQFP measures 10 x 10 x 1.05 mm.
Product Description
Microchip PIC18F46K80-E/PT is an 8 bit PIC microcontroller featuring a 64 MHz maximum clock frequency and 64kB of FLASH memory, housed in a compact 44-Pin Thin Quad Flat Package (TQFP). Designed for high-performance embedded control, it utilizes a Reduced Instruction Set Computing (RISC) architecture to deliver efficient computation.
This microcontroller operates over a wide supply voltage range from 1.8V to 5.5V, with a maximum power dissipation of 800mW, making it suitable for diverse industrial and commercial applications.
Equipped with 3.65kB RAM and 15 programmable I/O pins, it facilitates flexible interfacing capabilities. The device includes 11 channels of 12-bit Analog to Digital Converters (ADC) and two analogue comparators offering precision analog input processing.
With an operating temperature range from -40°C to 125°C, the PIC18F46K80-E/PT is suitable for automotive and harsh-environment usage. It features five timers to support complex timing and control functions.
RISC architecture enables efficient instruction execution. Surface mount TQFP package ensures compact PCB design. RoHS compliance highlights environmental responsibility. Operates reliably across a broad temperature range.
Ideal for embedded systems, industrial automation, and automotive control. Includes multiple ADC channels for analog sensor integration. Provides ample programmable I/Os for versatile applications. Low power operation supports energy-conscious designs.
Multiple timers support real-time control tasks. Compact dimensions: 10mm width, 10mm length, and 1.05mm height.
The Microchip PIC18F46K80-E/PT microcontroller is a robust solution for designers seeking a balance of performance, low power consumption, and a rich feature set for embedded electronics development. Explore EnvMart for a comprehensive range of Microcontrollers and electronic components to enhance your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It operates within a voltage range of 1.8V to 5.5V.
This microcontroller is equipped with 3.65 kB of RAM.
The TQFP package measures 10 mm in length, 10 mm in width, and 1.05 mm in height.
It features 15 programmable I/O pins for flexible interfacing capabilities.
The operating temperature range is from -40°C to 125°C.
This microcontroller includes 11 channels of 12-bit Analog to Digital Converters (ADC).
The maximum power dissipation rating is up to 800 mW.
It utilizes a Reduced Instruction Set Computing (RISC) architecture for efficient processing.
This model includes five timers to support various timing applications.
Yes, it is RoHS compliant, highlighting its environmental responsibility.
The program memory size is 64 kB of FLASH memory.
