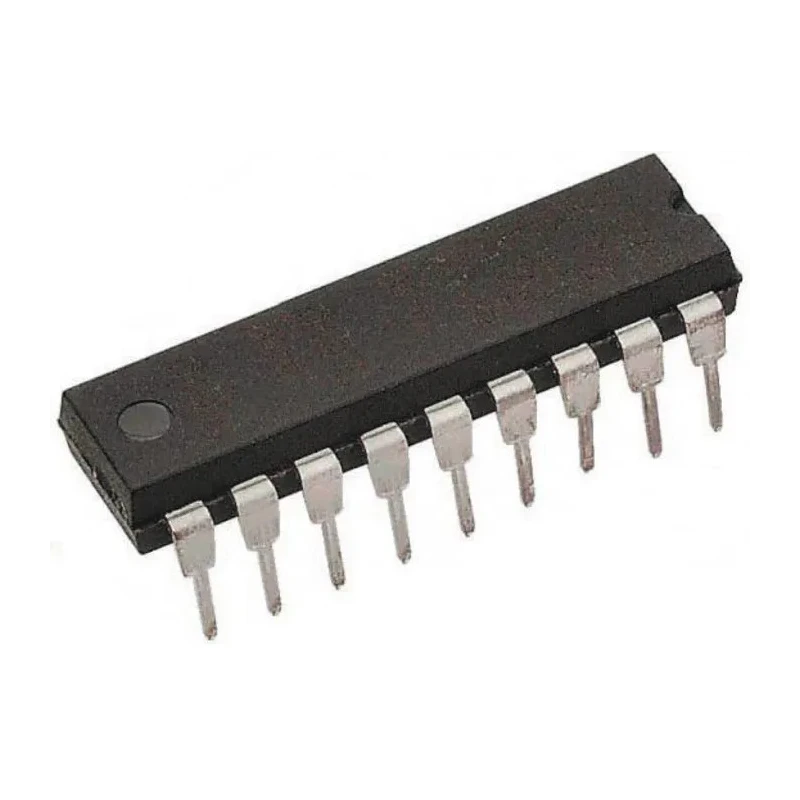

Microchip 8 bit PIC Microcontroller, PIC16F Series, 20 MHz, 7kB FLASH, 18-Pin PDIP PIC16F88-E/P

Microchip PIC16F88-E/P is an 8-bit microcontroller from the PIC16F family equipped with a 20 MHz maximum clock frequency and 7kB of FLASH program memory. It is packaged in an 18-pin PDIP through-hole format, making it suitable for easy integration into various embedded systems.

This device is based on the Mid-range PIC architecture, featuring a 35-instruction set and an 8-level hardware stack that delivers up to 5 MIPS performance. Its 8-bit data bus width operates efficiently for control-oriented applications.

It contains 16 programmable I/O pins and includes peripherals such as a 10-bit ADC, 3 timers (two 8-bit and one 16-bit), a Capture/Compare/PWM module, as well as synchronous serial ports supporting SPI and I2C protocols. The device also includes an AUSART for asynchronous serial communications.

The microcontroller operates within a wide voltage range of 4V to 5.5V and supports an operating temperature range from -40°C to 125°C. Power management features like Power-On Reset (POR), Brown-Out Reset (BOR), and Watchdog Timer (WDT) ensure operational reliability and system stability in demanding environments.

The 18-pin PDIP package measures approximately 23.37 mm in length, 7.11 mm in width and 4.95 mm in height. This package type is ideal for through-hole PCB mounting and prototyping.

Microchip PIC16F88-E/P is RoHS compliant and widely used in industrial, embedded, and consumer electronics requiring reliable and efficient microcontroller solutions. It enables applications in automation, sensor interfacing, control systems, and communication protocols with integrated hardware support.

The device is based on the PIC16F series with RISC architecture for efficient processing. Operates at maximum clock frequency of 20 MHz ensuring fast execution. Equipped with 7kB program memory (FLASH) and 368 bits RAM for flexible application use.

Features 16 programmable I/O pins and 2 analogue comparators for versatile interfacing. Supports various built-in peripherals including ADC, timers, CCP module, SPI, I2C, and USART communication protocols. Provides a robust operating temperature range from -40°C to 125°C suitable for industrial environments.

Incorporates power management including Power-On Reset (POR), Brown-Out Reset (BOR), and Watchdog Timer (WDT). PDIP through-hole package with dimensions approximately 23.37mm length, 7.11mm width, and 4.95mm height facilitates easy mounting.

Design supports in-circuit programming and debugging with ICSP and ICD capability. Compliant with RoHS standards ensuring environmental safety and quality. Explore other Microchip Microcontrollers and embedded system components within the EnvMart catalog to enhance your industrial and electronics design projects.
