Microchip 8 Bit PIC PIC18F Microcontroller 64 MHz 64kB FLASH 28-Pin QFN PIC18F26K80-E/MM

Microchip PIC18F26K80-E/MM is a high-performance 8 bit PIC microcontroller designed for embedded electronics requiring reliable, compact, and efficient processing capabilities. It operates at a maximum clock frequency of 64 MHz and includes 64kB of FLASH program memory, making it suitable for a wide range of industrial, laboratory, and commercial applications.

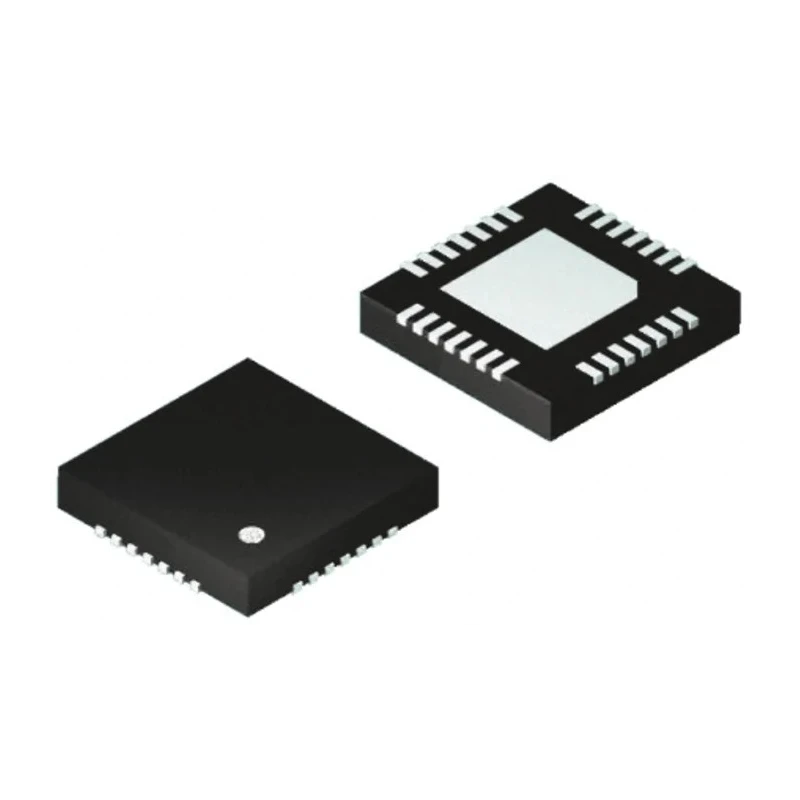

This microcontroller features a 28-Pin QFN package with surface mount mounting, providing a compact dimension of 6 mm length, 6 mm width, and a height of 950μm. It supports a data bus width of 8 bits with a PIC core and Harvard instruction set architecture for optimized instruction execution and power efficiency.

Designed to operate under extreme conditions, the device supports a wide operating temperature range from -40°C to 125°C and a flexible supply voltage range from 1.8V to 5.5V. It integrates 3.65kB of RAM and up to 64kB of expandable memory for versatile program requirements and includes 2 analogue comparators and 8 channels of 12-bit ADCs for precise analog input measurements.

The microcontroller has 2 to 3 timers for timing control and includes 3 programmable I/Os to facilitate various digital input/output configurations. Its maximum power dissipation is rated at 1W, balancing power consumption with performance needs.

Being RoHS compliant, this product is environmentally friendly and suitable for modern electronics manufacturing standards.

Typical use cases include embedded control systems, industrial automation, instrumentation, and other electronic devices needing a reliable 8 bit microcontroller with ample memory and peripheral integration.

Explore the category of Microcontrollers for a variety of similar products tailored for electronic development and industrial applications at EnvMart. Operates with an 8 bit PIC core architecture providing efficient processing.

Includes 3.65kB RAM and 64kB expandable memory capacity. Features 8 x 12 bit ADC channels and 2 analogue comparators for accurate signal processing. Supports surface mount installation with a compact 6mm x 6mm x 950μm footprint.

Designed for high reliability operating from -40°C to 125°C temperature range. Maximum supply voltage of 5.5V and minimum supply voltage of 1.8V for flexible power applications. Equipped with 2 to 3 timer modules and 3 programmable I/Os for versatile control options.

Utilizes Harvard instruction set architecture supporting FLASH program memory type. Complies with RoHS environmental standards ensuring lead-free manufacturing. Maximum power dissipation rating of 1W suitable for moderate power embedded designs.
