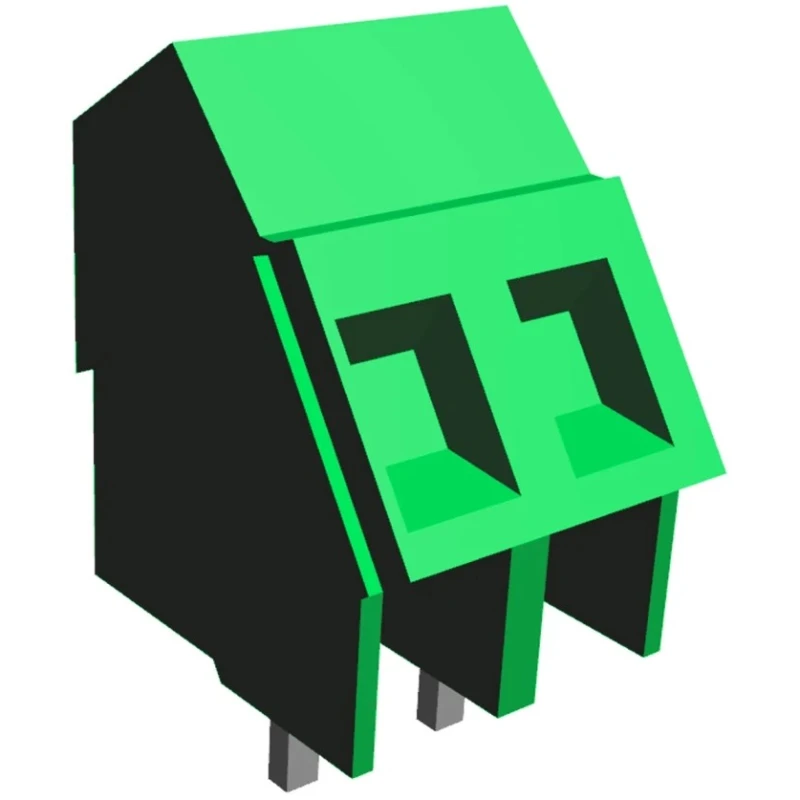

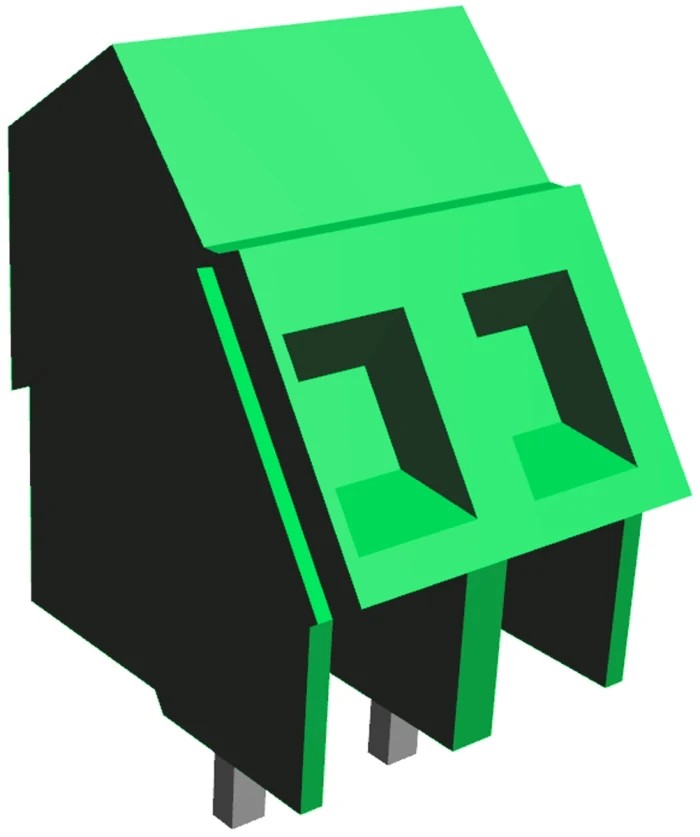

TE Connectivity Buchanan Series Pluggable Terminal Block, 2-Contact, 5 mm Pitch, 1 Row, 17.5A, 300V Voltage, Nylon 796690-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Angled |
| Current | 17.5A |
| Length | 10mm |
| Model | 796690-2 |
| Depth | 12.5mm |
| Housing Material | Nylon |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Screw |
Key Features
- Constructed with durable green nylon housing for enhanced insulation and performance.
- Features angled wire entry with a 35° wire entry angle for easier installation on PCBs.
- Supports a wide wire range from 30 AWG to 12 AWG for versatile connectivity.
- Utilizes screw termination method for secure wire connections.
- Designed as a vertical mount PCB terminal block with M3 screw clamp terminals.
- Complies with RoHS standards ensuring environmentally safe materials.
- Compact dimensions with a length of 10 mm and depth of 12.5 mm for space-efficient PCB layout.
Product Description
TE Connectivity 796690-2 is a Buchanan Series Pluggable Terminal Block designed for reliable electrical connections in industrial, electronic, and manufacturing applications. This component features a 2-contact configuration with a 5 mm pitch and a single row, optimized for printed circuit boards (PCBs) with a vertical mount design.
The terminal block is constructed with high-quality green nylon housing, providing excellent insulation and durability. The 35° angled wire entry allows for efficient wiring access and simplified installation, making it suitable for compact assemblies.
It supports a current rating of 17.5A and a voltage rating up to 300V, covering a broad range of low to medium power electronic equipment requirements. The screw connection method offers secure and maintenance-friendly wire termination, compatible with wire sizes ranging from 30 AWG to 12 AWG, equating to 0.05 mm² to 3 mm² cross-sectional area.
The product complies with RoHS environmental standards, ensuring it is free from hazardous substances. Its compact length of 10 mm and depth of 12.5 mm allows for efficient space utilization on circuit boards.
Durable green nylon housing for insulation and longevity. 35° angled wire entry for easy access and installation. Rated for 17.5A current and 300V voltage applications. Screw type connection suitable for wire sizes 30 AWG to 12 AWG.
Single-row, 2-contact configuration with 5 mm pitch. RoHS compliant for environmental safety. Compact PCB mounting with length 10 mm and depth 12.5 mm.
This pluggable terminal block is widely used in electronics manufacturing, control panels, HVAC systems, and industrial machinery requiring dependable and easily serviceable electrical connections. Browse further to find TE Connectivity products and other high-quality pluggable terminal blocks in the EnvMart catalog.
Explore more products in our Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 17.5A and a voltage of 300V, suitable for a range of low to medium power electronic applications.
It supports wire sizes ranging from 30 AWG to 12 AWG, which corresponds to a cross-sectional area of 0.05 mm² to 3 mm².
The terminal block features a 5 mm pitch and has a 2-contact configuration in a single row design.
The housing of this terminal block is constructed from durable green nylon, providing excellent insulation.
It utilizes a screw connection method, allowing for secure and maintenance-friendly wire termination.
This unit has a length of 10 mm and a depth of 12.5 mm, making it compact for PCB layout.
It features an angled wire entry with a 35° angle, facilitating easier installation on printed circuit boards.
Yes, it complies with RoHS standards, ensuring it is free from hazardous substances and environmentally safe.
It is widely used in electronics manufacturing, control panels, HVAC systems, and industrial machinery requiring reliable electrical connections.
This terminal block is manufactured in India.
This model has a single row configuration, making it suitable for compact installations.
