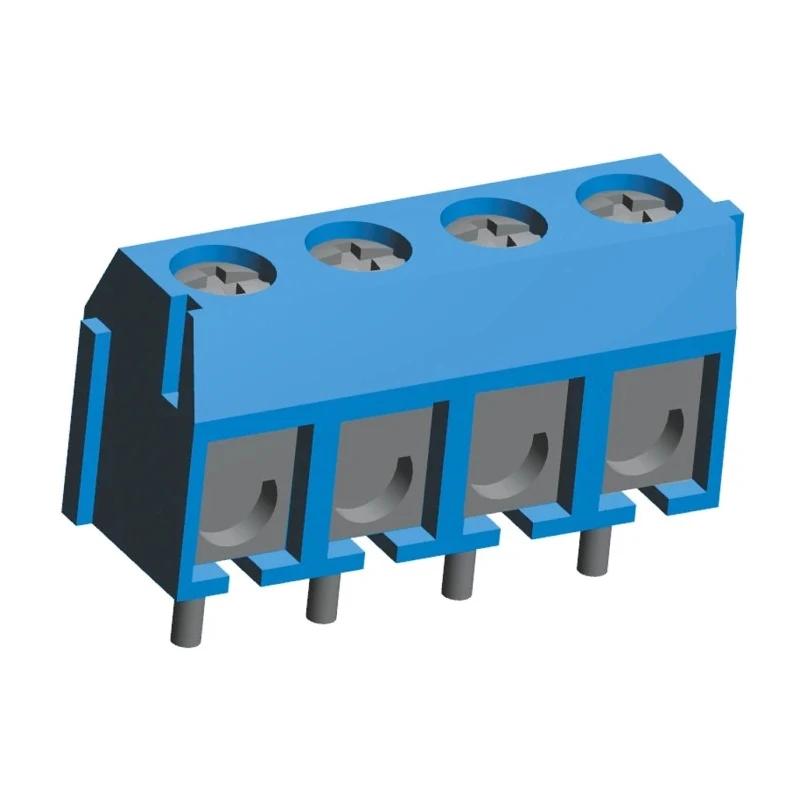

TE Connectivity Buchanan Series 4-Contact 5 mm Pitch 1 Row PCB Terminal Block 300V 10A 1776244-4
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | TE Connectivity |
| Colour | Blue |
| Orientation | Vertical |
| Current | 10A |
| Length | 20.58mm |
| Depth | 10mm |
| Width | 7.5mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 22AWG |
Key Features
- Features a 5 mm pitch and 1 row design for efficient PCB mounting.
- Supports currents up to 10A for safe electrical conduction.
- Constructed with a polyamide housing for high temperature resistance.
- Accepts wire sizes from 14 AWG to 22 AWG making it versatile.
- Includes a stainless steel wire guard to protect wires from screw damage.
- Vertical orientation with blue color housing for easy identification.
- Operating voltage rating of 300V suitable for various applications.
- Designed with male connector gender and board interlock for stability.
Product Description
TE Connectivity 1776244-4 Buchanan Series PCB Terminal Block is a high-quality electrical connector designed for PCB applications, featuring a 5 mm pitch and single row configuration. This 4-contact terminal block supports a current rating of 10A and is manufactured with a polyamide housing providing high temperature resistance and durability.
The terminal block accommodates wire sizes ranging from 14 AWG to 22 AWG through M2.6 screw terminals. It incorporates a stainless steel wire guard that prevents direct pressure of screws on wires, enhancing connection reliability and safety. The vertical orientation and blue-colored housing provide practical installation and visual distinction.
Its compact form factor with dimensions of 20.58 mm length, 7.5 mm width, and 10 mm depth allows efficient use of PCB space. The male connector gender and board interlock features ensure firm connection and mechanical stability in industrial, electronic manufacturing, automation, and control systems.
This product is ideal for use in electronic equipment, power connectors, industrial automation, instrumentation, and manufacturing applications requiring dependable electrical contact and ruggedness.
Features a 5 mm pitch and 1 row design for efficient PCB mounting. Supports currents up to 10A for safe electrical conduction. Constructed with a polyamide housing for high temperature resistance. Accepts wire sizes from 14 AWG to 22 AWG making it versatile.
Includes a stainless steel wire guard to protect wires from screw damage. Vertical orientation with blue color housing for easy identification. Operating voltage rating of 300V suitable for various applications. Compact dimensions: length 20.58 mm, width 7.5 mm, depth 10 mm.
Designed with male connector gender and board interlock for stability. Manufactured in China with high-quality standards. For exploring more high-quality Connectors and terminal blocks, browse the extensive TE Connectivity category on EnvMart for industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 10A, ensuring safe electrical conduction for various applications.
The operating voltage rating is 300V, making it suitable for a range of electrical applications.
The dimensions are 20.58 mm in length, 7.5 mm in width, and 10 mm in depth, allowing for efficient PCB space utilization.
It features a vertical orientation, which aids in practical installation.
The housing is blue, which helps in easy identification during installation.
Yes, it includes a stainless steel wire guard that protects wires from screw damage, enhancing connection reliability.
It is manufactured in China, adhering to high-quality standards.
This model is part of the Buchanan series, which is known for its reliable PCB connections.
