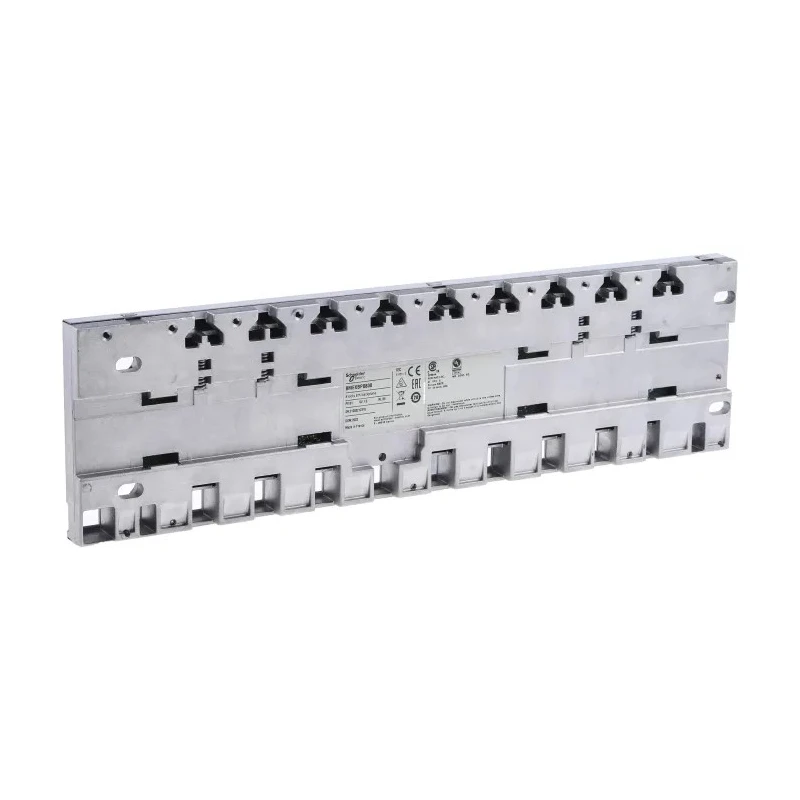

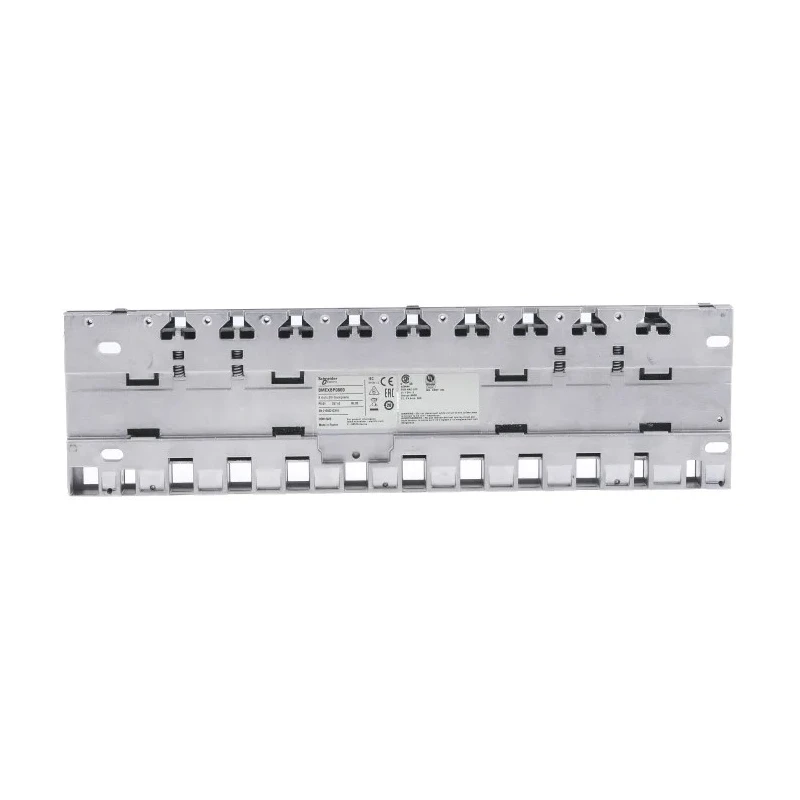

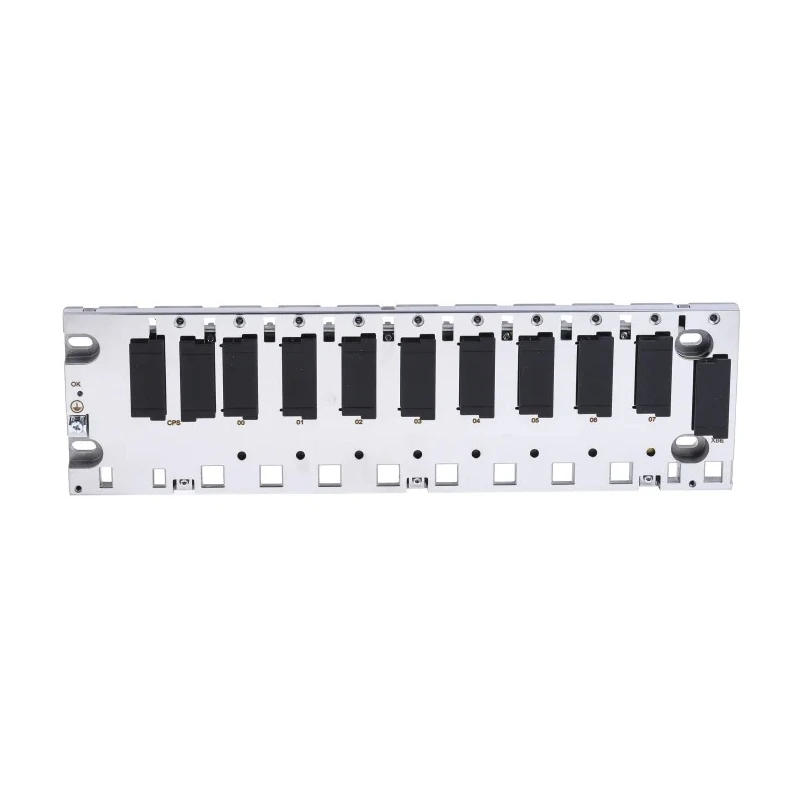

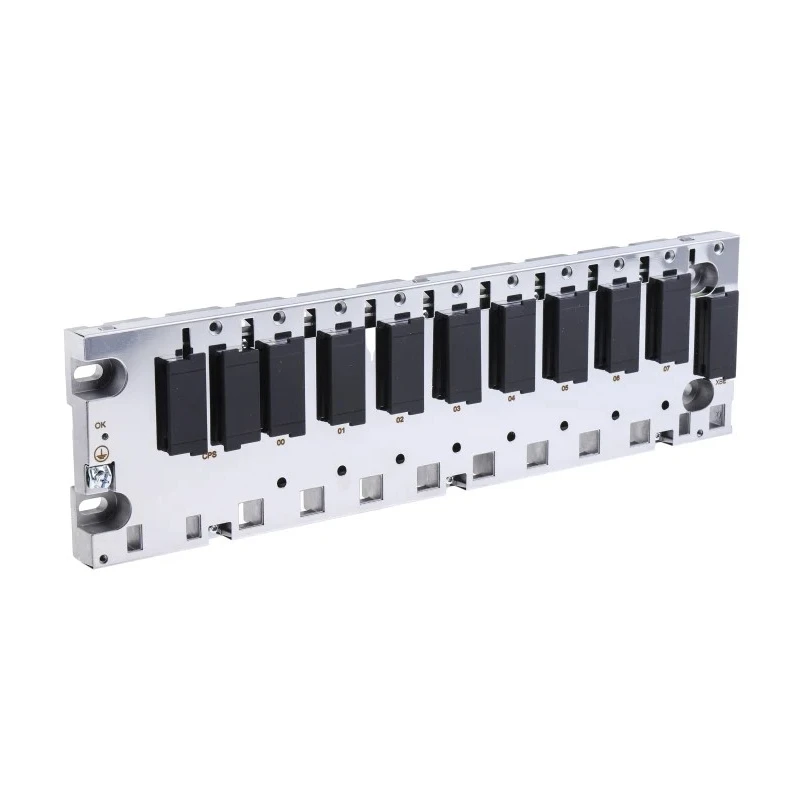

Schneider Electric Modicon X80 Series Backplane, Analogue Digital Input Output, Ethernet USB Communication BMEXBP0800

Schneider Electric BMEXBP0800 is a Modicon X80 Series Backplane designed to provide reliable and versatile connectivity for analogue and digital inputs and outputs. It operates with a robust Ethernet backbone and USB ports, making it suitable for modern industrial automation systems. This backplane supports the Modicon M580 series programmable automation controllers, offering high-performance computation and flexible communication options.

The backplane is engineered to support dual Ethernet and X-bus connections, with an embedded Ethernet switch that enables connectivity to selected slots. This allows seamless integration of various PLC and I/O modules. Available with 4, 8, or 12 slots, it provides scalability to meet diverse application requirements.

It supports a wide range of programming languages including Instruction List (IL), Structured Text (ST), Ladder Diagram (LD), Function Block Diagram (FBD), and Sequential Function Chart (SFC), allowing easy customization of control strategies. The product is DIN Rail mounted for straightforward installation in industrial control panels.

Operating reliably within temperatures of 0°C to 60°C, the backplane complies with major international safety and quality standards including CE, CSA, EAC, RCM, and UL. While it includes display functionality, it does not feature battery backup.

Schneider Electric emphasizes sustainability through its Better World program. This backplane is designed for disassembly, supporting end-of-life recycling and reducing environmental impact. Manufactured in France, it meets high standards of durability and environmental responsibility.

Supports Ethernet and X-bus Backplanes with embedded Ethernet switch for network connectivity. Available in configurations of 4, 8, or 12 slots to accommodate various modules. Designed for DIN Rail mounting compatible with Modicon M580 series controllers.

Operating temperature range from 0°C to 60°C suitable for industrial use. Compliant with CE, CSA, EAC, RCM, and UL international approvals. Flexible programming languages supported including IL, ST, LD, FBD, and SFC. Includes display but no battery backup.

Constructed for sustainability with Designed for Disassembly claim under Better World program.

Ideal for industrial automation in manufacturing, HVAC control, building management, and water treatment systems requiring robust programmable logic control and reliable communication interfaces. Explore more Schneider Electric automation components and Modicon series products on EnvMart for your system integration needs.
