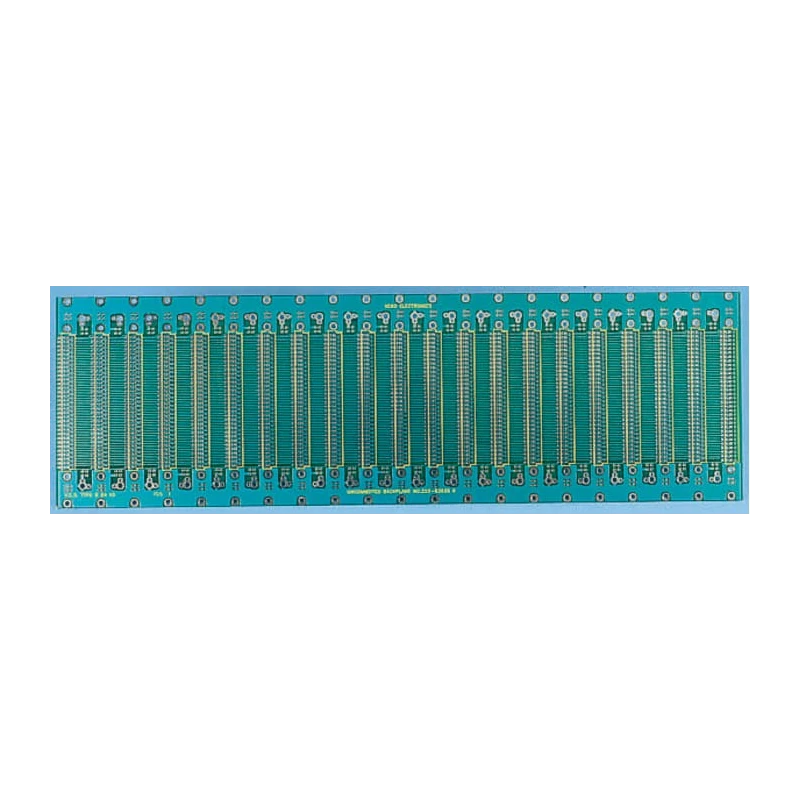

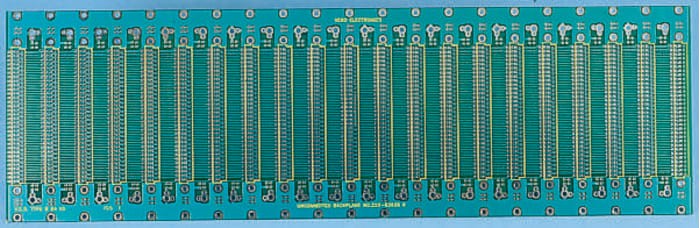

Vero Technologies 96 Way Eurocard Backplane Epoxy Glass Fabric Laminate 2 Sides 25.3 HP Horizontal Pitch 20.32 mm 222-63630

Vero Technologies 222-63630 is a 96 Way Eurocard Backplane constructed from high-quality epoxy glass fabric laminate with double-sided 2 layers. It features a 25.3 HP horizontal pitch and a connector pitch of 20.32 mm, conforming to Eurocard standards. This backplane is designed for advanced electronic component assembly requiring high contact density and reliable performance.

The backplane has 96 contacts for extensive connectivity, ideal for complex circuit routing in industrial and laboratory applications. The board thickness of 1.6 mm combined with a copper thickness of 35μm ensures durability and optimal electrical conductivity. External dimensions measure 420.8 mm in height and 20 mm in width, allowing for precise fitting in designated enclosures or chassis.

This backplane includes nut plates and supports power supply via M3 screws or 6.3 mm Faston connectors. Specifically designed through-holes allow for wiring to the series B as OV to reduce cross-talk on series A and B. Voltage supply pins 1, 2, 31, and 32 are connected via 2.54 mm bridges. Connecting strips enable linking of series A, B, and C to supply the same voltage efficiently. The ends of these strips fit into through-holes where voltage availability is required.

The product complies with standards BS 4584, EP-GC-Cu3 FR4, and RoHS, confirming its suitability for professional electronics manufacturing and environmental safety. Manufactured in the United Kingdom, it assures high quality and reproducibility for critical prototyping boards, backplanes, and motherboard assembly.

This backplane is supplied bare and connectors must be ordered separately to customize the configuration for specific industrial, laboratory, or manufacturing needs. It is a critical component in electronic assemblies including prototyping boards, cleanroom setups, and ESD control systems.

This backplane has 96 contacts to accommodate complex circuit connections. The board material is durable epoxy glass fabric laminate ensuring high performance. It has a board thickness of 1.6 mm suitable for Eurocard standards.

Copper thickness of 35μm ensures reliable electrical conductivity. External dimensions are 420.8 mm in height and 20 mm in width for precise integration. Nut plates and power supply options include M3 screws or 6.3 mm Faston connectors.

Designed with through-holes and connector wiring configuration to reduce cross-talk. Standards include BS 4584, EP-GC-Cu3 FR4, and RoHS compliance. Manufactured in the United Kingdom ensuring quality and reliability. Discover more electronics components and Backplane solutions from Vero Technologies on EnvMart for industrial and laboratory applications.
