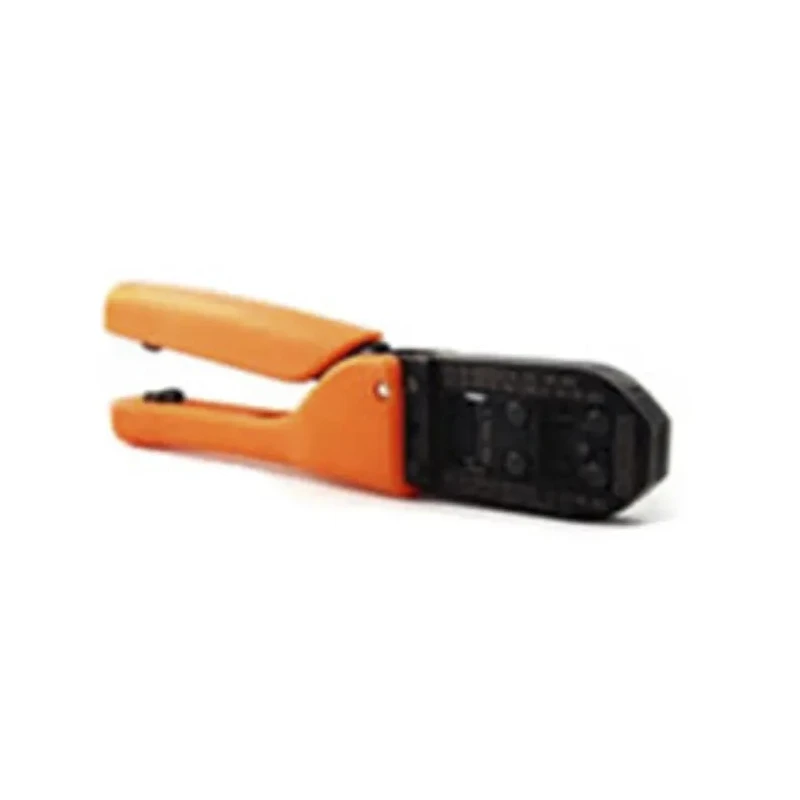

Samtec CAT Crimp Tool for CC69R Contacts, CC69L Contacts CAT-HT-169-1620-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | CAT-HT-169-1620-13 |
| Series | CAT |
| For Use With | CC69R Contacts, CC69L Contacts |
| Standards/Approvals | RoHS |
| Minimum Wire Size mm² | 0.5 |
| Maximum Wire Size mm² | 1.3 |
| Minimum Wire Size AWG | 20AWG |
Key Features
- The tool facilitates precise crimping for secure electrical connections.
- Includes a locator for accurate positioning of contacts.
- Features a compact, portable design for ease of storage and handling.
- Equipped with a fixed crimper and movable anvil for enhanced crimp control.
- Best suited for low-volume applications requiring reliable results.
- Operates with a hand ratcheting mechanism for controlled operation.
- Compatible with wire cross-sectional areas from 0.5 mm² up to 1.3 mm².
Product Description
Samtec CAT-HT-169-1620-13 is a specialized crimp tool engineered for use with CC69R and CC69L contacts. This hand-operated tool supports wire sizes ranging from 20 AWG to 16 AWG (0.5 mm² to 1.3 mm²), making it highly versatile for various electrical wiring tasks.
Its compact and ergonomic design allows for easy portability and storage, catering to technicians and professionals working in industrial, manufacturing, and electrical installation environments. The tool incorporates a locator to ensure contacts are positioned accurately before crimping, thereby enhancing the reliability of each connection.
The fixed crimper combined with a movable anvil provides precise crimping results, while the ratcheting mechanism ensures the tool remains secure during use and releases only after full cycle completion, preventing incomplete crimps.
This crimp tool is recommended for low to medium volume usage where precision and control are paramount. It is ideal for electrical wiring projects requiring secure contacts in industries such as industrial automation, control systems, and general electrical maintenance.
The tool provides exact positioning of contacts by use of a locator. Compact design supports portability and ease of storage. Fixed crimper and movable anvil ensure accurate crimps. Hand ratcheting mechanism enhances user control and consistency.
Suitable for wire sizes from 20 AWG to 16 AWG. Recommended for low-volume production scenarios.
Proper maintenance includes regular cleaning with a lint-free cloth and periodic light oiling at moving joints to preserve function and longevity. If the tool jams, pressing the ratchet release lever allows easy opening for clearing. This makes the tool durable and user-friendly for intermittent use cases.
Explore a broad range of high-quality hand tools and crimping solutions in the Industrial Tools & Equipment category on EnvMart for your professional needs.
Explore more products in our Crimp Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp tool supports wire sizes ranging from 20 AWG to 16 AWG, which corresponds to cross-sectional areas from 0.5 mm² to 1.3 mm².
It is designed for use with CC69R and CC69L contacts, ensuring precise crimping for secure electrical connections.
The tool operates using a hand ratcheting mechanism, which provides controlled operation and ensures the tool releases only after completing a full crimp cycle.
It includes a locator that ensures accurate positioning of contacts before crimping, enhancing the reliability of each connection.
This model is recommended for low to medium volume usage, particularly in applications where precision and control are important.
Regular maintenance includes cleaning with a lint-free cloth and periodic light oiling at moving joints to preserve its function and longevity.
The Samtec CAT-HT-169-1620-13 is manufactured in India.
It complies with RoHS standards, ensuring it meets environmental regulations regarding hazardous substances.
The tool features a compact and ergonomic design, making it easy to handle, store, and transport.
The combination of a fixed crimper and movable anvil provides enhanced control and accuracy during the crimping process.
If the tool jams, pressing the ratchet release lever allows for easy opening to clear the jam.
It is suitable for use in industrial automation, control systems, and general electrical maintenance applications.
