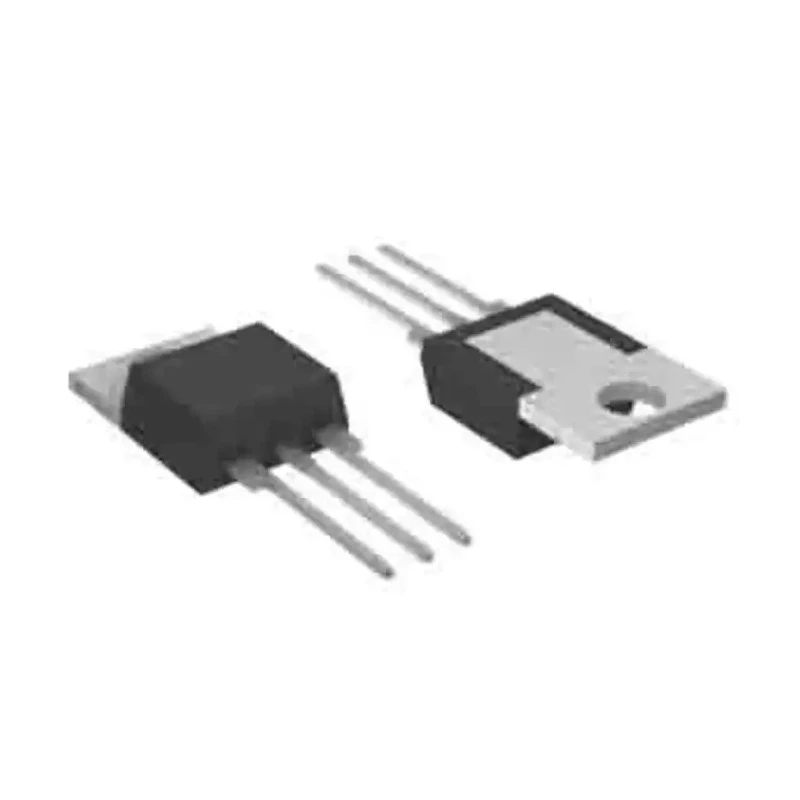

Littelfuse Thyristor SCR 600 V, 12 A, 6 mA Gate Trigger Current, 120 A Surge Current SV6012L1TP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Model | SV6012L1TP |
| Mount Type | Through Hole |
| Series | SVxx12xx |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220L |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 12A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 120A |
| Maximum Gate Trigger Current Igt | 6mA |
| Maximum Holding Current Ih | 35mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
Key Features
- This device features a TO-220L package ensuring robust mounting and thermal stability.
- Maximum gate trigger current of 6 mA allows precise triggering control.
- Designed for through hole mount applications with 3 pins for easy integration.
- Operates reliably in temperatures ranging from -40°C to 150°C for wide industrial use.
- Complies with RoHS standards for environmental safety and quality assurance.
- Maximum holding current is 35 mA ensuring stable operation after triggering.
Product Description
Littelfuse SV6012L1TP Thyristor SCR 600 V, 12 A is a high-performance semiconductor designed for industrial power control applications. Encased in a TO-220L package, this thyristor provides excellent thermal management and mechanical support suitable for through-hole mounting on printed circuit boards.
The device offers a repetitive peak reverse voltage (VDRM) of 600 V, suitable for medium voltage applications, and a surge current rating of 120 A to withstand transient overloads safely.
The maximum gate trigger current (Igt) is 6 mA, with a maximum holding current (Ih) of 35 mA, providing precise and stable switching capabilities essential in power electronics. Operating temperature range from -40°C to +150°C allows deployment in harsh industrial, manufacturing, and commercial environments.
Its three-pin configuration supports typical SCR control circuits used in power regulation, motor control, and HVAC systems. The SV6012L1TP is RoHS compliant, ensuring low environmental impact during manufacturing and disposal processes.
This Thyristor is ideal for industrial, laboratory, and manufacturing power control tasks requiring reliable switching over extended temperature ranges. The TO-220L package facilitates easy assembly and integration into through-hole circuit boards.
Robust electrical characteristics make it suitable for surge and steady-state current handling. Compliant with environmental standards, suited for global markets. Reliable component choice for semiconductor discrete device applications.
Explore Littelfuse products and other semiconductor solutions on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the Littelfuse SV6012L1TP thyristor is 150°C.
This model has a surge current rating of 120 A, allowing it to withstand transient overloads.
The maximum gate trigger current for the SV6012L1TP is 6 mA, which allows for precise triggering control.
The repetitive peak reverse voltage (VDRM) of this thyristor is 600 V, making it suitable for medium voltage applications.
This thyristor is designed for through-hole mounting, making it easy to integrate into printed circuit boards.
The Littelfuse SV6012L1TP has a three-pin configuration, which is typical for SCR control circuits.
The maximum holding current for this model is 35 mA, ensuring stable operation after triggering.
The SV6012L1TP comes in a TO-220L package, which provides robust mounting and thermal stability.
The minimum operating temperature of this thyristor is -40°C, allowing for use in harsh environments.
Yes, this thyristor complies with RoHS standards, ensuring low environmental impact during manufacturing and disposal.
This thyristor is suitable for industrial power control applications, including power regulation, motor control, and HVAC systems.
The SV6012L1TP belongs to the SVxx12xx series of thyristors, which are designed for various power control tasks.
