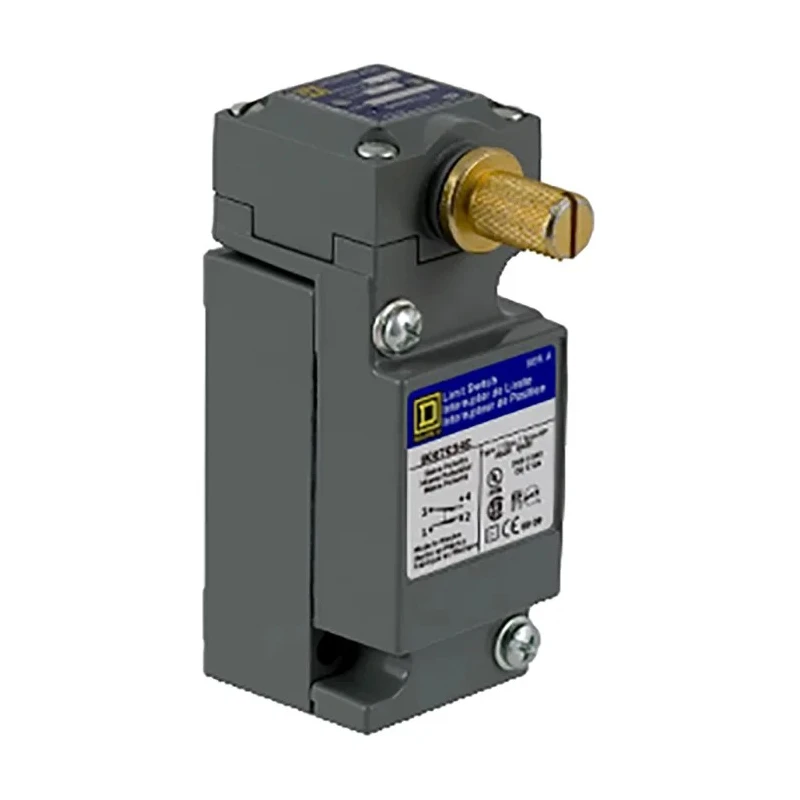

Telemecanique Sensors 9007 Series Rotary Head Limit Switch SPDT-DB, IP67, Metal Housing, 600V AC, 1.2A 9007C54CM11

Free Delivery in India | Lowest Global Shipping Charges

Telemecanique Sensors 9007 Series Rotary Head Limit Switch SPDT-DB, IP67, Metal Housing, 600V AC, 1.2A 9007C54CM11

Name: Telemecanique Sensors 9007 Series Rotary Head Limit Switch SPDT-DB, IP67, Metal Housing, 600V AC, 1.2A 9007C54CM11
Brand: Telemecanique Sensors
SKU: 248148
Price: 532.83 USD
Availability: InStock



Category Limit Switches Brand Telemecanique Sensors Condition New

Specifications

Country of Origin	Mexico
Brand	Telemecanique Sensors
Length	39.37mm
Model	9007C54CM11
Depth	102.11mm
IP Rating	IP67
Width	63.5mm
Housing Material	Metal
Series	9007
Maximum Operating Temperature	+185°F
Mounting Orientation	Vertical
Contact Configuration	SPDT-DB
Actuator Type	Rotary Head
Contact Type	Snap Action
Minimum Operating Temperature	-20°F
Switching Current	1.2A
Terminal type	Screw Clamp
Standards/Approvals	RoHS
Operating Force	3lb
Mechanical Life	10000000Cycles
Switching DC Voltage	600V dc
Switching AC Voltage	600V ac
Conduit Entry	M20

Key Features

Features a rotary head actuator suitable for precise position sensing.
Equipped with SPDT-DB contact configuration delivering snap action switching.
Rated for switching current of 1.2 A at 600 V AC/DC for reliable operation.
Designed with IP67 ingress protection to withstand harsh environments.
Constructed with durable metal housing for enhanced mechanical protection.
Supports temperatures from -20°F to +185°F ensuring wide operating range.
Utilizes screw clamp terminal type for secure electrical connections.
Mountable in vertical orientation with mechanical life expectancy of 10 million cycles.

Product Description

Telemecanique Sensors 9007C54CM11 rotary head limit switch is a highly durable and precise device designed for industrial automation and control systems. Featuring a robust metal housing and IP67 ingress protection, this limit switch is suitable for demanding environments, including manufacturing, machinery, and process control applications.

The rotary head actuator type provides reliable position sensing with a SPDT-DB contact configuration that ensures snap action switching for high repeatability. Rated for switching currents up to 1.2 A at 600 V AC/DC, it supports a wide voltage range suitable for various industrial circuits.

Engineered to endure harsh conditions, the switch operates effectively within a temperature range of -20°F to +185°F, making it ideal for indoor and outdoor use. The screw clamp terminal type offers secure and easy wiring, and the switch mounts vertically using a standard M20 conduit entry.

With a mechanical life rated at 10 million cycles, the 9007 series guarantees long-term reliability in heavy-duty industrial environments. The compact size - 63.5 mm wide, 39.37 mm long, and 102.11 mm deep - allows for flexible installation in tight spaces.

Rotary head actuator for precise operation. SPDT-DB snap action contacts for dependable switching. Metal housing and IP67 protection for harsh conditions. Switching current of 1.2 A at 600 V AC/DC for versatile use. Operating temperature from -20°F to +185°F for broad application range.

Screw clamp terminals enable secure electrical connections. Vertical mounting orientation with M20 conduit entry. Mechanical life of 10 million cycles ensures durability. Compact dimensions offer easy integration.

This limit switch is widely used in industrial automation, machinery safety systems, process control, and HVAC applications where reliable position feedback is critical. Choose Telemecanique Sensors 9007C54CM11 for dependable, long-lasting limit switching solutions.

Explore EnvMart for a comprehensive range of Limit Switches and industrial sensors that meet rigorous quality and performance standards.
