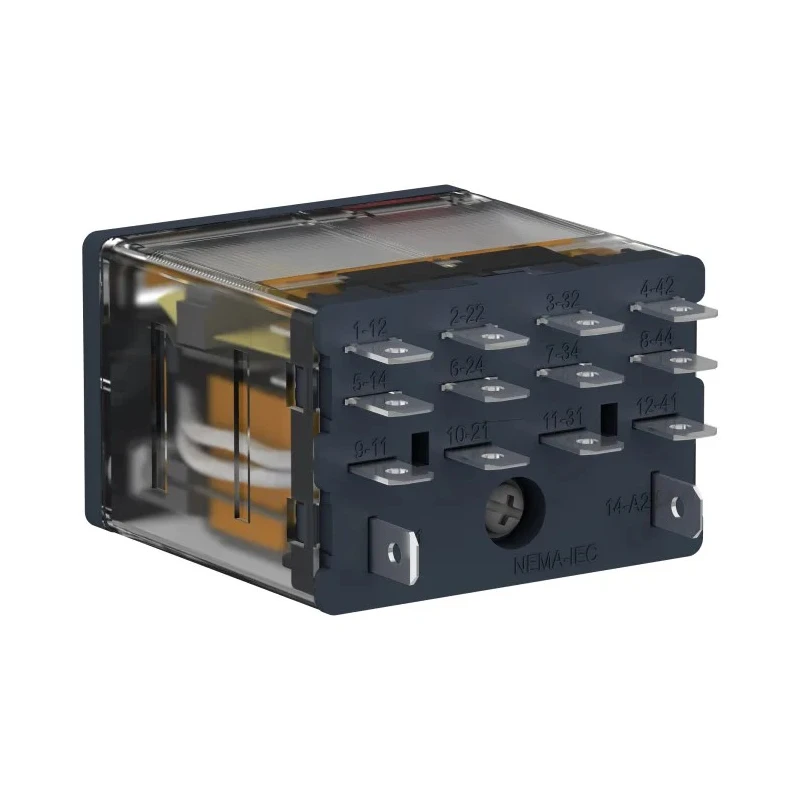

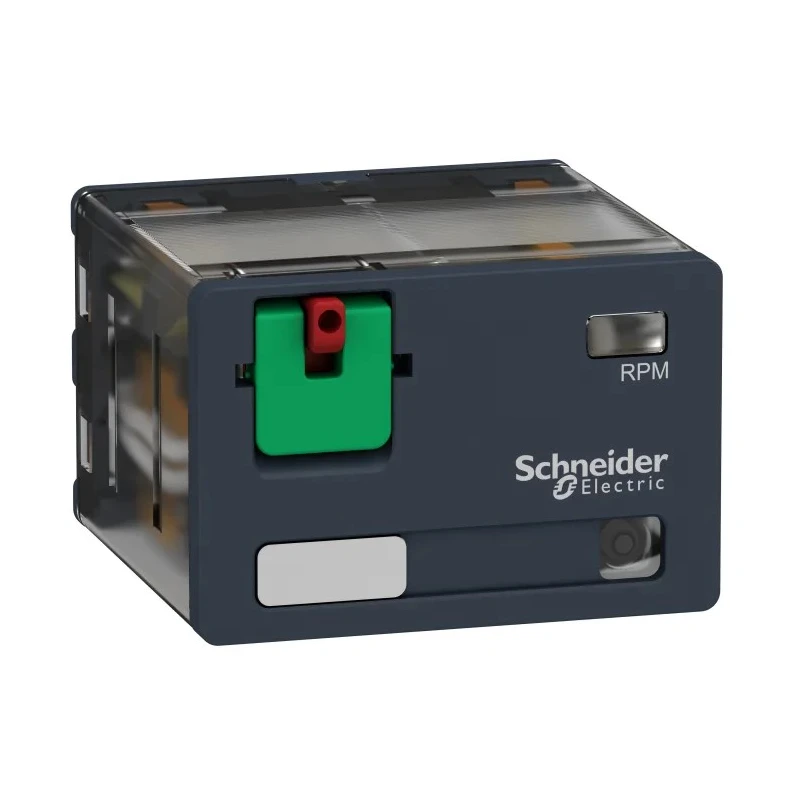

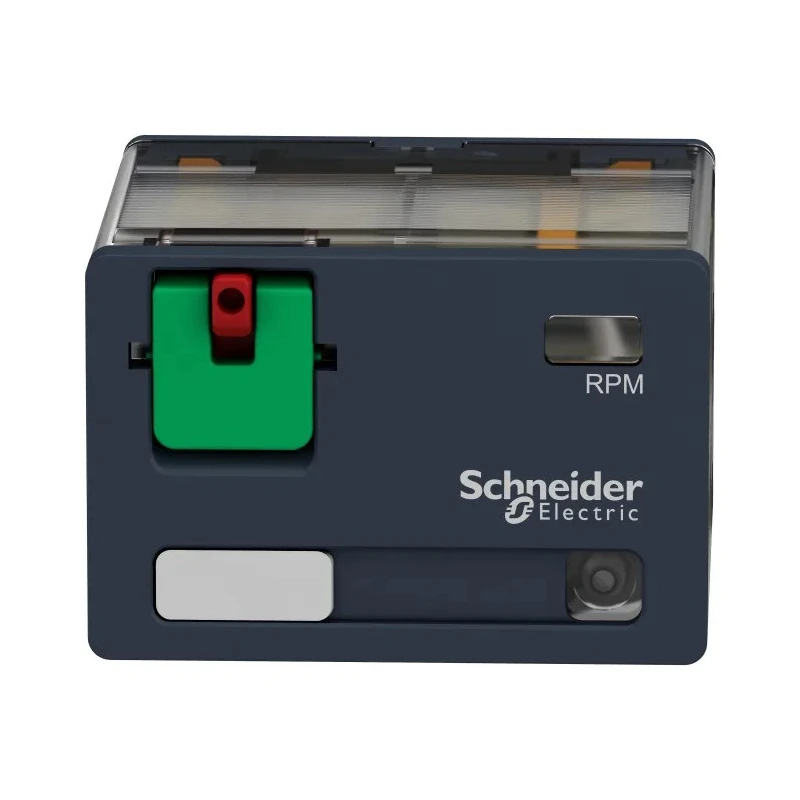

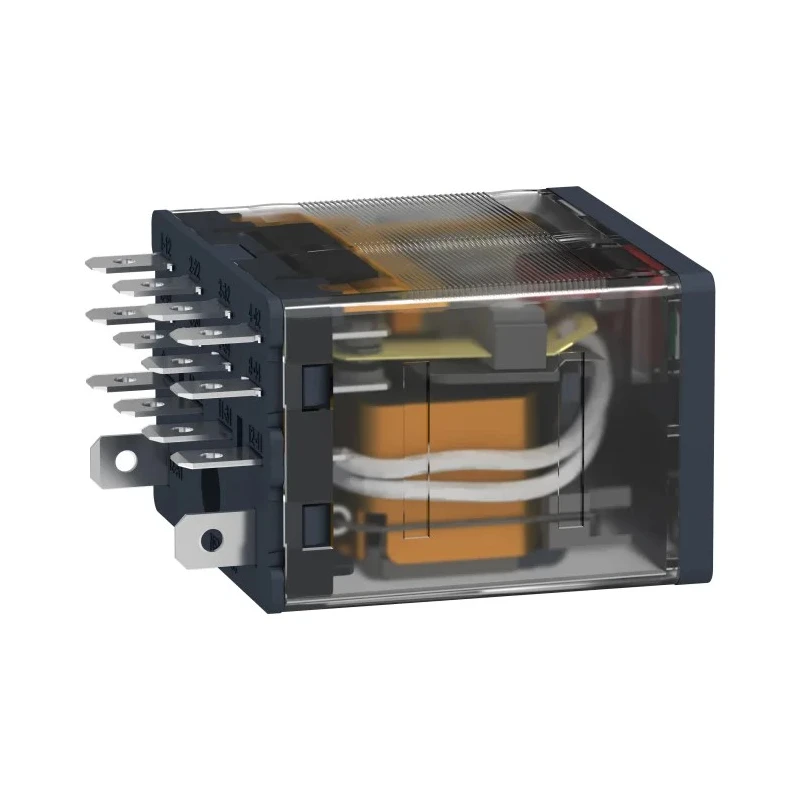

Schneider Electric Panel Power Relay 24V ac Coil 15A Switching Current 4PDT RPM42B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 41mm |
| Model | RPM42B7 |
| Width | 47mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 277V |
| Coil Power | 2.5W |
| Better World Claim | Designed for Disassembly |
| Switching Power | 420W |
Key Features
- Operates with a coil voltage of 24V AC ensuring efficient switching performance.
- Contact configuration is 4PDT providing multiple switching possibilities.
- Supports a switching current of 15 amperes suitable for power control tasks.
- Designed to handle switching power up to 420 watts.
- Terminal type is plug-in facilitating easy installation and replacement.
- Constructed with silver alloy contact material for high conductivity and durability.
- Suitable operating temperature range from -40°C to 55°C ensuring reliability in various environments.
- Compact and standardized dimensions with length 41mm, width 47mm, and height 27mm.
Product Description
Schneider Electric RPM42B7 panel power relay is a high-performance plug-in relay designed for industrial and commercial electrical control panels. It operates with a 24V AC coil and supports a switching current of 15A, making it suited for various power switching applications in automation and control systems.
The relay features a 4PDT (four-pole double-throw) contact configuration allowing multiple circuits to be controlled simultaneously. Its contacts are made of a durable silver alloy for enhanced conductivity and longevity. The compact design with a length of 41mm, width of 47mm, and height of 27mm facilitates easy panel mounting and space-saving installation.
It is designed to withstand operating temperatures from -40°C to 55°C, ideal for industrial environments with varying temperature conditions. With a coil power of only 2.5W, it ensures energy-efficient operation. The relay supports switching power of up to 420W and switching voltages of up to 277V AC and 28V DC.
This model, part of the Harmony Relay RP series, complies with RoHS regulations, highlighting its environmentally friendly design. Manufactured in China, this relay is suitable for applications including electrical automation, panel control, HVAC systems, manufacturing machinery, and other industrial electrical control systems.
Operates at coil voltage of 24V AC ensuring optimal performance. 4PDT contact configuration for versatile switching. 15A switching current suitable for medium power loads. Constructed with silver alloy contacts for durability.
Plug-in terminal type simplifies installation and maintenance. Supports switching power of 420W accommodating diverse applications. Wide operating temperature range from -40°C to 55°C helps withstand harsh conditions. Compact dimensions allow easy integration into control panels.
Low coil power consumption of 2.5W promotes energy savings. RoHS compliant for environmental safety.
For those seeking reliable and efficient Power Relays for industrial and commercial applications, the Schneider Electric RPM42B7 provides robust performance and ease of use. Explore more Schneider Electric products and related power relay components in the EnvMart catalog for comprehensive electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RPM42B7 relay operates with a coil voltage of 24V AC.
This model supports a maximum switching current of 15 amperes.
It features a 4PDT (four-pole double-throw) contact configuration, allowing for multiple circuits to be controlled simultaneously.
The relay can handle a maximum switching power of 420 watts.
The relay has compact dimensions: length of 41mm, width of 47mm, and height of 27mm.
It operates effectively within a temperature range of -40°C to 55°C.
The RPM42B7 features a plug-in terminal type, facilitating easy installation and replacement.
The relay has a low coil power consumption of 2.5 watts, promoting energy efficiency.
The contacts are constructed from silver alloy, which enhances conductivity and durability.
Yes, this relay complies with RoHS regulations, indicating its environmentally friendly design.
It is suitable for applications in electrical automation, panel control, HVAC systems, and manufacturing machinery.
This relay is part of the Harmony Relay RP series by Schneider Electric.
