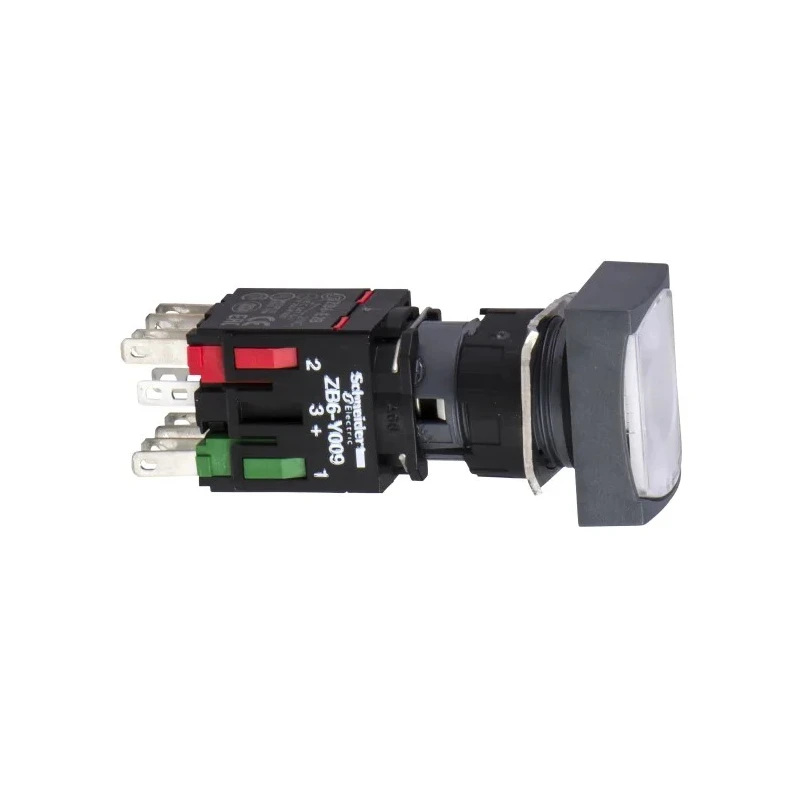

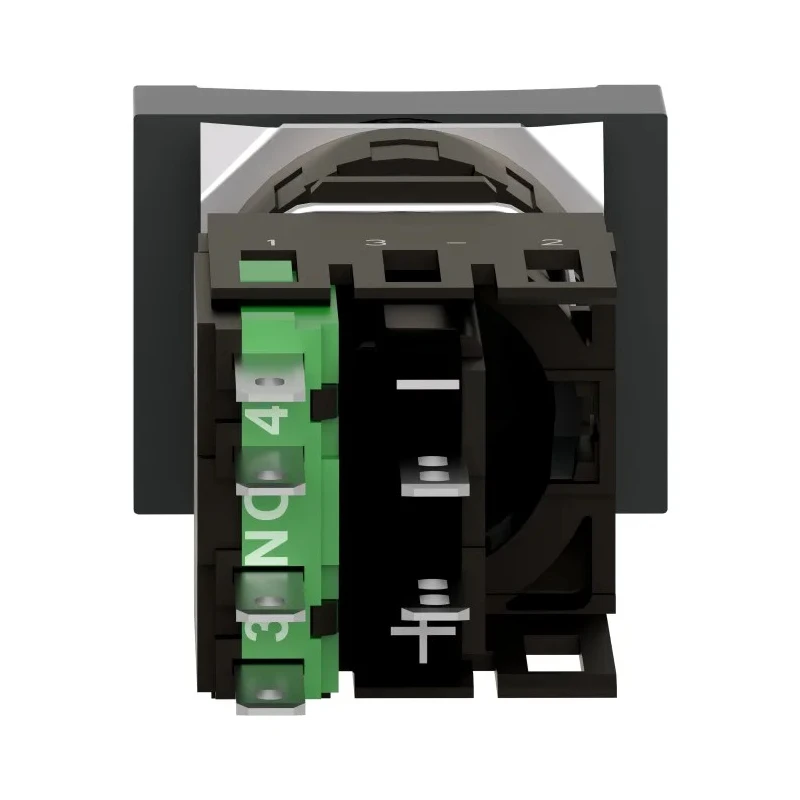

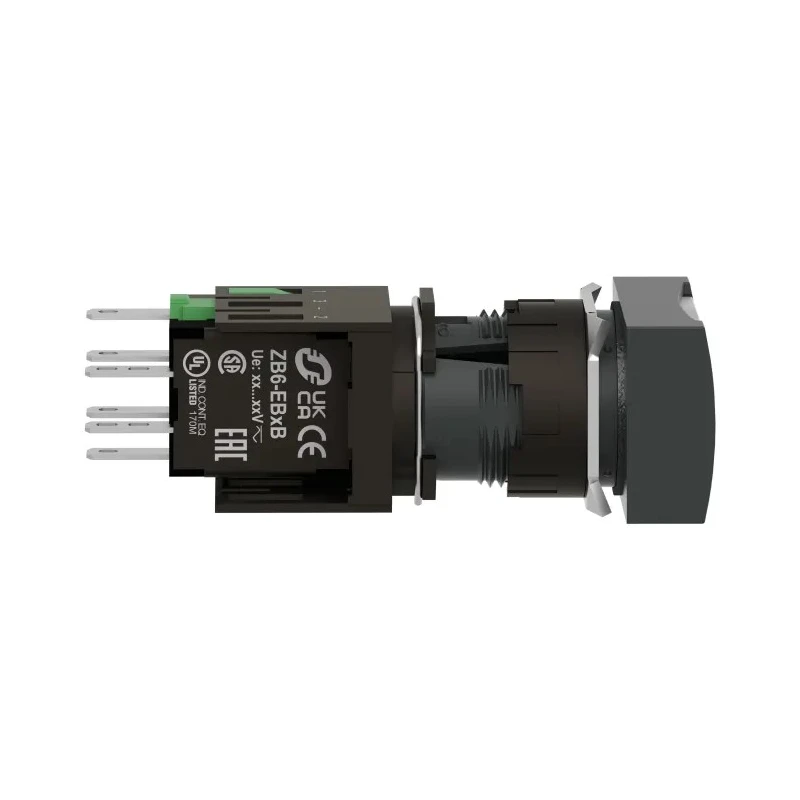

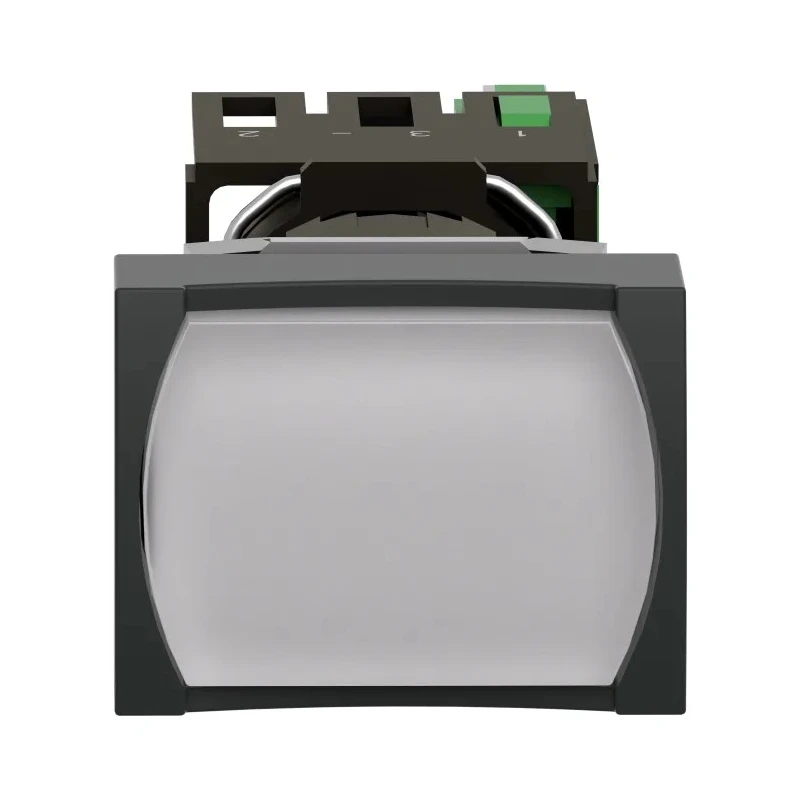

Schneider Electric Harmony XB6 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout, 1 XB6DW1B1B

Schneider Electric XB6DW1B1B Harmony XB6 Series illuminated Push Button Switch is a high-quality, durable control component designed for panel mounting applications. It has a 16 mm cutout diameter and offers a bright white LED illumination to provide clear visual status indication in control systems.

This push button utilizes a spring return mechanism and features a rectangular, unmarked actuator with a white color for easy visibility and ergonomic use. The device is equipped with one normally open (1 NO) slow-break contact, suitable for reliable switching functions.

Constructed to withstand challenging industrial environments, it holds an IP65 ingress protection rating ensuring protection against dust ingress and water jets. The push button supports both AC and DC voltages up to 240V AC and 250V DC respectively and can handle a contact current of 3A. Terminal connections include quick connect and solder tag types for versatile wiring options.

The switch operates efficiently within a temperature range of -25°C to 70°C, making it suitable for a variety of industrial and electrical automation systems. The product has compact physical dimensions of 57mm length, 24mm width, and 18mm height, which enable it to be installed in tight control panel spaces.

Approved to multiple international standards such as JIS C 4520, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C 852, CSA C22.2 No. 14, and EN/IEC 60947-5-1, the XB6DW1B1B ensures quality and safety compliance for industrial control applications.

The push button features a spring return operation for automatic resetting. White LED illumination provides clear, long-lasting visual status indication. IP65 rating guarantees dust-tight and water-resistant operation. Compact size supports installation in limited space control panels and machines.

Quick connect and solder tag terminals facilitate easy and secure wiring. One normally open (1 NO) contact suitable for switching duties. Wide operating temperature range from -25°C to 70°C ensures durability. Compliant with major international electrical standards for industrial use.

Ideal for use in electrical, automation, industrial machinery, manufacturing, and control panel applications where reliable push button operation and indication are required. Explore EnvMart’s comprehensive range of control switches and components to find compatible products for your electrical and automation projects.
