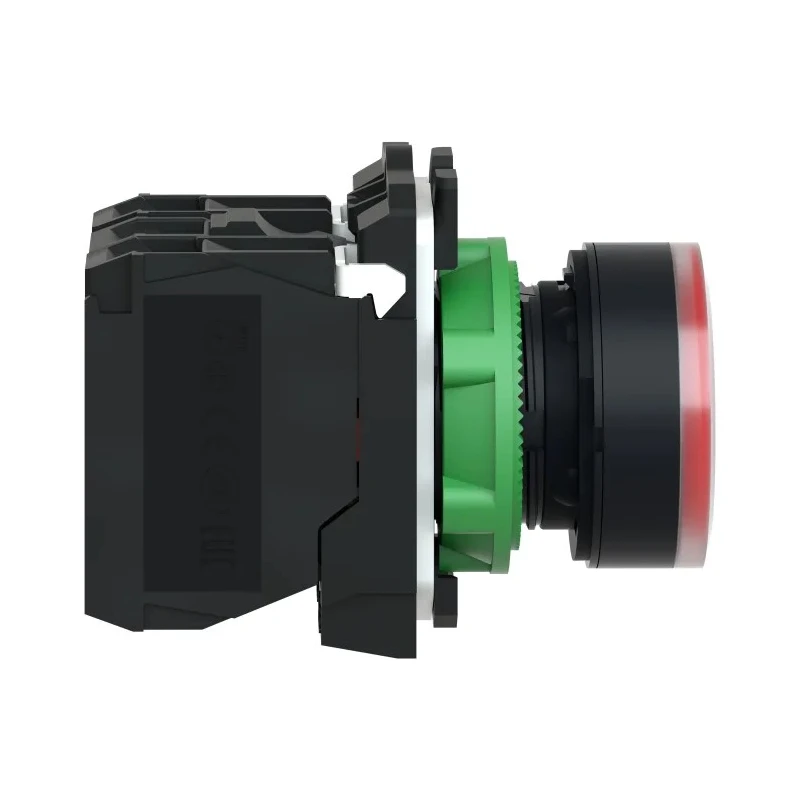

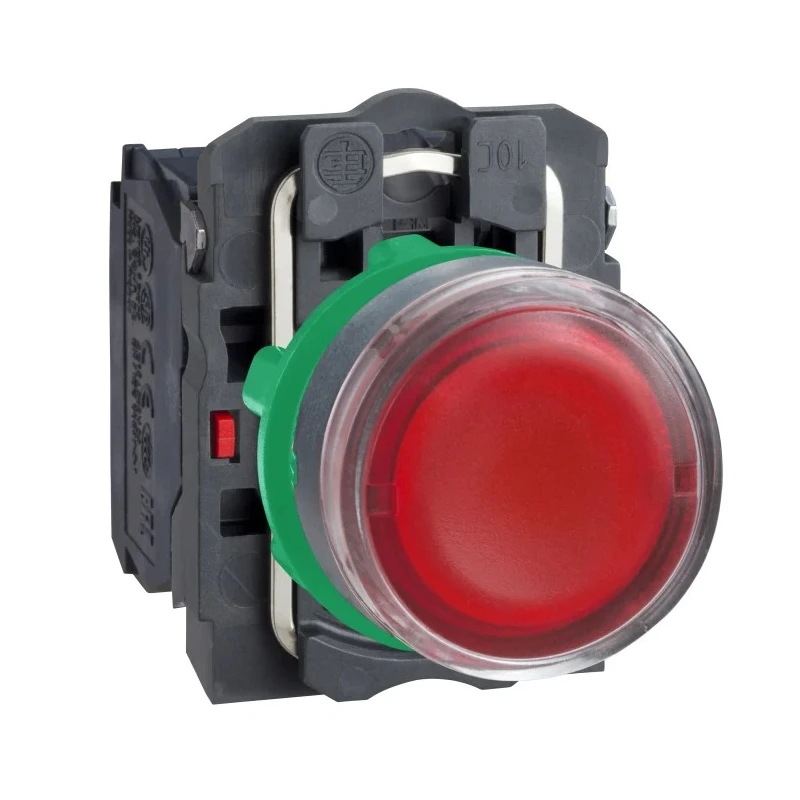

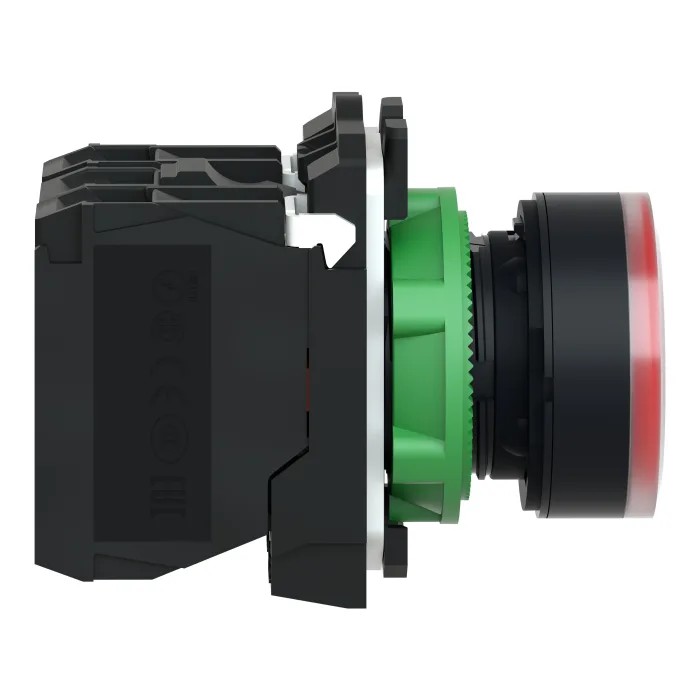

Schneider Electric Harmony XB5 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB5AW3465

Schneider Electric XB5AW3465 Push Button Switch is an illuminated, spring return type control switch designed for panel mounting in industrial and automation applications. It features a standard 22 mm cutout diameter, making it compatible with a wide range of control panels. The switch is equipped with a red LED for visual status indication, enhancing operator safety and ease of use.

The actuator is round and ergonomically designed for easy operation and reliable spring return functionality, allowing the button to reset automatically after actuation. The switch is constructed with a robust plastic bezel that offers double electrical insulation and resistance against chemical agents, making it ideal for use in harsh industrial environments where chemical exposure or electrical safety is a concern.

With an IP rating of IP66, IP67, IP69, and IP69K, the XB5AW3465 model resists dust ingress, water jets, high-pressure cleaning, and vibrations, ensuring dependable operation even in the most demanding conditions. It operates safely in a temperature range from -25°C to 70°C, providing reliable performance across diverse industrial settings.

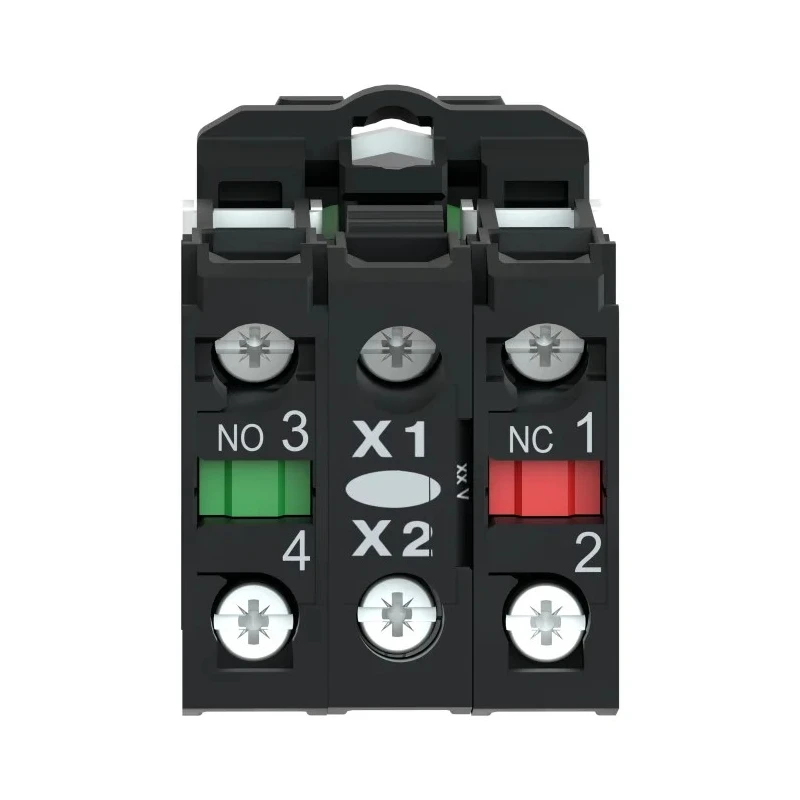

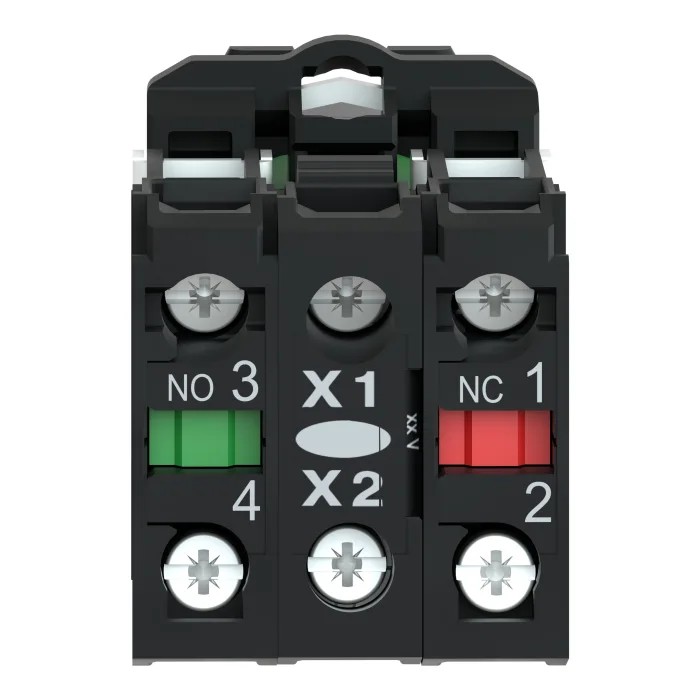

The electrical specifications include a single pole double throw (SPDT) contact configuration with 1 normally open and 1 normally closed contact. It supports a maximum contact current of 10A and can handle AC and DC voltages up to 600V. The switch uses screw-clamp terminals for secure and maintenance-friendly wiring connections.

Certified to meet stringent international standards including EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, UL 508, and JIS C8201 series, the XB5AW3465 ensures compliance, safety, and high quality. It is suitable for industrial automation, manufacturing control panels, electrical cabinetry, and machinery operation interfaces. This product is repairable by the end user, supporting sustainable use and reducing downtime.

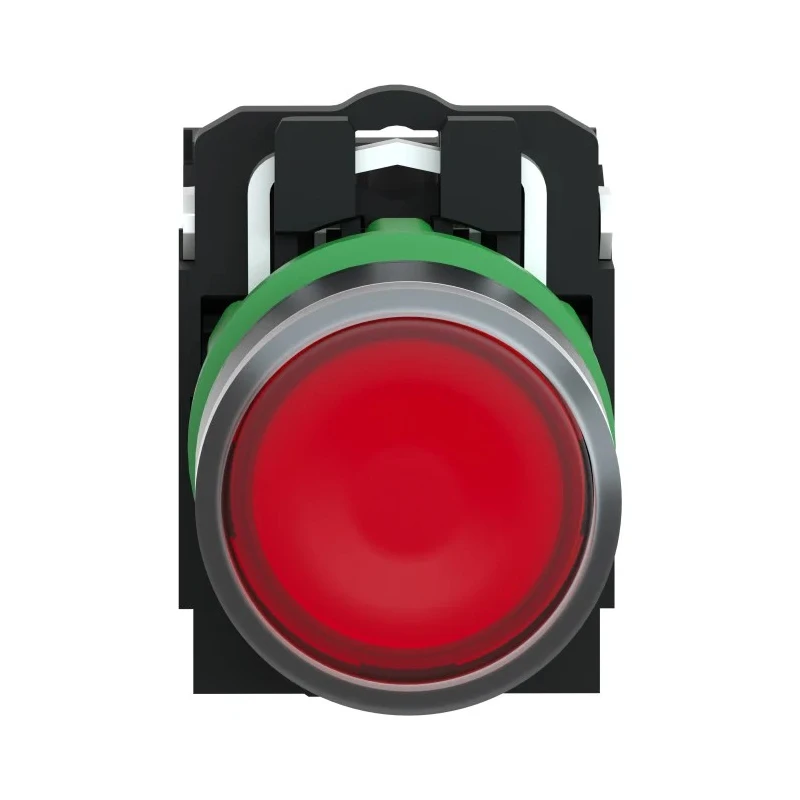

The switch features a compact 22 mm cutout for panel mounting. It has a SPDT (1 NO/1 NC) contact configuration for versatile control applications. The actuator is round with a red illuminated LED for clear visual indication.

Designed to operate between -25°C and 70°C, suitable for harsh environments. Offers high protection with IP66, IP67, IP69, and IP69K ratings against dust, water, and vibration. Uses screw-clamp terminals for secure electrical connections.

Rated for a maximum contact current of 10A and voltage of 600V AC/DC. Constructed with durable double insulated plastic bezel resistant to chemical agents. Complies with international standards including EN/IEC 60947 series and UL 508.

Engineered for mechanical durability with 10,000,000 cycles ensuring long-lasting performance.
