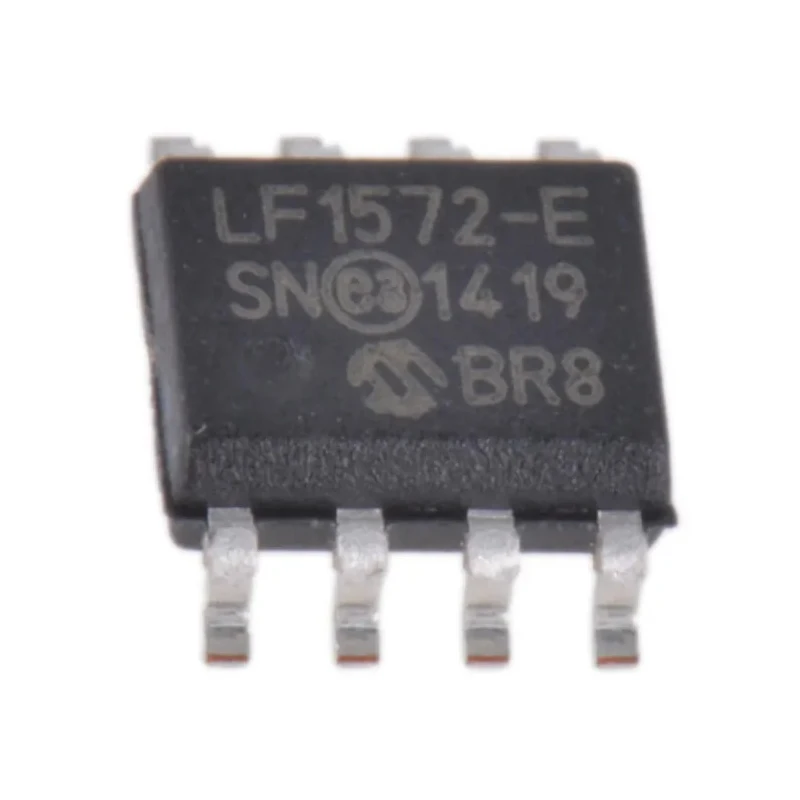

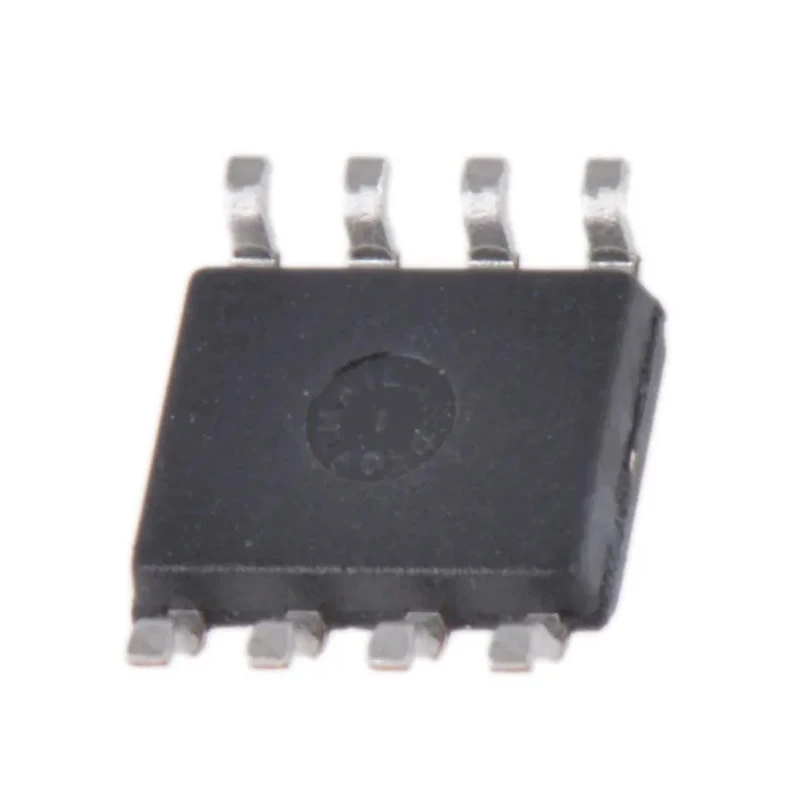

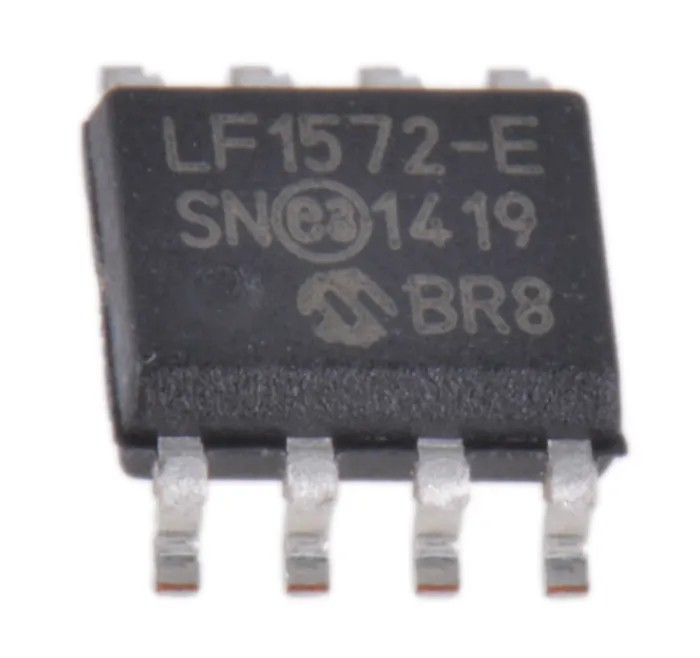

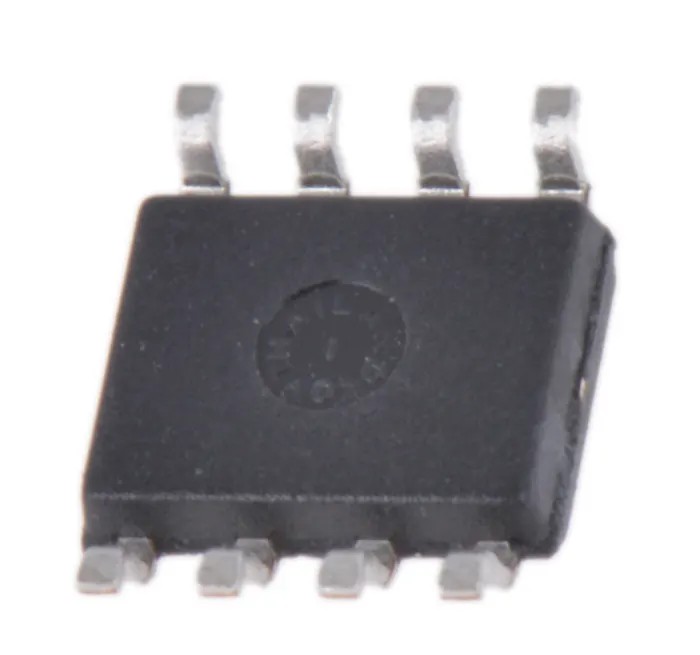

Microchip PIC12LF1572-E/SN 8-Bit PIC12F Microcontroller 16 MHz Flash 8-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | PIC12LF1572-E/SN |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC12F |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | EUSART |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 1 |
| Number of Timers | 6 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
| Microchip, 8 bit PIC, PIC12F Microcontroller, 32 MHz FLASH, 8-Pin SOICBrand | Microchip |
Key Features
- Built on Microchip's enhanced mid-range PIC core with 49 instructions and 16-level hardware stack.
- Features a 16 MHz internal oscillator with selectable frequency from 31 kHz to 16 MHz.
- Includes 3.5 kB flash program memory and 256-bit RAM supporting efficient data processing.
- Offers 6 general-purpose I/O pins and versatile peripherals including 4-channel 10-bit ADC and 5-bit DAC.
- Operates over a wide supply voltage range from 1.8 V to 5.5 V and temperature range -40°C to 125°C.
- Equipped with 6 timers, configurable logic cell, numerically controlled oscillator and waveform generators.
- Supports in-circuit serial programming (ICSP) and is RoHS compliant for environmental safety.
- Compact 8-pin SOIC surface-mount package with dimensions 4.9 mm length, 3.9 mm width, and 1.25 mm height.
Product Description
Microchip PIC12LF1572-E/SN is an 8-bit PIC12F microcontroller featuring a 16 MHz internal oscillator, 3.5 kB flash program memory, and 256-bit RAM designed for compact and low-power applications.
This MCU is built upon Microchip's enhanced mid-range core architecture providing a 49-instruction set with a 16-level hardware stack optimizing embedded processing tasks and performance up to 8 MIPS.
The device includes up to 6 I/O pins, a 4-channel 10-bit ADC, a 5-bit DAC, and multiple timers (two 8-bit and one 16-bit) facilitating precise timing and analog functionality integration.
Its supply voltage range extends from 1.8 V to 5.5 V, with an operating temperature range from -40°C to 125°C, making it suitable for industrial and automotive environments compliant with ISO/TS 16949 standards.
The compact 8-pin SOIC surface-mount package (4.9 mm x 3.9 mm x 1.25 mm) allows integration in space-constrained designs.
Additional features include a configurable logic cell, numerically controlled oscillator, complementary waveform generator, and in-circuit serial programming capability for efficient firmware updates.
Built on optimized PIC12F core delivering up to 8 MIPS processing speed. 16 MHz internal oscillator configurable from 31 kHz to 16 MHz ensuring flexible clock management. Rich peripheral set including ADC, DAC, timers, and PWM modules for versatile control applications.
Wide operating temperature and voltage specifications ensuring robust industrial use. Compliant with RoHS and automotive quality standards (ISO/TS 16949).
This microcontroller is ideal for embedded control, industrial automation, sensor interfacing, and automotive electronics where compact form factor and reliable performance are critical.
Explore the Microchip Microcontroller category on EnvMart for complementary solutions and technical resources to support your design and manufacturing processes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 16 MHz.
It operates over a supply voltage range from 1.8 V to 5.5 V.
This microcontroller includes 3.5 kB of flash program memory.
The dimensions of this unit are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
It supports 6 general-purpose I/O pins.
This model includes a 4-channel 10-bit ADC.
The operating temperature range is from -40°C to 125°C.
It comes in a compact 8-pin SOIC surface-mount package.
Yes, it supports in-circuit serial programming (ICSP).
It is compliant with the ISO/TS 16949 automotive standard.
This microcontroller includes 6 timers.
It features 256-bit RAM for efficient data processing.
