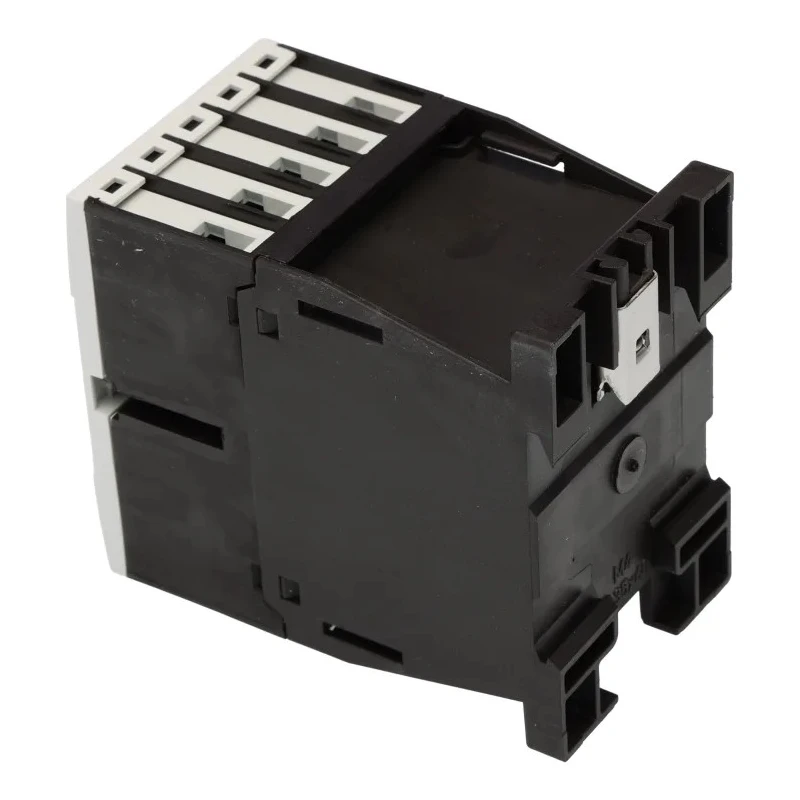

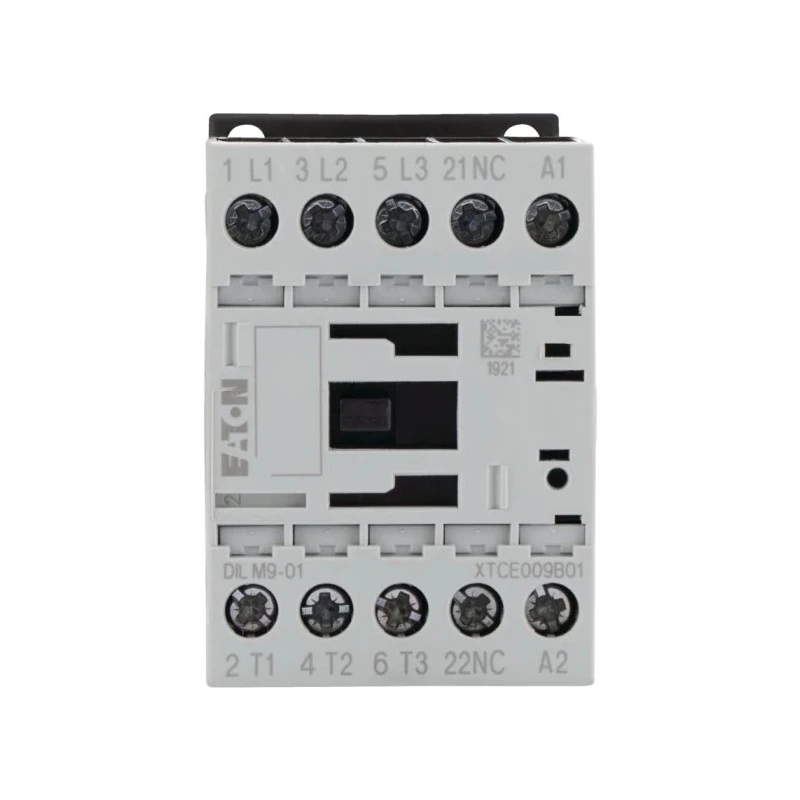

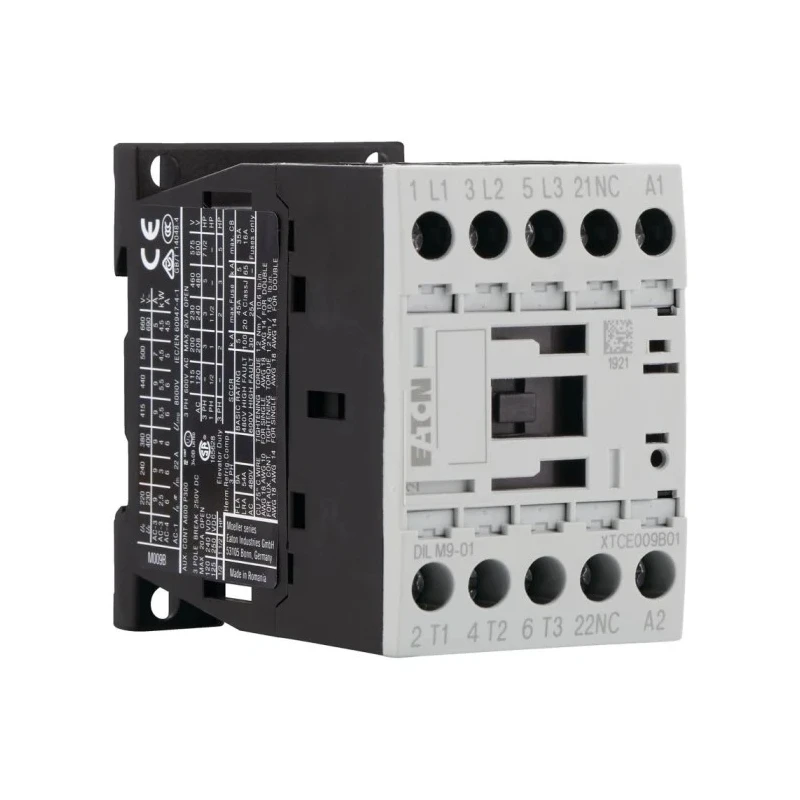

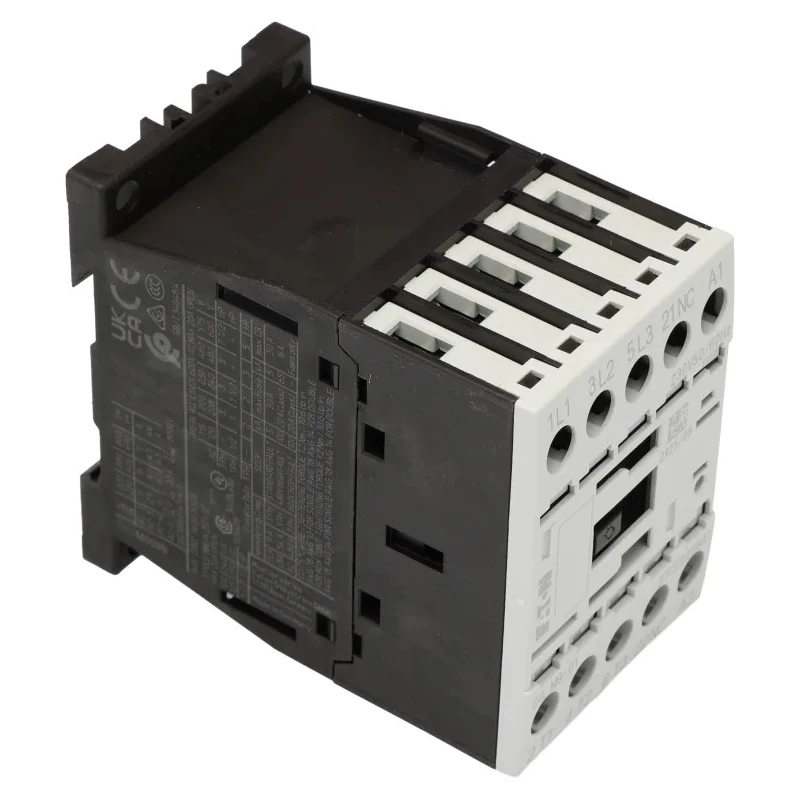

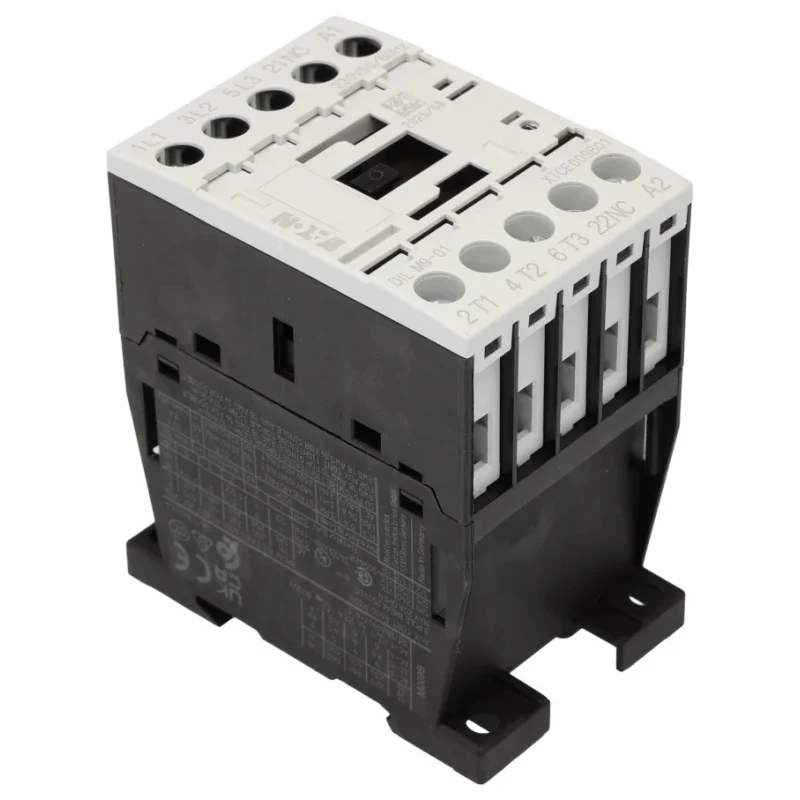

Eaton DILM Contactor, 230V AC Coil, 3-Pole, 9 A, 4 kW, 3 NO, 690V AC 276733 DILM9-01(230V50/60HZ)

Eaton 276733 DILM9-01(230V50/60HZ) contactor features a 230V AC coil, a 3-pole design, 9 A contact current, and a 4 kW power rating, specifically engineered for motor control and reversing applications in industrial environments. This device is ideal for regulating electrical flow to motors and machinery in power distribution systems and lighting panels.

The robust construction includes a thermoplastic housing that withstands impact and abrasion, making it suitable for demanding industrial settings. Installation is facilitated by screw clamp terminals that ensure a secure connection when tightened to a torque of 1.2 Nm, providing reliable performance even under vibration.

Its electrical characteristics include a coil voltage rating of 230V AC, contact voltage rating of 690V AC, and an operational current Ie of 9A. Furthermore, it supports a rated impulse withstand voltage of 8 kV AC and an IP20 rating for protection against touch and foreign objects larger than 12 mm.

The contactor is lightweight at 240 grams and accepts solid or stranded wires ranging from 18 to 10 AWG sizes, offering flexible installation options. Operating temperature ranges from -25°C to 60°C, ensuring stable performance under varied environmental conditions.

Typical applications include motor control and reversing operations in industrial automation, HVAC systems, manufacturing plants, and electrical distribution panels where reliable switching and control are essential.

3-pole design for three-phase or multi-circuit control. 230V AC coil voltage rating suitable for low-voltage systems. Screw clamp terminals simplify installation and ensure secure connections. Thermoplastic housing provides durability and resistance to impact and abrasion.

Energy-efficient with low heat dissipation of 0.2W per pole. Rated impulse withstand voltage of 8kV AC for surge protection. Lightweight design minimizes mechanical strain on equipment. IP20 rating for protection against touch and objects larger than 12mm.

Accepts 18 to 10 AWG solid or stranded wire sizes for versatile wiring.
