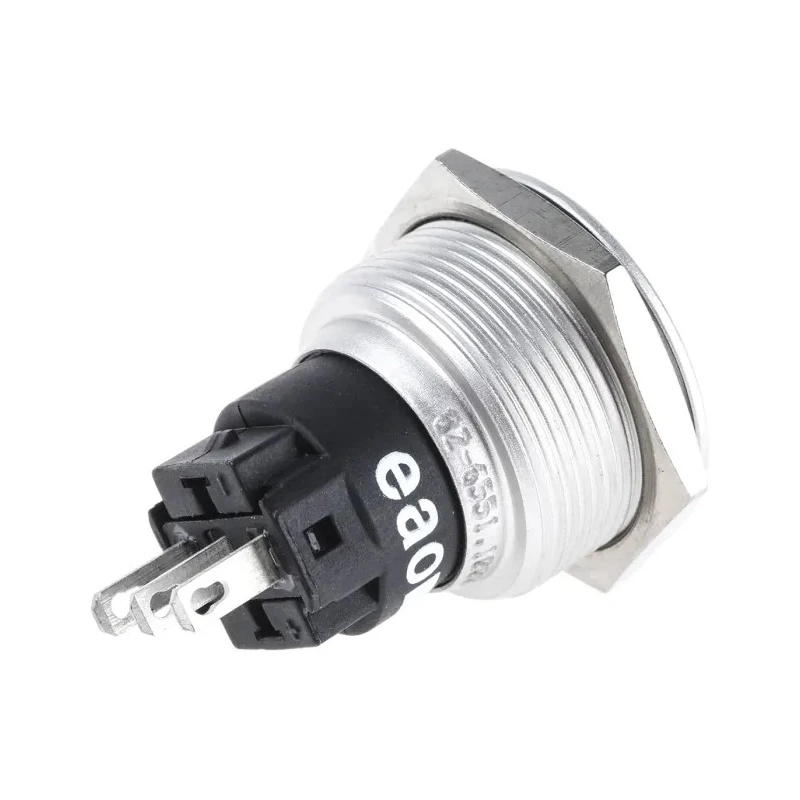

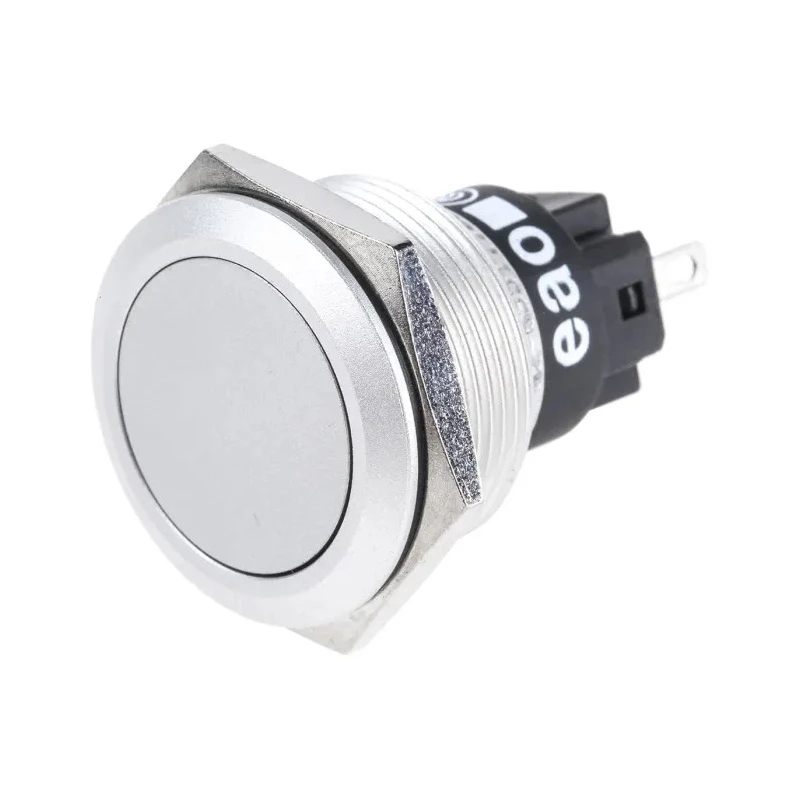

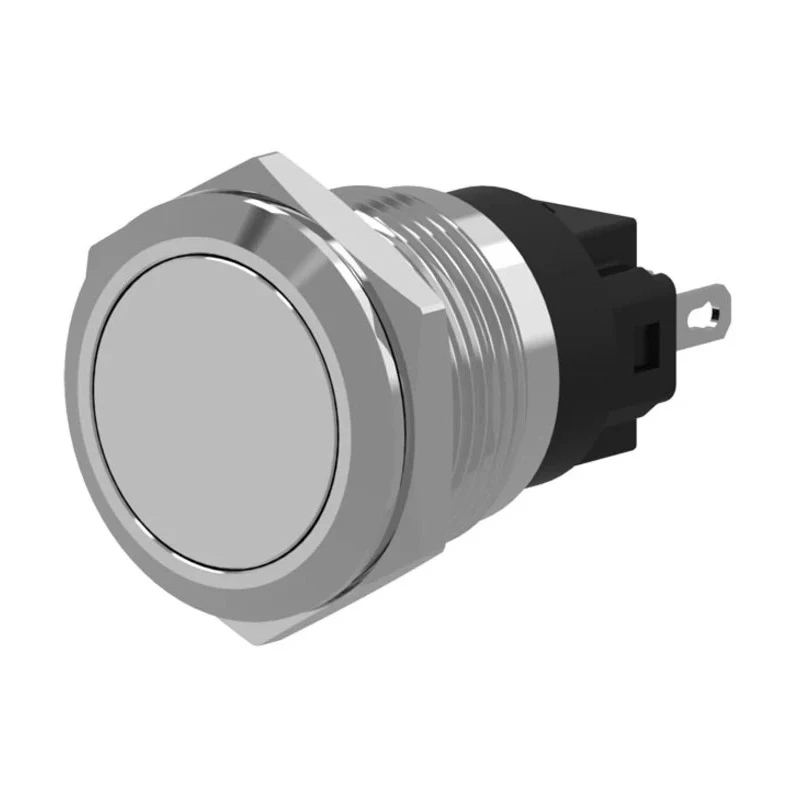

EAO 82 Series Momentary Push Button Switch Panel Mount SPDT IP65 IP67 22.3 mm Cutout 240 V 250 V AC 82-6551.1000



Category Push Button Switches & Components Brand EAO Condition New

Specifications

Country of Origin	China
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	NC, NO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Momentary
Actuator Colour	Natural
Contact DC Voltage	240V
Actuator Style	Flat
Switch Contact Current	3A
Contact AC Voltage	250V ac
Legend	Blank

Key Features

The switch operates momentarily, ideal for temporary control situations.
It features a flat actuator style with a natural color for minimal interference.
IP65 and IP67 ratings ensure resistance to dust and water immersion up to 1 meter for 30 minutes.
SPDT contact configuration supports both normally closed and normally open contacts.
The switch has a switch contact current rating of 3A for low power applications.
It withstands operating temperatures from -30° to 70°C, suitable for harsh environments.
The metal housing provides durability and wear resistance.
Compact length of 34.5 mm and lightweight design of 18 grams facilitate easy integration.

Product Description

EAO 82-6551.1000 Momentary Push Button Switch from the 82 Series is a rugged panel-mounted switching device designed for industrial and commercial electrical systems. It features a 22.3 mm panel cutout and offers a reliable single-pole double-throw (SPDT) contact configuration. The momentary switch action means the circuit is only active while the button is pressed, making it ideal for manual or temporary control operations. The flat actuator design in natural color minimizes the risk of accidental actuation and ensures a smooth interface.

Constructed with metal housing, it offers durable wear resistance and incorporates silver alloy contacts to ensure long-lasting electrical performance. The switch is rated with IP65 and IP67 ingress protection, guaranteeing dust-tight operation and ability to withstand submersion in water up to 1 meter for 30 minutes, making it suitable for challenging industrial environments.

Operationally, it supports contact voltages of up to 240 V DC and 250 V AC with a contact current rating of 3 amperes, aligning with low power application needs. The device functions reliably across a wide temperature range from -30°C to +70°C, suitable for transportation, medical equipment, and process and packaging industries. Its compact size with a 34.5 mm length and minimal weight of 18 grams allows for versatile mounting without adding significant load.

The IP67 rating supports full dustproofing and water immersion resistance. Snap-action mechanism ensures immediate response to user input. Solder terminal connections provide secure, vibration-resistant wiring. Flat, natural colored actuator reduces accidental presses.

Applications span transportation, medical devices, and industrial process equipment.

This push button switch is an essential component for control panels and automation equipment requiring reliable manual operation in demanding environments. Explore more in the Push Button Switches & Components category for compatible accessories and devices.
