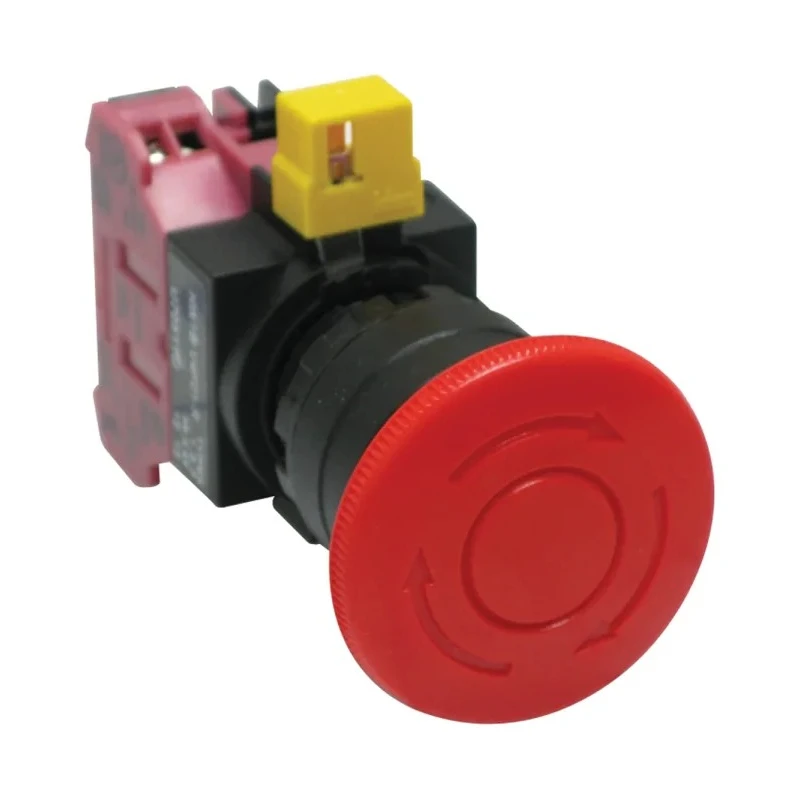

Idec HW Series Twist Release Emergency Stop Push Button Panel Mount 22mm Cutout 1 NC IP65 HW1B-V4F01-R

Name: Idec HW Series Twist Release Emergency Stop Push Button Panel Mount 22mm Cutout 1 NC IP65 HW1B-V4F01-R
Brand: Idec
SKU: 316255
Price: 4106.99 INR
Availability: InStock



Category Emergency Stop Push Button Brand Idec Condition New

Specifications

Country of Origin	India
Brand	Idec
Colour	Red
Length	29.4mm
Model	HW1B-V4F01-R
Depth	32mm
IP Rating	IP65
Width	32mm
Mount Type	Panel Mount
Series	HW
Contact Configuration	1 NC
Contact AC Voltage	440V ac
Cutout Diameter	22mm
Push Button Actuation	Twist Release
Push Button Material	Plastic

Key Features

The push button features a twist release actuation for safety.
It has one normally closed (1 NC) contact configuration.
The unit is made of durable plastic with a red color pushbutton.
The product is rated for 440V AC contact voltage and IP65 ingress protection.
No hazardous area certification or additional standards approvals apply.
Suitable for industrial and automation electrical applications.

Product Description

Idec HW Series model HW1B-V4F01-R is a robust Emergency Stop Push Button designed for panel mounting with a 22 mm cutout. It features a twist release actuation that enhances safety by requiring a deliberate action to reset the button after activation. This component is built with a plastic push button material finished in red for clear visibility in emergency situations.

The contact configuration consists of one normally closed (1 NC) contact, compatible with AC voltages up to 440V. Additionally, the device bears an IP65 rating, ensuring high resistance to dust ingress and water jets, making it suitable for demanding industrial environments.

Key dimensions of the button include a width and depth of 32mm and a length of 29.4mm, allowing for easy integration into compact control panels. Though it does not have hazardous area certifications or extra approvals, it is UL listed, CSA certified, TUV approved, and CE marked, meeting multiple international standards for quality and reliability.

This push button is ideal for automation, electrical distribution, and safety applications across industrial, manufacturing, and commercial sectors. Its design supports easy assembly, and the twist release mechanism ensures prompt and safe emergency response control.

The push button has a twist release actuation mechanism enhancing operational safety. The 22 mm panel mount cutout allows simple installation into control panels. Constructed from sturdy plastic with red coloration for emergency indication.

IP65 rating provides reliable protection against dust and water jets. Rated for 440V AC contact voltage suitable for industrial electrical circuits. Compact size dimensions: 32mm width, 32mm depth, and 29.4mm length. One normally closed (1 NC) contact configuration for circuit control.
