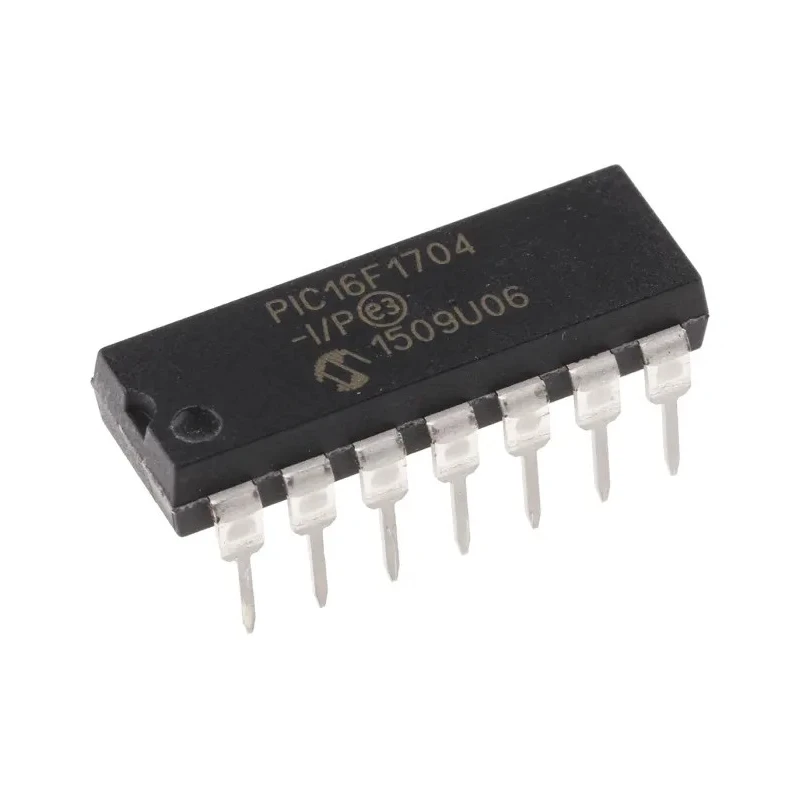

Microchip PIC16F1704-I/P 8-Bit PIC Microcontroller 32 MHz 7kB Flash 14-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 19.69mm |
| Model | PIC16F1704-I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | SPI, EUSART, I2C |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 7kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 8 Bit |
| Intelligent Analog | Up to two op amps, up to two high-speed comparators, up to 28 input channels of 10-bit ADC and up to one 5-bit/8-bit DAC |
| Configurable Logic Cell (CLC) | Create custom combinational and sequential logic using the configurable logic cell module. External gates and state functions can also be brought into the MCU itself |
| Numerically Controlled Oscillator (NCO) | Frequency output adjustable with very fine steps. The NCO provides high-resolution oscillator capabilities for control applications such as lighting ballast, radio and tone generators |
| Zero Cross Detect (ZCD) | AC high-voltage zero crossing detection simplifies Triac control, synchronized switching control and timing |
| Peripheral Pin Select (PPS) | Configure any digital peripheral to any pin via an internal multiplexer to ensure layout flexibility and the elimination of pin overlap |
Key Features
- Operates at a maximum clock frequency of 32 MHz.
- Offers 7kB of FLASH program memory for efficient code storage.
- Features 22 programmable I/O pins and multiple integrated peripherals.
- Includes integrated analog components such as 2 op amps, 2 comparators, and an 8-channel 10-bit ADC.
- Supports various communication interfaces including SPI, EUSART, and I2C.
- Power dissipation is a modest 800 mW ensuring low energy consumption.
- Designed for operation in temperature range from -40°C to 85°C.
- Package type PDIP allows through-hole mounting for easy prototyping.
Product Description
Microchip PIC16F1704-I/P is an 8-bit PIC microcontroller designed for cost-sensitive general-purpose applications. It features a high maximum clock frequency of 32 MHz and 7kB of FLASH program memory to support complex control algorithms efficiently. Packaged in a 14-Pin PDIP form factor, it is suitable for through-hole mounting, facilitating prototyping and development.
This microcontroller integrates intelligent analog components such as two operational amplifiers, two high-speed comparators, up to 28 input channels of 10-bit ADCs, and a versatile DAC, expanding its adaptability in analog signal processing tasks. Its 22 programmable I/O pins provide ample interfacing options.
Communication flexibility is ensured with support for SPI, EUSART, and I2C interfaces, making it ideal for embedded systems requiring multi-protocol connectivity. The device’s configurable logic cell (CLC) module allows the creation of custom combinational and sequential logic functions internally, offering hardware optimization for specific application logic.
Additional peripheral features include a numerically controlled oscillator (NCO) for precise frequency output, a complementary output generator (COG) for high-efficiency synchronous switching, and zero cross detection (ZCD) to simplify triac control and synchronized switching.
The microcontroller operates efficiently over a temperature range of -40°C to 85°C with a maximum power dissipation of 800 mW, making it suitable for various industrial and commercial applications in automotive, lighting control, and general embedded control systems.
Operates at a stable 32 MHz clock frequency. 7kB of reliable FLASH program memory. 14-Pin PDIP package for through-hole mounting. 22 programmable I/Os with multi-interface support. Integrated intelligent analog modules including ADCs and DACs.
Configurable Logic Cell for customized logic applications. Advanced output generators and zero cross detect for efficient control. Wide operating temperature from -40°C to 85°C. Low power dissipation enhances energy efficiency.
Suitable for industrial, automotive, HVAC, and manufacturing uses. For a wide range of Microcontrollers and embedded system components, explore the Electronics & Electricals category at EnvMart for reliable industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 7kB of FLASH program memory for efficient code storage.
The operating temperature range is from -40°C to 85°C.
This model has 22 programmable I/O pins.
It supports SPI, EUSART, and I2C communication interfaces.
The microcontroller is packaged in a 14-Pin PDIP form factor suitable for through-hole mounting.
The maximum power dissipation is 800 mW, ensuring low energy consumption.
It includes two operational amplifiers, two high-speed comparators, and an 8-channel 10-bit ADC.
The height of this microcontroller is 4.95 mm.
The minimum supply voltage is 1.8V.
This microcontroller includes five timers.
The width of this model is 7.11 mm.
