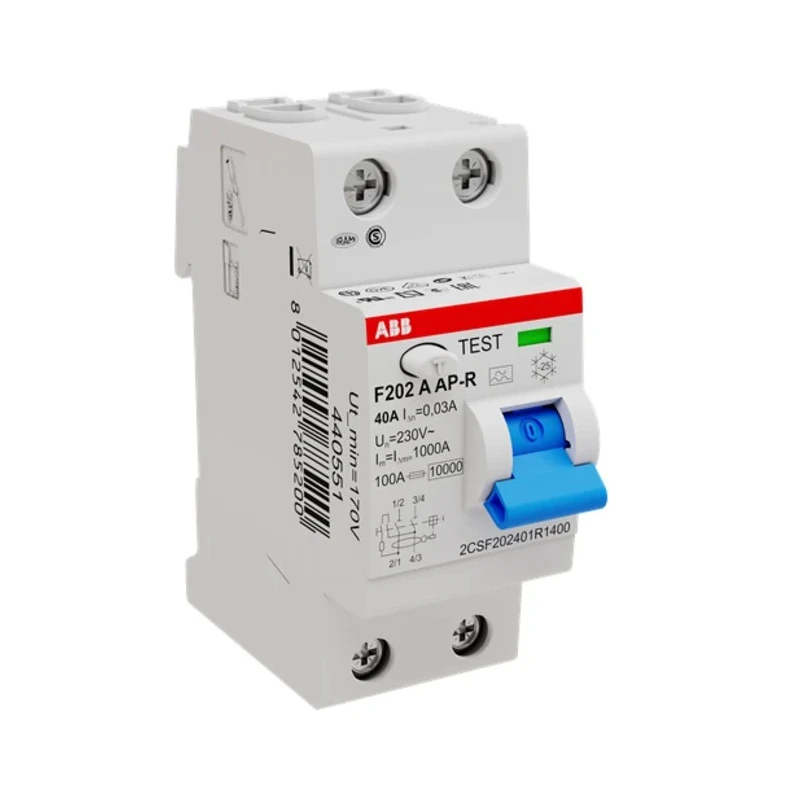

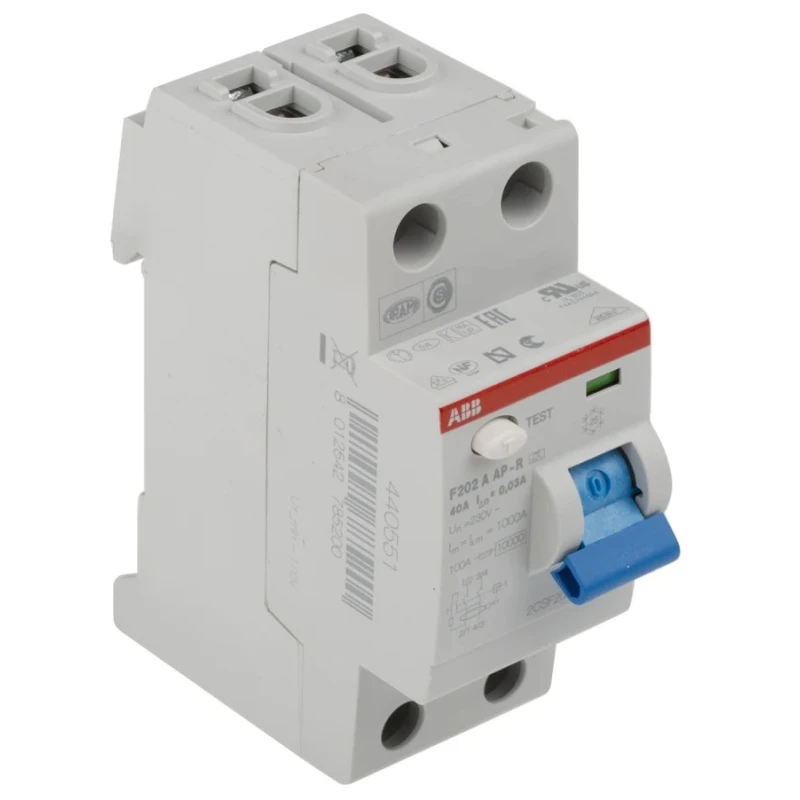

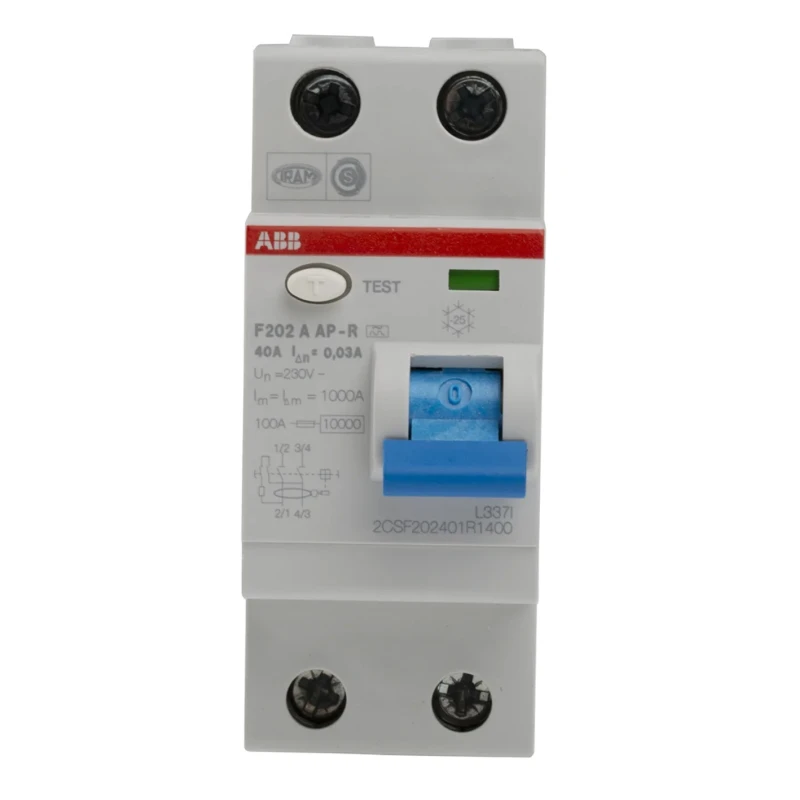

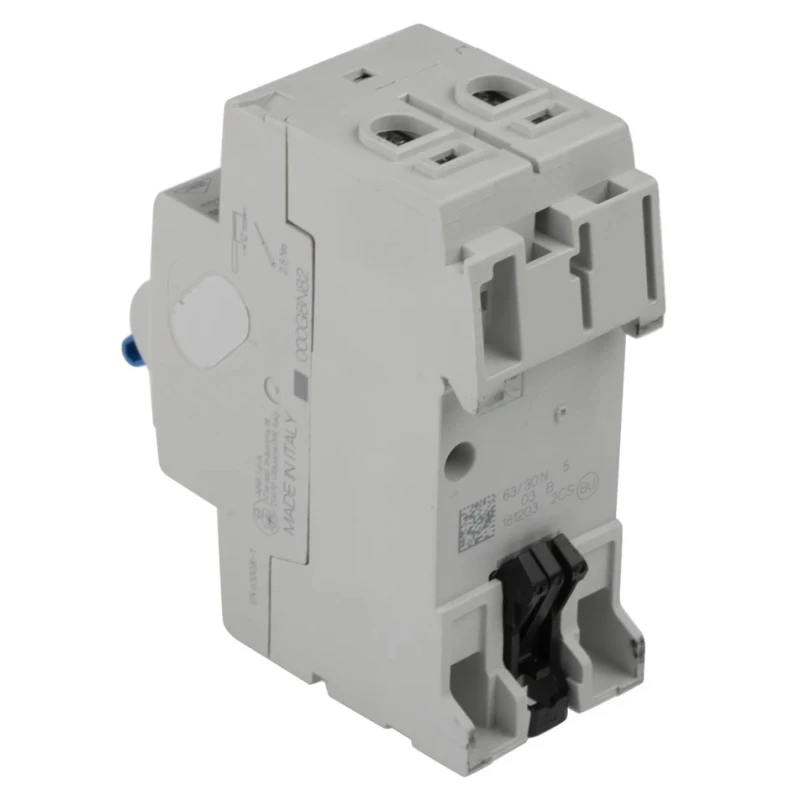

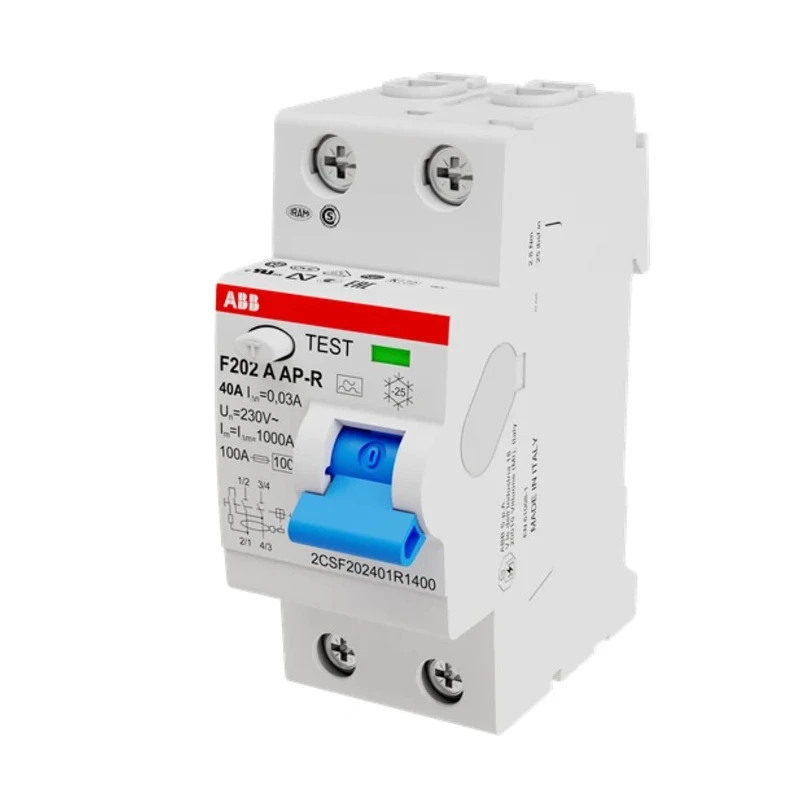

ABB Residual Current Circuit Breaker 40A, 2-Pole, 30 mA, Type A, 1 kA Breaking Capacity 2CSF202401R1400 F202 A-40/0,03 AP-R

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker 40A, 2-Pole, 30 mA, Type A, 1 kA Breaking Capacity 2CSF202401R1400 F202 A-40/0,03 AP-R



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	F200
Brand	ABB
Height	85mm
Model	2CSF202401R1400 F202 A-40/0,03 AP-R
Depth	69mm
Width	35mm
Mount Type	DIN Rail
Current Rating	40A
Series	F200
Terminal type	Screw
Breaking Capacity	1kA
Number of Poles	2
Standards/Approvals	RoHS, CE, IEC EN 61008
Rated AC Voltage	277V ac
Tripping Characteristics	Type A
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	Type A

Key Features

Equipped with 2 protective poles to monitor and protect dual circuits simultaneously.
Compact size of 35mm width, 85mm height, and 69mm depth for convenient DIN rail mounting.
Breaking capacity of 1 kA ensures robust fault interruption and enhanced safety.
Instantaneous break time with electromagnetic tripping mechanism for rapid hazard response.
Features a front-mounted toggle switch for quick and easy reset after tripping.
Compliance with RoHS, CE, and IEC EN 61008 standards guarantees quality and safety.
Electrical lifespan rated for 10,000 operational cycles for durable long-term use.
Terminal connections via screw type terminal ensure secure wiring.

Product Description

ABB 2CSF202401R1400 F202 A-40/0,03 AP-R Residual Current Circuit Breaker from the F200 Series is engineered for effective electrical leakage protection in industrial, commercial, and power distribution systems. Rated for 40 amperes with a 2-pole configuration, it provides sensitive detection of residual currents with a trip sensitivity of 30 mA, classified as Type A for AC and pulsating DC fault detection. Operating at 277 volts AC, this breaker features a breaking capacity of 1 kiloampere, ensuring robust interruption of fault currents for enhanced safety and equipment protection.

This device mounts quickly on standard DIN rails, benefiting from compact dimensions of 35 mm width, 85 mm height, and 69 mm depth for easy integration within electrical panels. The electromagnetic tripping mechanism provides instantaneous circuit interruption upon fault detection, minimizing risk and downtime. Users can conveniently reset the breaker using its front-located toggle switch. The device uses screw-type terminals for secure and reliable electrical connections.

ABB's RCCB supports an electrical lifespan of 10,000 mechanical and electrical cycles, ensuring durability and long-term performance. The breaker conforms to essential international standards, including RoHS, CE, and IEC EN 61008, attesting to its quality and safety compliance. Designed and manufactured in Italy, it is suitable for applications across power distribution networks, rail industry installations, and telecommunications infrastructure, offering trusted earth leakage protection.

Equipped with 2 poles for dual circuit monitoring and protection. Compact DIN rail mount design with dimensions suitable for space-constrained panels. High breaking capacity of 1 kA for fault current interruption. Instantaneous electromagnetic trip mechanism for rapid response.

Toggle switch reset actuator for easy circuit recovery. Compliance with RoHS, CE, and IEC EN 61008 standards. Screw-type terminal connections for secure wiring. Electrical lifespan rated for 10,000 switching cycles. Rated AC voltage of 277V compatible with varied electrical environments.

Made in Italy to high quality standards.
