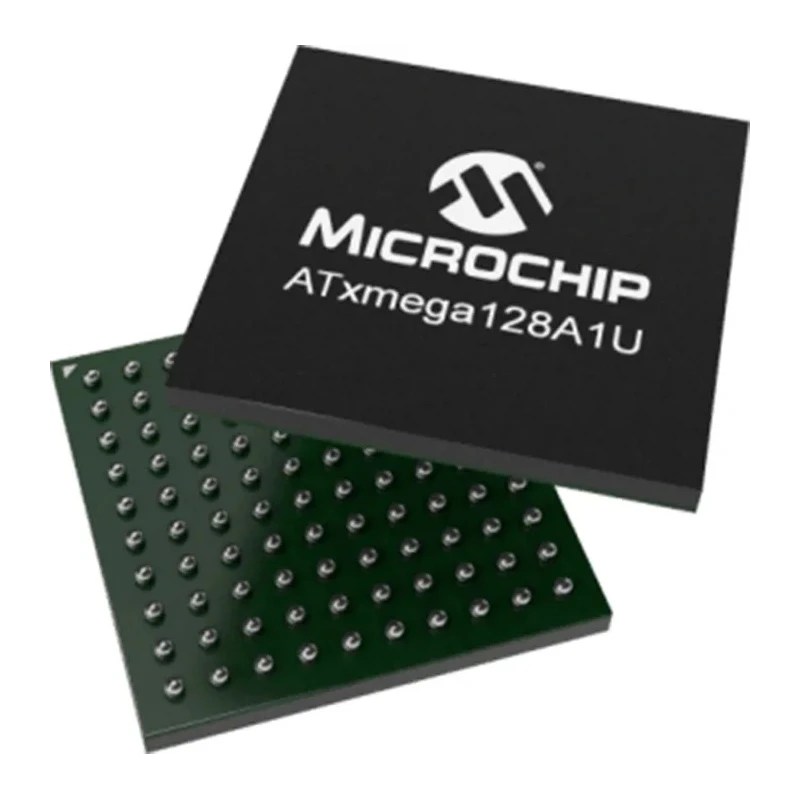

Microchip 16 bit AVR ATmega Microcontroller 32 MHz 128kB FLASH 100-Pin VFBGA ATXMEGA128A1U-C7U
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Microchip |
| Height | 800μm |
| Length | 7.1mm |
| Model | ATXMEGA128A1U-C7U |
| Width | 7.1mm |
| Mount Type | Surface |
| Series | Atmega |
| Maximum Operating Temperature | 85°C |
| Package Type | VFBGA |
| Minimum Operating Temperature | -40°C |
| Ram size | 8bit |
| Interface Type | USB, USART, TWI, SPI, PDI |
| Standards/Approvals | RoHS |
| Pin Count | 100 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.6V |
| Device Core | AVR |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 78 |
| Analogue Comparators | 4 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- High performance 16-bit AVR microcontroller operating at 32 MHz.
- 128 kB in-system self-programmable flash memory.
- Equipped with 78 programmable I/Os for versatile interfacing.
- Includes 4 analog comparators and 16 ADC channels with 12-bit resolution.
- Supports interfaces including USB, USART, TWI, SPI, and PDI.
- Compact 100-pin VFBGA surface mount package measuring 7.1mm x 7.1mm.
- Operating voltage range from 1.6 V to 3.6 V supports low power applications.
- Wide operating temperature range from -40°C to 85°C for industrial environments.
Product Description
Microchip ATXMEGA128A1U-C7U is a high-performance 16-bit AVR ATmega microcontroller running at a maximum clock frequency of 32 MHz with 128 kB of flash program memory and 8 kB of SRAM. This microcontroller features a 100-pin VFBGA package suitable for surface mounting, measuring 7.1 mm in length and width, and height of 800 μm.
Designed for advanced embedded system applications, it provides 78 programmable I/O pins, 2 x 12-bit DACs, 16 channels of 12-bit ADCs, 4 analog comparators, and a 4-channel DMA controller. It supports multiple serial interfaces including USB, USART, TWI, SPI, and PDI, enabling connectivity and flexible communication options.
The microcontroller operates on a low supply voltage range of 1.6 V to 3.6 V with a wide operating temperature range from -40 °C up to 85 °C, making it suitable for industrial and automotive applications. The device architecture follows a RISC instruction set providing efficient and high-speed performance up to 32 MIPS throughput.
Applications include building automation, industrial motor control, factory automation, HVAC systems, networking equipment, metering devices, optical and medical instruments, power tools, and large home appliances. It is compliant with RoHS guidelines and adheres to ISO/TS 16949 automotive standards ensuring reliability in critical environments.
This microcontroller includes 8 kB SRAM and 2 kB EEPROM for data storage and supports internal flash programming. The device's compact footprint and extensive peripheral set make it ideal for embedded design projects requiring high integration density and low power consumption.
High performance with 32 MHz maximum clock speed. Versatile interface options for connectivity. Wide temperature and voltage range for industrial use. Comprehensive analog and digital peripherals. Compliant with industrial and automotive standards.
Explore the full range of Microchip Microcontrollers and related embedded system products on EnvMart for industrial, automotive, commercial, and consumer applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATXMEGA128A1U-C7U microcontroller operates at a maximum clock frequency of 32 MHz.
It features 128 kB of in-system self-programmable flash memory for program storage.
This model is equipped with 78 programmable I/O pins for versatile interfacing.
It supports multiple interfaces including USB, USART, TWI, SPI, and PDI.
The operating voltage range is from 1.6 V to 3.6 V, suitable for low power applications.
The microcontroller comes in a 100-pin VFBGA package measuring 7.1 mm x 7.1 mm with a height of 800 μm.
It can operate within a wide temperature range from -40°C to 85°C, making it suitable for industrial environments.
This model includes 16 channels of 12-bit ADCs for analog-to-digital conversion.
It is equipped with 4 analog comparators for various applications.
It adheres to ISO/TS 16949 automotive standards, ensuring reliability in critical environments.
The device architecture follows a RISC instruction set, providing efficient performance.
It includes 8 kB of SRAM and 2 kB of EEPROM for data storage.
