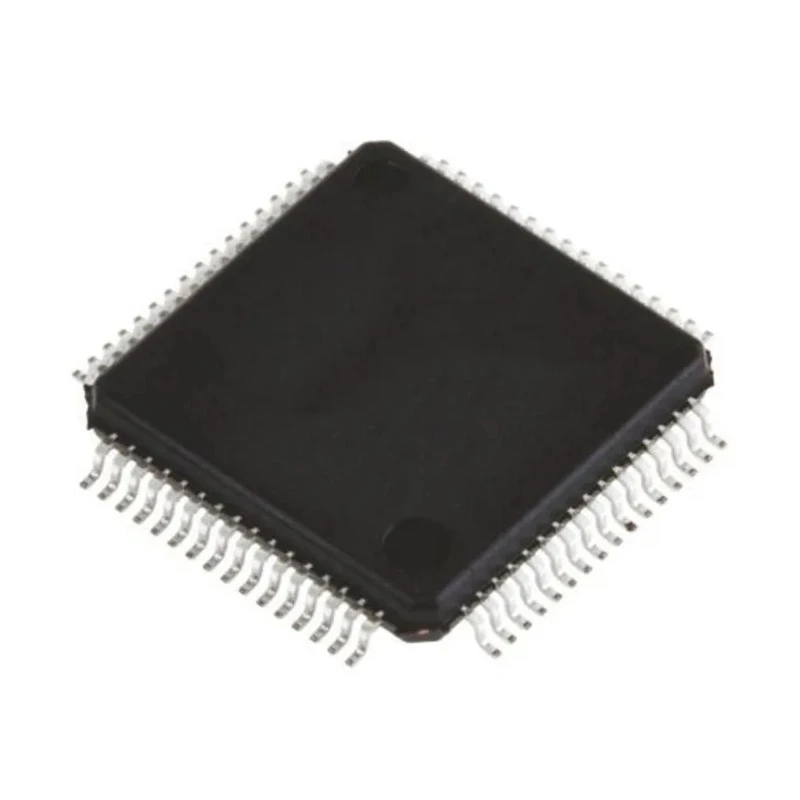

Microchip 8 bit AVR AT90CAN128 Microcontroller 16 MHz 128kB FLASH 64-Pin QFN AT90CAN128-16AU

Microchip AT90CAN128-16AU is a high-performance, low-power 8-bit AVR RISC-based microcontroller designed for a range of embedded applications requiring precise and efficient control. Operating at a maximum clock frequency of 16 MHz, it combines 128kB of non-volatile FLASH memory with 4kB EEPROM and 4kB SRAM, facilitating extensive program storage alongside reliable data retention.

This microcontroller features a robust architecture with 53 programmable general-purpose I/O pins, supporting versatile hardware interfacing. It incorporates multiple communication interfaces including USART and SPI for seamless integration into complex system designs. The device includes eight 10-bit analog-to-digital converters (ADC) with optional differential input stages and programmable gain, suitable for accurate analog signal processing tasks.

Equipped with three flexible timer/counters with compare modes and PWM capabilities, and a programmable watchdog timer featuring an internal oscillator, the AT90CAN128-16AU supports sophisticated timing and safety functionalities necessary in industrial, automotive, and consumer applications.

Packaged in a compact 64-pin QFN surface-mount form factor measuring 9.1mm by 9.1mm with a height of 950μm, this microcontroller suits space-constrained designs. Its wide operating temperature range from -40°C up to 85°C ensures reliability in harsh environments.

Designed with environmental compliance in mind, the device meets RoHS standards, making it suitable for green manufacturing requirements. The device’s ability to operate between 2.7V minimum and 5.5V maximum supply voltages offers flexibility for varied power sources.

This microcontroller is widely applicable across embedded systems in automotive controls, industrial automation, instrumentation, and communication devices, providing powerful processing and integration features while ensuring low power consumption.

The device incorporates an advanced 8-bit AVR RISC architecture for efficient processing. It includes 4kB EEPROM and 4kB SRAM memory for versatile application needs. Features 53 general-purpose programmable I/O lines enabling extensive interfacing.

Supports USART and SPI interface types for flexible communications. Includes 8 channels of 10-bit ADC with optional differential input and programmable gain. Provides three timers and a programmable watchdog timer with internal oscillator.

Compliant with RoHS standards ensuring environmental compatibility. Operates within a voltage range of 2.7V to maximum 5.5V supply voltage. Designed with a 64-pin QFN surface mount package with compact dimensions of 9.1mm x 9.1mm x 950µm height.

Operates reliably across industrial temperature range from -40°C to 85°C. Explore the Microchip Microcontroller range on EnvMart to find high-quality, reliable solutions for your embedded system designs.
