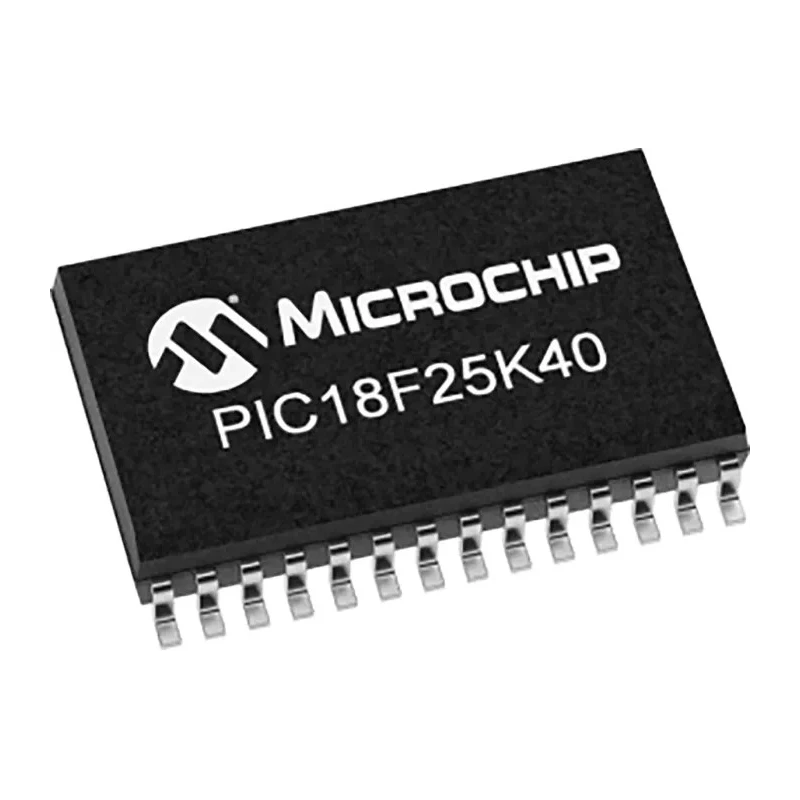

Microchip 8-bit PIC Microcontroller 64 MHz 32kB FLASH 28-Pin SSOP PIC18F25K40-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.85mm |
| Operating Voltage Range | - F Version (2.3V - 5.5V)- Low Power LF variant (1.8V - 3.6V) |
| Temperature range | - Industrial Version (-40C to 85C)- Extended Version (-40C to 125C) |
| Length | 10.5mm |
| Model | PIC18F25K40-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | EUSART, I2C, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- This microcontroller offers 2kB RAM and a data bus width of 8 bits.
- It supports interfaces including EUSART, I2C, and SPI for versatile communication.
- Operating voltage ranges from a minimum of 2.3V up to a maximum of 5.5V, with 800mW maximum power dissipation.
- Includes 25 programmable I/O pins, one 5-bit DAC, 24 channels of 10-bit ADC, and two analog comparators.
- Designed to operate reliably within industrial temperature ranges from -40°C to 85°C with RoHS compliance.
- Package dimensions are approximately 10.5 mm length, 5.6 mm width, and 1.85 mm height for compact surface mount applications.
- Implements RISC architecture with 83 instructions and 31 stack levels for robust processing performance.
- Additional features include hardware capacitive voltage divider, zero-cross detection, and peripheral pin select for flexible design.
Product Description
Microchip PIC18F25K40-I/SS 8-bit PIC microcontroller combines a high performance 64 MHz PIC18 core with rich integrated peripherals suitable for a wide range of embedded applications.
This surface-mount device comes in a 28-pin SSOP package measuring 10.5 mm in length, 5.6 mm in width, and 1.85 mm in height, making it suitable for compact PCB layouts. Operating from 2.3V to 5.5V, it supports a maximum clock frequency of 64 MHz and dissipates up to 800 mW of power, enabling low power yet efficient computing.
The microcontroller features 32kB of flash program memory, 2kB of RAM, and includes 25 programmable I/O pins for versatile interfacing.
It integrates multiple analog and digital peripherals including a 24-channel 10-bit ADC, a 5-bit DAC, two analog comparators, hardware capacitive voltage divider, zero-cross detection, and supports EUSART, SPI, and I2C communications.
Designed to meet industrial standards with operating temperature range of -40°C to 85°C and automotive standard AEC-Q100 certification, it ensures robustness and reliability in embedded system applications.
This microcontroller supports RISC architecture with 83 instructions and 31 stack levels for efficient program execution. The integrated Core Independent Peripherals such as CWG, WWDT, CRC/Memory Scan, and Peripheral Pin Select reduce software overhead and increase design flexibility.
The device complies with RoHS and is suitable for applications in industrial controls, automotive, consumer electronics, and embedded computing. Overall, the Microchip PIC18F25K40-I/SS provides a powerful and compact microcontroller solution for varied general-purpose embedded system designs.
Explore additional Microcontroller options and solutions within the Microchip product portfolio on EnvMart for comprehensive embedded design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It operates within a voltage range of 2.3V to 5.5V.
This microcontroller features 25 programmable I/O pins.
The program memory size is 32kB of FLASH.
It supports EUSART, I2C, and SPI communication interfaces.
The operating temperature range is from -40°C to 85°C.
The package dimensions are approximately 10.5 mm in length, 5.6 mm in width, and 1.85 mm in height.
It has a maximum power dissipation of 800 mW.
It implements RISC architecture with 83 instructions and 31 stack levels.
The RAM size is 2kB.
Yes, it complies with RoHS and meets the automotive standard AEC-Q100.
