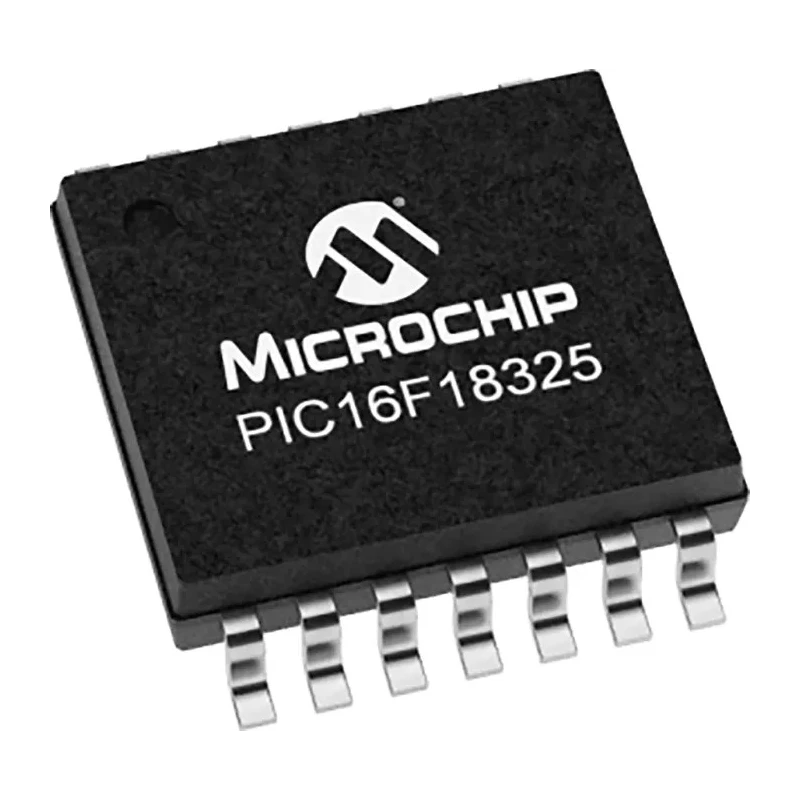

Microchip 8 Bit PIC Microcontroller 14kB FLASH 32 MHz, 14-Pin TSSOP PIC16F18325-I/ST
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | PIC16F18325-I/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Equipped with an 8-bit PIC core for a wide range of embedded applications.
- Flash program memory size of 14kB with self read/write capability.
- Operates at a maximum clock frequency of 32 MHz for fast processing.
- Includes 1kB RAM and 256B EEPROM for data storage.
- Comes in a 14-pin TSSOP surface-mount package suitable for compact designs.
- Features 12 programmable I/Os and 11-channel 10-bit ADC for diverse interfacing options.
- Supports operation in temperature range from -40°C to 85°C.
- Includes advanced peripherals like 2x 8-bit timers, DAC, comparators, and PWMs.
Product Description
Microchip PIC16F18325-I/ST is an 8 bit PIC microcontroller featuring advanced core independent peripherals and a 14kB flash program memory. It operates at a maximum clock frequency of 32 MHz, providing efficient performance for a wide range of embedded and low power applications.
This microcontroller includes a versatile set of features such as 12 programmable input/output pins, 11-channel 10-bit analog to digital converters (ADC), a 5-bit digital to analog converter (DAC), and 2 analog comparators. It uses a RISC instruction set architecture optimized for performance and efficiency.
The 14-pin TSSOP surface mount package offers a compact footprint suited to modern PCB designs. The device supports a broad operating voltage range from 2.3V up to 5.5V, making it compatible with many power supply systems while maintaining a low power dissipation of 800mW.
The microcontroller is designed for robust use in automotive and industrial environments with compliance to the AEC-Q100 standard and a wide temperature rating from -40°C to 85°C. Features such as extended watchdog timers, peripheral module disable (PMD), and power-on reset enhance reliability and control.
Typical use cases include industrial automation, embedded systems, sensor interfacing, control systems, and other low-power applications in commercial and automotive electronics. Equipped with an 8-bit PIC core for versatile embedded systems.
Offers 14kB flash memory with self read/write functionality. Supports up to 32 MHz system clock speed for high throughput. Includes 1kB RAM and EEPROM for efficient data management. Features multiple timers, analog peripherals, and PWMs for precise control.
Compact 14-pin TSSOP package for space-saving PCB layouts. Wide supply voltage and temperature range for flexible applications. AEC-Q100 qualification ensures automotive-grade reliability. RoHS compliant and environmentally responsible design.
Explore the extensive range of Microchip Microcontrollers available on EnvMart for diverse industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz, allowing for efficient processing in embedded applications.
This unit operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
It includes 12 programmable input/output pins, providing flexibility for interfacing with different components.
This model comes in a 14-pin TSSOP surface-mount package, which is ideal for compact PCB designs.
The PIC16F18325-I/ST has a RAM size of 1kB for efficient data management during operation.
The maximum supply voltage for this model is 5.5V, allowing compatibility with various power supply systems.
It complies with the AEC-Q100 standard, ensuring reliability for automotive applications.
The height of this microcontroller is 1.05mm, contributing to its compact design.
The minimum operating voltage for this model is 2.3V, allowing for low-power applications.
