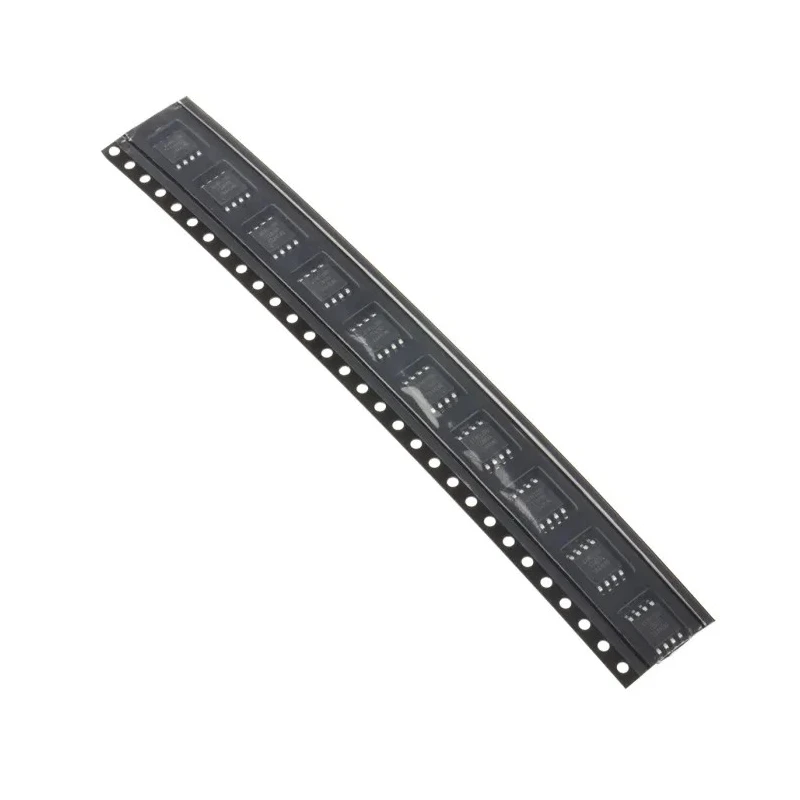

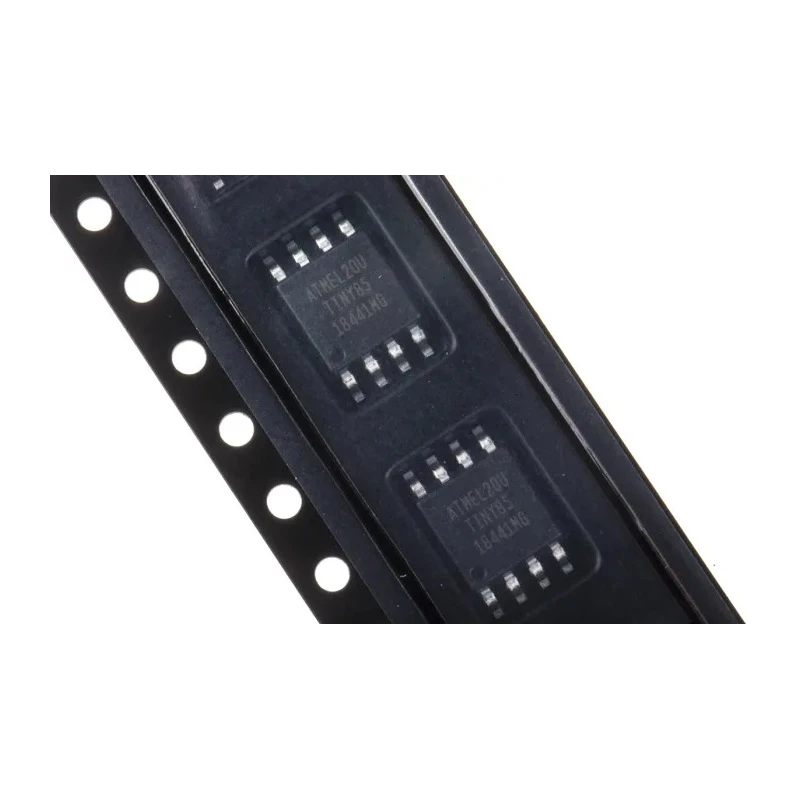

Microchip 8-bit AVR ATTINY85 Microcontroller 20 MHz 8kB Flash 8-Pin SOIJ ATTINY85-20SUR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.91mm |
| Length | 5.35mm |
| Model | ATTINY85-20SUR |
| Width | 5.4mm |
| Mount Type | Surface |
| Series | ATTINY85 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIJ |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | SPI |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Device Core | AVR |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 6 |
| Analogue Comparators | 1 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features an AVR RISC architecture for efficient processing.
- Operates within a voltage range of 2.7 V to 5.5 V.
- Includes 512 bits of SRAM and 512 bytes of EEPROM memory.
- Supports SPI interface for peripheral communication.
- Includes four 10-bit ADC channels and one analog comparator.
- Two 8-bit timers with PWM capabilities are available.
- Suitable for low power applications with fully static operation.
- Operating temperature ranges from -40°C to 85°C.
Product Description
Microchip ATTINY85-20SUR is a high-performance 8-bit AVR microcontroller featuring a 20 MHz maximum clock frequency and 8 kB flash program memory. Packaged in an 8-pin SOIJ surface mount, this microcontroller is based on AVR RISC architecture, enabling efficient instruction execution for optimized power consumption and processing speed.
It supports a SPI interface and includes 512 bits of SRAM and 512 bytes of EEPROM for versatile memory management. The device possesses four 10-bit analog-to-digital converter channels and one analog comparator, enhancing its suitability for complex sensor interfacing and control applications.
The microcontroller contains two 8-bit timers, one with a separate prescaler and two PWM channels, suitable for precise timing operations and waveform generation. Its operating voltage ranges from 2.7 V to 5.5 V, and it operates reliably across a broad temperature range of -40°C to 85°C, making it robust for diverse environments.
Its fully static operation ensures low power consumption, ideal for battery-powered applications. Physical dimensions are compact, with a length of 5.35 mm, width of 5.4 mm, and height of 1.91 mm, enabling dense system designs.
This microcontroller is extensively used in consumer appliances, home automation systems, and industrial equipment where efficient, compact control systems are required. Features an AVR RISC architecture for efficient processing.
Operates within a voltage range of 2.7 V to 5.5 V. Includes 512 bits of SRAM and 512 bytes of EEPROM memory. Supports SPI interface for peripheral communication. Includes four 10-bit ADC channels and one analog comparator.
Two 8-bit timers with PWM capabilities are available. Suitable for low power applications with fully static operation. Operating temperature ranges from -40°C to 85°C. Compact physical dimensions: 5.35 mm length, 5.4 mm width, and 1.91 mm height.
Ideal for consumer electronics, home automation, and industrial control systems. Explore Microchip Microcontrollers and other semiconductor products with EnvMart for reliable and advanced embedded system components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 20 MHz.
It operates within a voltage range of 2.7 V to 5.5 V.
This microcontroller features 8 kB of flash program memory.
It supports an SPI interface for peripheral communication.
The operating temperature ranges from -40°C to 85°C.
It includes four 10-bit analog-to-digital converter channels.
The dimensions are 5.35 mm in length, 5.4 mm in width, and 1.91 mm in height.
This model contains two 8-bit timers with PWM capabilities.
It includes 512 bits of SRAM and 512 bytes of EEPROM memory.
It is packaged in an 8-pin SOIJ surface mount.
The microcontroller is based on AVR RISC architecture, which allows for efficient instruction execution.
It has 6 programmable I/Os.
