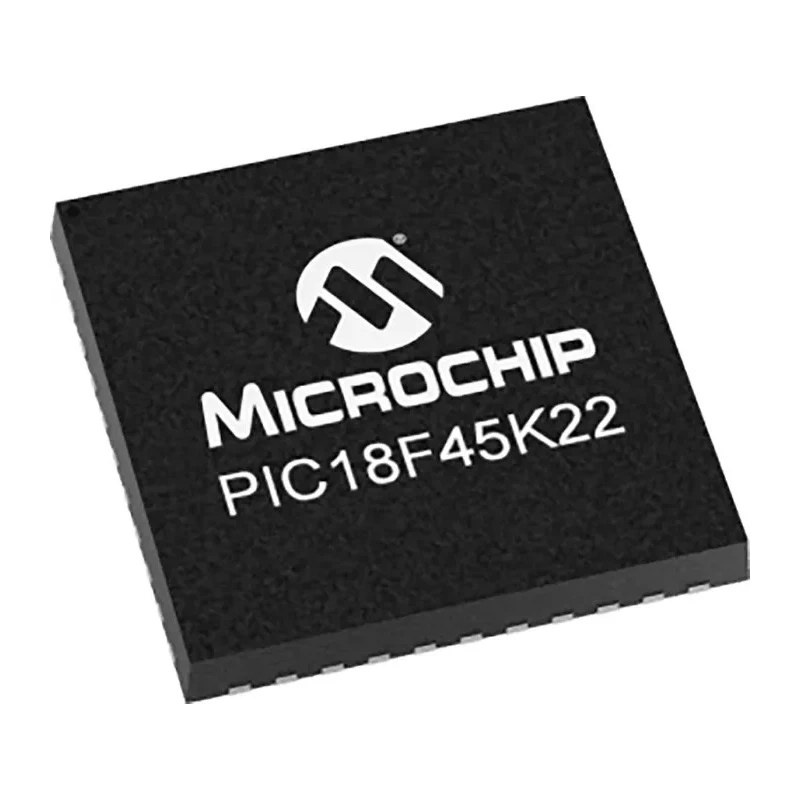

Microchip PIC18F45K22-I/MV 8-bit PIC Microcontroller 64 MHz 32kB FLASH 40-Pin UQFN

Microchip PIC18F45K22-I/MV is an 8-bit PIC microcontroller designed for demanding industrial and commercial applications requiring reliable high-speed processing and low power consumption.

Featuring a 64 MHz maximum clock frequency and 32kB FLASH program memory, this microcontroller delivers efficient performance with a refined RISC instruction set optimized for C Compiler code generation.

It incorporates 1.54kB of RAM and 40 programmable I/O pins, making it suitable for complex control tasks and interfacing requirements in embedded systems.

The device supports a supply voltage range from 1.8V to 5.5V, making it adaptable to multiple power environments with a maximum power dissipation of 800mW, ensuring reliable operation under various conditions.

For analog interfacing, it includes 30 channels of 10-bit ADC and 2 analogue comparators, along with 5-bit DAC modules, allowing precise measurement and signal control in sensor applications.

Communication capabilities feature asynchronous USART supporting protocols such as RS-232, RS-485, and LIN 2.0 with auto-baud detection and auto wake-up on start bit. The compact 40-Pin UQFN package measures 5 mm by 5 mm with a thickness of 500 micrometers, facilitating space-constrained circuit board designs.

Designed for use in industrial, automotive (non-automotive standard compliant), consumer electronics, and embedded control systems, this microcontroller is RoHS compliant and manufactured in the United States.

This microcontroller is based on a high performance RISC CPU optimized for C Compiler usage. It has a data bus width of 8 bits with 1.54kB RAM for efficient processing. Operates within a voltage range of 1.8V to 5.5V for flexible power supply options.

Includes 30 channels of 10-bit ADCs and 2 analogue comparators for precise analog signal handling. Features 5-bit DACs and supports up to 40 programmable I/Os for versatile interfacing. The microcontroller is suited for power sensitive and high performance applications.

It has a maximum power dissipation of 800mW and operates from -40°C up to 85°C. The package size measures 5 mm by 5 mm with a height of 500 micrometers. The device supports asynchronous communication protocols including RS-232, RS-485 and LIN 2.0.

This product is RoHS compliant and made in the United States. Explore a wide range of Microcontrollers and semiconductor solutions on EnvMart for your embedded design and industrial automation requirements.
