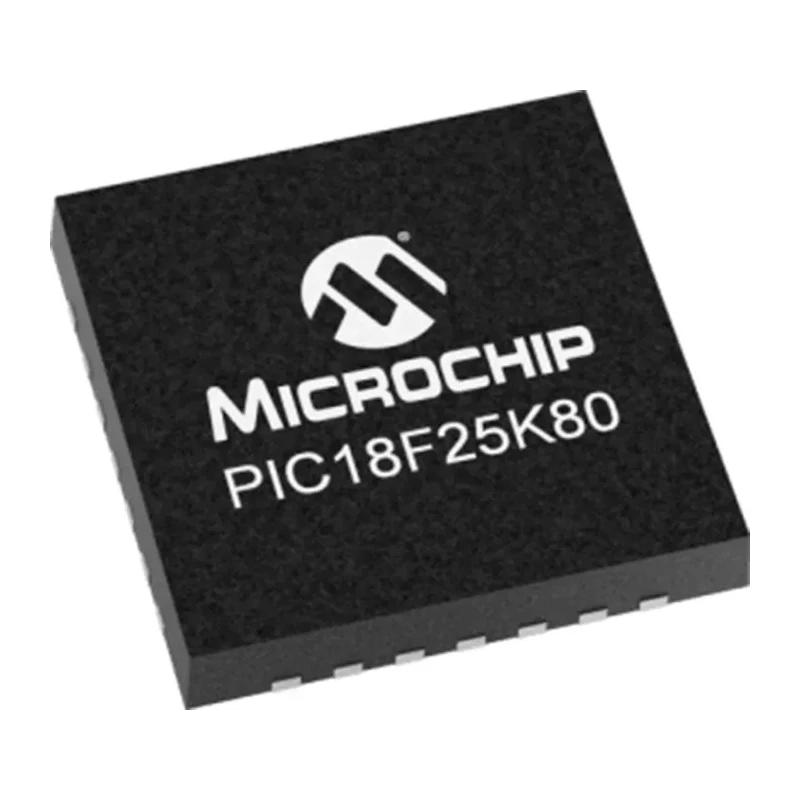

Microchip 8 bit PIC18F Microcontroller 64 MHz 32kB FLASH 28-Pin QFN PIC18F25K80-E/MM
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 6mm |
| Model | PIC18F25K80-E/MM |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.65kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 24 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | Harvard |
| ADCs | 8 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- High performance 8-bit MCU with PIC core architecture.
- 64 MHz maximum clock frequency for fast processing.
- 32kB FLASH program memory with self-programming capability.
- Supports 1.8V to 5.5V operating voltage range.
- 28-Pin QFN surface mount package for compact design.
- Includes 24 programmable I/Os and 3.65kB RAM.
- Equipped with 8 channels of 12-bit ADCs for analog interfacing.
- Integrated ECAN™ module compliant with CAN 2.0B standard.
Product Description
Microchip PIC18F25K80-E/MM is a high performance 8-bit PIC microcontroller designed for automotive, industrial, building control, and elevator applications. Featuring a Harvard architecture and a powerful 64 MHz clock speed, this MCU provides robust digital control with an extensive set of integrated peripherals suitable for complex embedded systems.
The device includes 32kB of FLASH memory with self-programming support that sustains 10,000 erase/write cycles and 20 years data retention. It operates over a wide voltage range of 1.8V to 5.5V and offers a low power consumption profile with a 20 nA sleep mode, making it ideal for battery-powered and energy-sensitive applications.
The PIC18F25K80-E/MM comes in a compact 28-Pin QFN surface mount package with dimensions of 6mm x 6mm, height 950μm, supporting 24 programmable digital I/Os and 3.65kB of RAM. It integrates eight 12-bit analog-to-digital converters (ADCs), two analog comparators, and several timer modules for precise timing and control tasks.
Its enhanced features include an integrated ECAN™ module in compliance with CAN 2.0B for automotive communication systems, Charge Time Measurement Unit (CTMU) for touch and advanced sensing applications, two enhanced USART modules, and SPI/I2C serial communication interfaces. The device meets automotive AEC-Q100 standards ensuring reliability in harsh environments.
High performance 8-bit PIC MCU with Harvard architecture. 64 MHz maximum clock speed enabling fast execution. 32kB FLASH program memory with 10k erase/write cycles. Low power consumption with 20 nA sleep mode and 300 nA watchdog timer in sleep.
Wide operating voltage range of 1.8V to 5.5V suitable for automotive systems. 24 programmable I/Os and 3.65kB RAM for flexible application design. 8 channels of 12-bit ADCs for accurate analog measurements. Integrated ECAN™ module compatible with CAN 2.0B active standard.
28-Pin QFN surface mount package (6mm x 6mm, 950μm height) for compact footprint. Automotive standard AEC-Q100 qualified for demanding environments.
The product is manufactured in Thailand adhering to RoHS compliance. This microcontroller is suitable for applications in automotive electronics, industrial controls, building automation, and elevator control systems. Its combination of speed, power efficiency, and advanced peripherals makes it an excellent choice for embedded system development.
Explore the full range of Microchip Microcontrollers and embedded solutions in the EnvMart catalog to find compatible components and development tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz, enabling fast processing capabilities.
It supports an operating voltage range of 1.8V to 5.5V, making it suitable for various applications including automotive systems.
This model features 32kB of FLASH program memory, which includes self-programming capability.
The microcontroller comes in a compact 28-Pin QFN package with dimensions of 6mm x 6mm and a height of 950μm.
It provides 24 programmable digital I/Os for flexible application design.
This microcontroller is equipped with eight 12-bit analog-to-digital converters (ADCs) for accurate analog interfacing.
It meets the automotive AEC-Q100 standard, ensuring reliability in harsh environments.
The maximum power dissipation for this model is 800mW.
The operating temperature range is from -40°C to 125°C, suitable for a variety of applications.
It supports multiple communication interfaces including two enhanced USART modules and SPI/I2C serial communication interfaces.
This microcontroller includes 3.65kB of RAM for data storage and processing needs.
The PIC18F25K80-E/MM is manufactured in Thailand and adheres to RoHS compliance standards.
