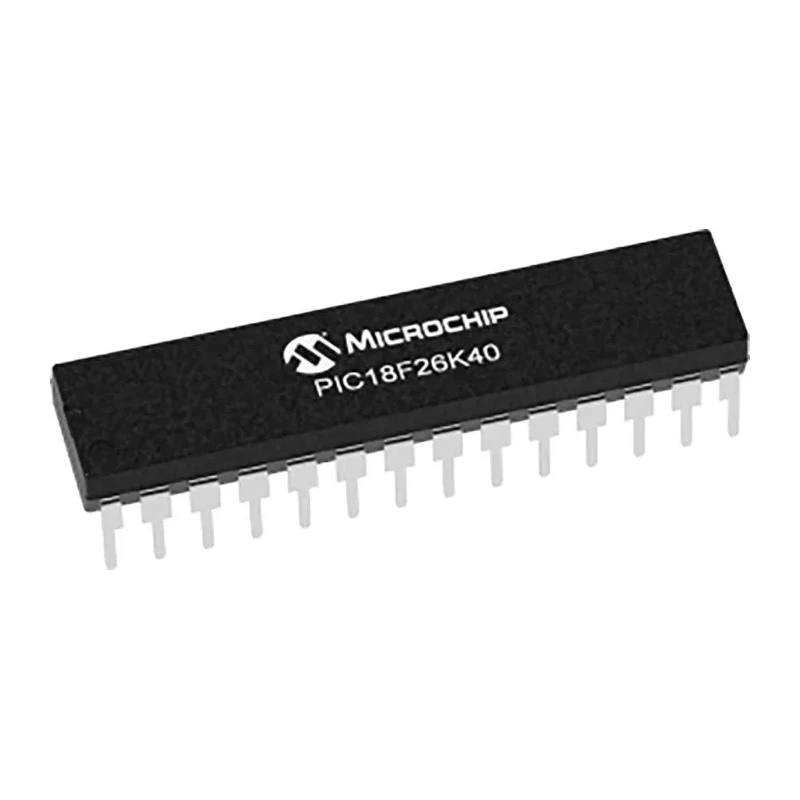

Microchip 8 bit PIC PIC18F Microcontroller 64 MHz 64kB FLASH 28-Pin SPDIP PIC18F26K40-I/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Operating Voltage Range | - F Version (2.3V - 5.5V)- Low Power LF variant (1.8V - 3.6V) |
| Temperature range | - Industrial Version (-40C to 85C)- Extended Version (-40C to 125C) |
| Length | 35.56mm |
| Model | PIC18F26K40-I/SP |
| Width | 7.37mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.62kB |
| Interface Type | EUSART, SPI, I2C |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 28 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- This microcontroller supports multiple communication interfaces including EUSART, SPI, and I2C.
- It features 3.62kB RAM for data storage and 24 channels of 10-bit ADC.
- The device delivers a maximum clock frequency of 64 MHz and operates within 2.3 to 5.5 V supply voltage.
- Includes peripherals like 1 x 5-bit DAC, 2 analogue comparators, hardware capacitive voltage divider, and zero-cross detection.
- Designed for industrial temperature ranges from -40°C to 85°C ensuring reliable performance.
- Utilizes a RISC instruction set architecture with 28 programmable I/O pins.
- Supports automotive standard AEC-Q100 for quality assurance.
Product Description
Microchip PIC18F26K40-I/SP is a sophisticated 8 bit PIC microcontroller designed for diverse industrial and embedded applications. Operating at 64 MHz with a large 64kB FLASH program memory, it ensures efficient processing and ample memory for complex firmware implementations. Packaged in a compact 28-pin SPDIP form factor, this device is suitable for through-hole mounting systems.
This microcontroller includes a 3.62kB RAM and 24 channels of 10-bit ADCs for precise analog input conversions. Communication interfaces such as EUSART, SPI, and I2C provide flexibility for connectivity requirements in embedded system designs.
Equipped with additional analog functionality like 1 x 5-bit DAC, dual analog comparators, fixed voltage reference outputs, and a hardware capacitive voltage divider for mTouch capacitive sensing, it enables enhanced peripheral integration for sensor interfacing and signal processing.
Its maximum power dissipation of 800 mW and operating voltage range of 2.3 V to 5.5 V offers design versatility for low power and high reliability applications. The industrial temperature rating from -40°C to 85°C supports deployment in harsh environments.
Supports PIC18 Core with 83 instructions and 31 stack levels for flexible program control.
Includes core independent peripherals like Complementary Waveform Generator (CWG), Windowed Watchdog Timer (WWDT), cyclic redundancy check, and zero-cross detection, reducing CPU load and improving system stability.
Automotive-grade AEC-Q100 certification confirms suitability for automotive embedded systems. Through hole SPDIP package dimensions are 35.56 mm length, 7.37 mm width, and 3.81 mm height. Applications span industrial control, automotive systems, consumer electronics, and embedded device development.
This Microchip PIC18F microcontroller supports firmware development with Microchip's comprehensive toolchain and ecosystem, enhancing prototyping and production efficiency. Explore a wide selection of semiconductor products and Microcontrollers at EnvMart for reliable industrial and research electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It operates within a voltage range of 2.3 to 5.5 V.
This microcontroller features 64 kB of FLASH program memory.
It supports multiple communication interfaces including EUSART, SPI, and I2C.
The PIC18F26K40-I/SP includes 3.62 kB of RAM for data storage.
The package dimensions are 35.56 mm in length, 7.37 mm in width, and 3.81 mm in height.
It operates within an industrial temperature range of -40°C to 85°C.
This model features 24 channels of 10-bit ADC for precise analog input conversions.
The maximum power dissipation is 800 mW.
It has 28 programmable I/O pins.
It complies with the automotive standard AEC-Q100 for quality assurance.
