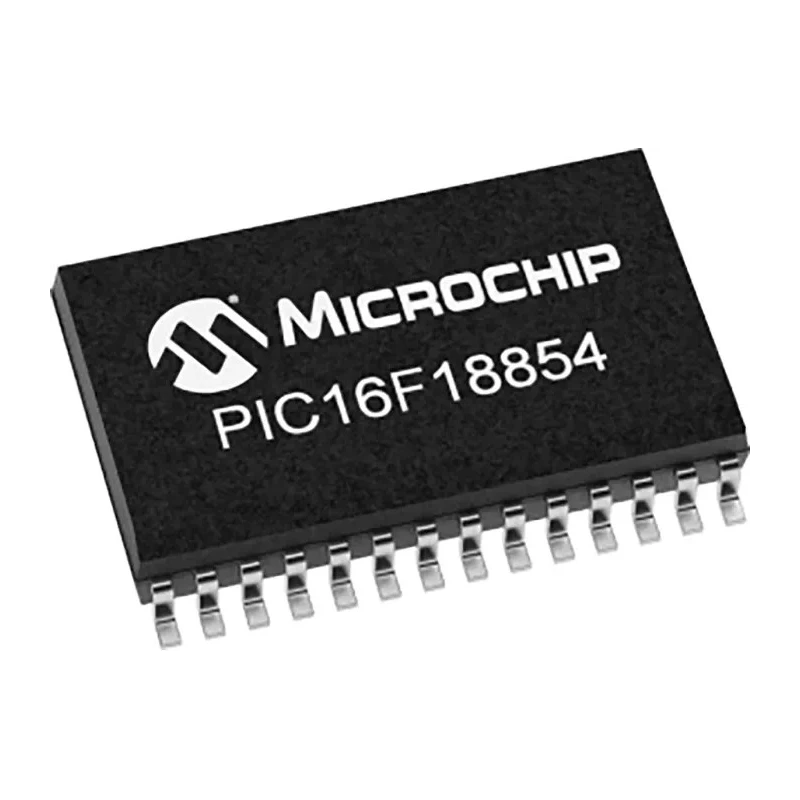

Microchip 8-bit PIC16F Microcontroller 7kB FLASH 32 MHz 28-Pin SSOP PIC16F18854-I/SS

Microchip PIC16F18854-I/SS is an 8-bit PIC microcontroller optimized for general purpose and low power embedded system applications. It comes equipped with an enhanced mid-range core featuring 49 instructions and 16 stack levels, supporting efficient program execution.

This device integrates 7kB of FLASH program memory and 512 bits of RAM, enabling robust data processing capabilities. It operates up to 32 MHz, powered by an internal adjustable oscillator, and supports a supply voltage range from 2.3V to 5.5V, accommodating diverse power requirements.

The chip includes two 10-bit Analog-to-Digital Converters (ADCs), a 5-bit Digital-to-Analog Converter (DAC), and two analog comparators, enhancing its capabilities for signal acquisition and processing in industrial and automotive applications.

The 28-pin SSOP surface mount package offers 25 programmable I/O pins, making it suitable for compact PCB designs. Peripheral features comprise Complementary Waveform Generator (CWG), Numerically Controlled Oscillator (NCO), four Configurable Logic Controllers (CLC), Cyclical Redundancy Check (CRC), and Peripheral Pin Select (PPS), providing flexible hardware control options.

Designed with advanced protective features such as a Windowed Watchdog Timer (WWDT), Low-Power Brown-Out Reset (LPBOR), and Programmable Brown-Out Reset (BOR), it ensures system reliability under varied operating conditions.

Operating temperature ranges from -40°C to 85°C, complying with the Automotive Electronics Council AEC-Q100 standard, qualifying it for automotive-grade applications requiring high reliability.

Typical use cases include industrial control systems, automotive electronics, instrumentation, and consumer electronics requiring efficient, low power, and reliable microcontroller solutions.

The product is RoHS compliant, reflecting adherence to environmental safety standards. Explore further Microchip microcontroller options in the Microchip catalog at EnvMart for tailored embedded solutions. Features an enhanced mid-range PIC16F core with 49 instruction sets and 16 stack levels.

Integrates 7kB of FLASH program memory and 512-bit RAM for efficient data handling. Operates at a maximum clock frequency of 32 MHz with a supply voltage range from 2.3V to 5.5V. Includes two 10-bit ADCs, one 5-bit DAC, and multiple analog comparators for precise signal processing.

Has 28 pins in an SSOP surface mount package, supporting 25 programmable I/Os. Equipped with advanced peripherals like Complementary Waveform Generator, Cyclical Redundancy Check, and Peripheral Pin Select. Operates reliably in temperatures ranging from -40°C to 85°C, meeting AEC-Q100 automotive standard.

Low power consumption via eXtreme Low Power (XLP) technology for battery-operated devices. Includes peripheral features such as windowed watchdog timer, brown-out reset, and in-circuit serial programming. Discover ideal Microcontrollers for your embedded project needs at EnvMart.
