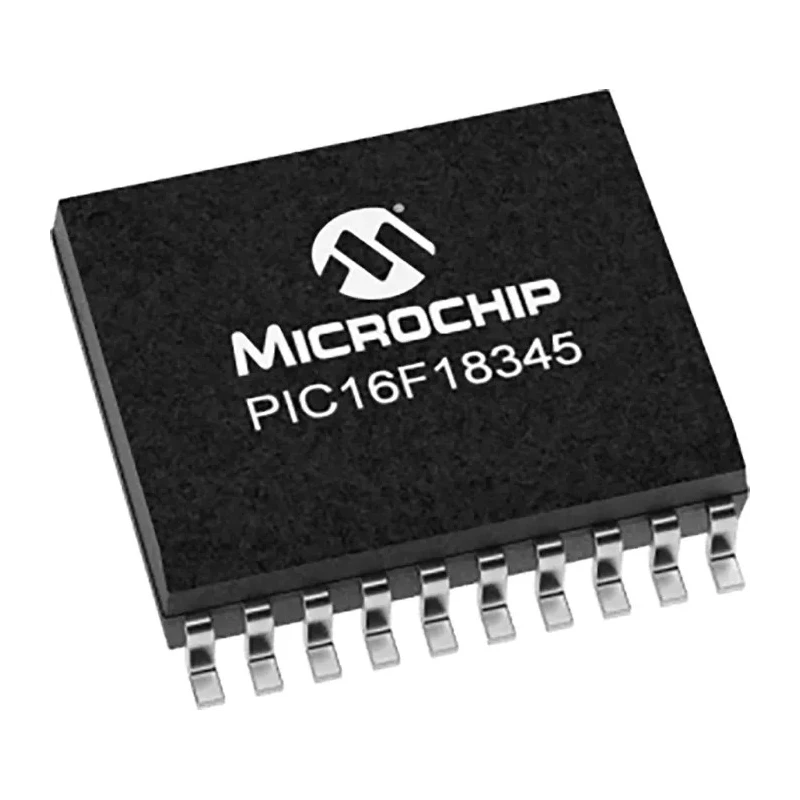

Microchip 8 bit PIC Microcontroller PIC16F18345-I/SO, 32 MHz Clock, 14kB FLASH Memory, 20-Pin SOIC Package

Microchip PIC16F18345-I/SO is an 8 bit PIC Microcontroller designed to deliver high performance combined with extreme low power (XLP) consumption. It operates with a maximum clock frequency of 32 MHz and features 14kB of FLASH program memory, enabling efficient embedded control applications. Enclosed in a 20-pin SOIC surface mount package, this microcontroller is suitable for compact electronics.

This device contains 1kB of RAM and 256 bytes of EEPROM memory for flexible data storage and system control. The mid-range core architecture supports 49 instruction sets and 16 stack levels, featuring extended instruction support for robust program management.

The PIC16F18345 microcontroller includes advanced peripherals such as peripheral pin select (PPS), an extended watchdog timer (WDT), low power IDLE and DOZE modes, and programmable brown-out reset (BOR). It provides 18 programmable input/output pins and supports 2 timers and multiple ADC channels (17 channels of 10-bit ADC), plus one 5-bit digital to analog converter (DAC).

Designed to function under a wide supply voltage range of 2.3V to 5.5V and across a temperature span from -40°C to 85°C, it is aimed at industrial, automotive, consumer, and general embedded applications. With its compact dimensions of 12.8 mm length, 7.5 mm width, and 2.35 mm height, the SOIC package facilitates easy integration into various PCB designs.

This microcontroller supports communication protocols including SPI, I2C, and enhanced USART, making it adaptable to embedded system networks. The automotive standard compliance is AEC-Q100, indicating reliability in automotive environments.

Enhanced mid-range core architecture with 49 instructions and 16 stack levels. 14kB flash program memory with self-read/write capability. 256 bytes EEPROM memory for non-volatile data storage. 17-channel 10-bit ADC and one 5-bit DAC for analog interfacing.

Operating voltage range from 2.3V to 5.5V ensuring broad compatibility. Low-power modes including IDLE and DOZE to reduce energy consumption. Extended watchdog timer for enhanced system reliability. Programmable brown-out reset and low-power brown-out reset for system stability.

Supports SPI, I2C, and enhanced USART communication protocols. AEC-Q100 automotive standard compliant for automotive applications.

Microchip products are widely used in industrial, automotive, consumer electronics, and embedded system markets. This PIC16F18345-I/SO microcontroller offers a broad feature set suitable for designers requiring low power consumption combined with versatile peripheral configurations. Browse additional Microchip Microcontrollers and integrated circuits in the EnvMart catalogue to discover complementary components and development tools.
