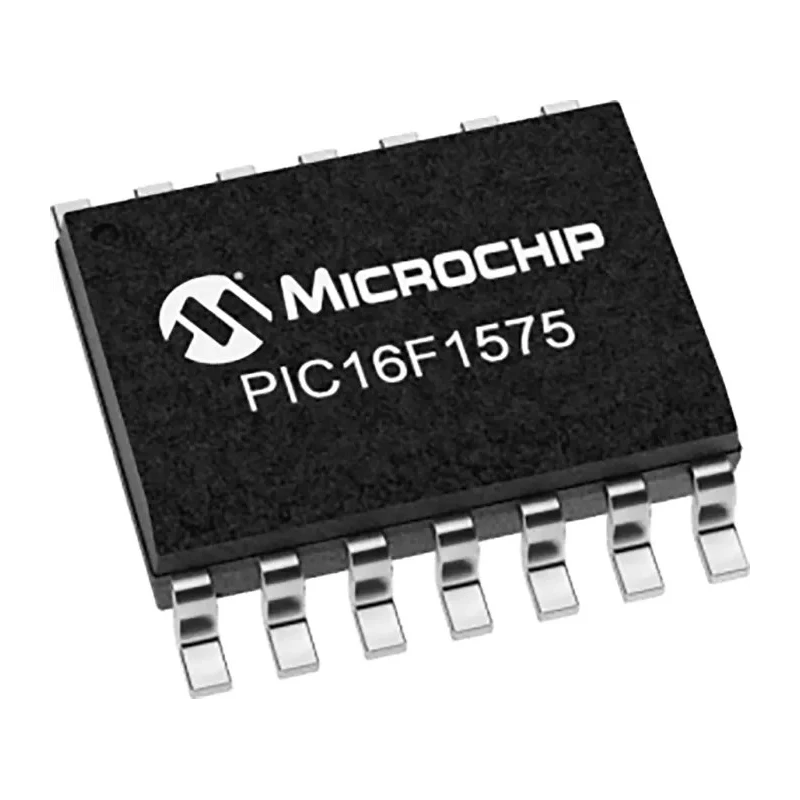

Microchip 8 bit PIC Microcontroller PIC16F1575-I/SL 32 MHz 14kB FLASH 14-Pin SOIC

Microchip PIC16F1575-I/SL is an advanced 8 bit PIC microcontroller designed to meet diverse industrial and automotive application demands. Featuring a high-performance core operating up to 32 MHz and 14kB of FLASH memory, this microcontroller delivers reliable processing power within a compact 14-pin SOIC surface mount package. It offers 12 programmable I/O pins along with multiple communication interfaces including LIN, UART, and USART, enabling flexible system integration.

The microcontroller provides 8 channel 10-bit ADCs, a 5-bit DAC, and two analog comparators, supporting precise signal measurement and control tasks. Four standalone 16-bit PWM modules and complementary waveform generator peripherals allow for fine-tuned control applications such as LED lighting, stepper motors, and power supplies.

Designed to conform to the automotive AEC-Q100 standard and with an operating temperature range from -40°C to 85°C, it ensures robust performance under demanding environmental conditions. Its RISC instruction set architecture and internal clock speeds as low as 31 kHz aid in power-efficient implementations.

Compact dimensions of 8.65 mm length, 3.9 mm width, and 1.5 mm height in a surface mount SOIC package make it suitable for space-constrained designs. The device supports a wide supply voltage range from 2.3V to a maximum of 5.5V with maximum power dissipation of 800 mW.

This microcontroller is ideally suited for industrial, automotive, electronics, and embedded systems applications demanding precise control, communication, and robust performance in a small form factor.

Operates with a maximum clock frequency of 32 MHz for high-speed processing. Features 14kB of FLASH program memory for flexible code storage. Equipped with 1kB RAM and 12 programmable I/O pins. Supports multiple interfaces including LIN, UART, and USART for versatile communication.

Includes 8 channel 10-bit ADCs and 1 x 5 bit DAC for analog signal processing. Provides 2 analog comparators and 4 standalone 16-bit PWMs for precise control applications. Designed for automotive grade with AEC-Q100 standard compliance.

Supports operating temperature range from -40°C to 85°C ensuring reliability in harsh environments. Compact SOIC surface mount package measuring 8.65 mm length, 3.9 mm width, and 1.5 mm height. Manufactured in Thailand with robust RISC architecture core for efficient instruction execution.
